Chongqing Huaxi Sanli Packaging Cutting Tool Co., Ltd.
China Manufacturer with main products: Cutting Rule, Steel Rule, Rule Die Steel, Clicking Die Steel, Shoe Knife, Leather Die Knife, Creasing Rule, Die Steel Rule |

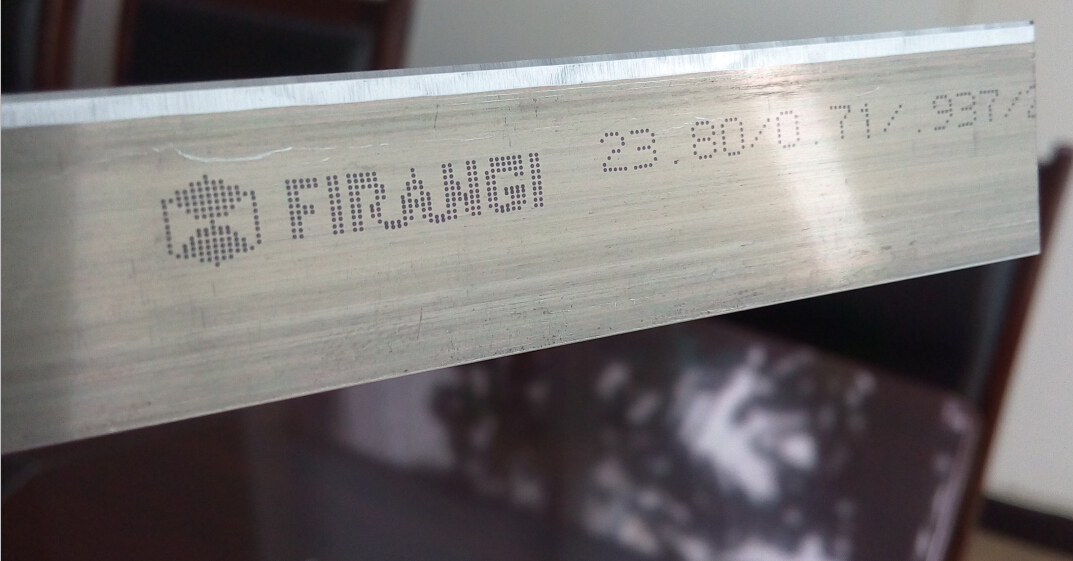

Cutting Rule 2PT/0.71 x 23.8 x 1000
| Supply Ability: | 1,000,000 Meter/Meters per Month |
|---|---|
| Shipping: | delivery time around 10 days, from any China port |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 100m/coil or 100pcs/box export package is by pallet (50 coils or 50 boxes/ pallet) |
Quick Details
- Model Number: FIRANGI 23.8 x 2PT
- Brand Name: FIRANGI
- materials: imported steel
- thickness: 0.71MM / 2PT
- height: 23.8MM, 23.6MM
- body hardness: HRC 36-38
- edge hardness: HRC 60
- edge hardening method: High Frequency Induction
- edge type: fine ground, extremely sharp
- edge angle: 42, 52
- edge form: CB / CF, LCB / CFDB
- packing: 100m
Specifications
? Raw Materials
Using the better imported steel as material, offer higher precision, tolorence of +-0.02mm
A perfect cutting rule starts from a superior material. Every FIRANGI CUTTING RULE is used the imported steel as material, which will offer the rules higher precision, helping users reduce the adjusting time for machine, also can reduce the machine's wear.
? Body Hardness
- HRC 37~39 (medium hard)
- HRC 40-45 (hard)
P.S. Most of customers feedback our rules are stronger than others, so more durable for others.
? Edge Hardness
HRC 60, HF hardening, black edge.
P.S. hardened by the technology of HF hardening, not fire hardening or laser hardening.
? Edge Hardening Method
High Frequency Induction by the ALO 192 machine from Sweden. This is the most advanced technology in the world, much better than fire hardening, laser hardening, makes the rule much more durable, meeting with the middle and large cutting demands.
? Cutting
Bevel
- Center Bevel (CB) / Center Face (CF)
- Long Center Bevel (LCB) / Center Face Double Bevel (CFDB)
- Side Bevel (SB) / Side Face (SF)
- Long Side Bevel (LSB) / Side Face Double Bevel (CFDB)
? Edge Type
- Shaved Edge, offering a very high degree of accuracy and edge straightness as well as excellent bending properties.
- Ground Edge, offering good cutting results because of the micro-teeth on the bevel. For materials like plastics, rubber and laminates the ground execution has proven its highest efficiency. The high sharpness and low friction reduce formation of dust and angel hairs. In comparison to the shaved execution, Ground Edge has a slightly reduced bendability.
? Edge
Angle
- 42 degree
- 52 degree
| size | coils | meter length |
| 0.53mm / 1.5pt | 140 meters/coil | 140 pcs/box |
| 0.71mm / 2pt | 100 meters/coil | 100 pcs/box |
| 1.05mm / 3pt | 70 meters/coil | 70 pcs/box |
| 1.42mm / 4pt | 50 meters/coil | 50 pcs/box |
Note: 762mm length is available, for those who no need 1 meter length, also more ceconomical.
? SANLI is regarded as the best rules making factory in the whole of China, quite famous with the real high quality and high cost performance. SANLI rules have been exported to U.S.A. Brazil, Guatemala, Turkey, Mauritius, Egypt, Japan, India, Thailand, Indonesia... and so many countries. No one feel unsatisfied after using it, you will also enjoy it.
