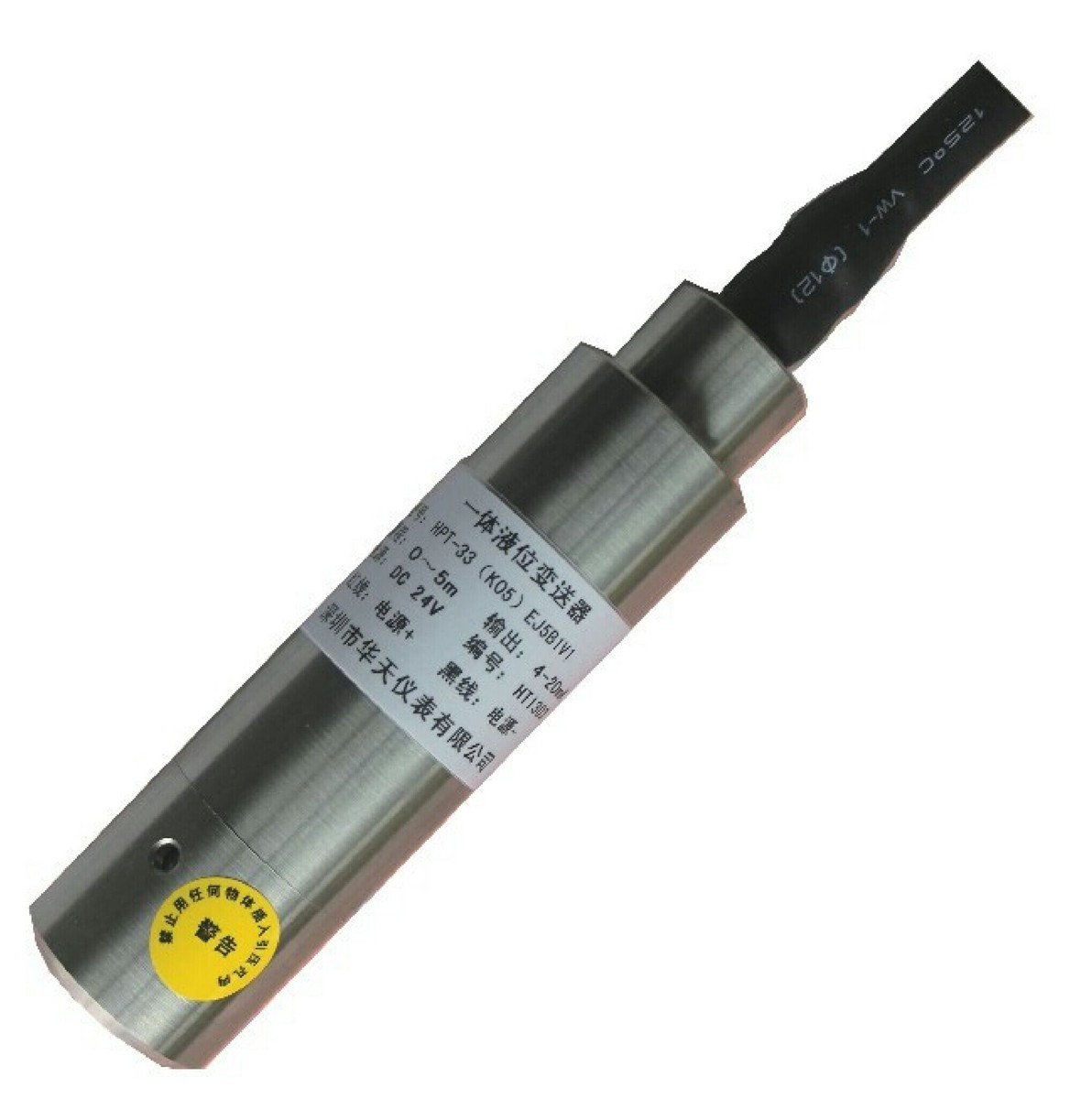

Integrated level transmitter HPT-33

Specifications

Features:
     Wide measuring range : 0～1～500m.
     High precision.
     Good stability: ≤0.2%FS.
     Wide working temperature: -20～85℃.
     Good corrosion resistance.
     Guide gas cable transmission.
    Three heavy lightning anti-interference design.
    Anti condensation process.
Applications:
  The oil industry, chemical industry,Electric power.
   Hydraulic pressure system,Pneumatic system.
   Energy and Water treatment system.
   Automation equipment.
   Industrial process control.

Performance parameters

Range(m)        :      0~500
Pressure mode     : Gauge Pressure, absolute pressure
Output signal       : 4～20mA or others
Nonlinearity(%FS) :   ≤0.1  ≤0.25   ≤0.5
Hysteresis(%FS)   :   ≤0.1  ≤0.25   ≤0.5
Repeatability(%FS):   ≤0.1  ≤0.25   ≤0.5
Zero drift (%FS/℃):  ≤0.02
Temperature drift(%FS)≤0.02
Stability (%FS/Year): ≤0.25
Working voltage(V)  : 12~36V DC(Standard: 24V)
Working temperature(℃): -20~85℃
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Load resistance (Ω): R=(U-12.5)/002-r
Response time (ms): ≤1
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L
Housing  material : 1Cr18Ni9Ti
Protection grade: IP68
Weight:120g
