Inox X-Tend Balustrade Infill Cable Mesh

Supply Ability:	200 Square Meter(s) per Week
Shipping:	By Air, By Express
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy, Other, PayPal

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Water-proof Cloth , Carton Box, Wooden case

Quick Details

Brand Name: Yuntong
Technique: Woven
Application: Protecting Mesh
Type: Rope Mesh
Material: Stainless Steel Wire
Model Number: YT-F1660
Wire Diameter: 1.5mm , 1.6mm
Weave Style: Plain Weave
Material: SUS304,316,316L
Cable Diameter: 1.5mm , 1.6mm
Mesh Opening: 60*60mm
Mesh Type: Ferruled
Mesh Orientaion: Horizontal , Vertical

Specifications

Range Considerations
X-TEND stainless steel mesh is custom manufactured to suit your balustrade, railing or barrier application.
A successful application involves careful consideration of the following options.

Mesh Size
Stainless steel cable diameters from 1mm (0.039 in.) to 3.2mm (0.126 in.) can be selected for the mesh material
in accordance with the desired level of lightness or strength.

Mesh Aperture/Width
Mesh apertures range from 25mm (1" ) to 300mm (12" ) and can be selected for aesthetics,
Climb ability and the preferred level of transparency.

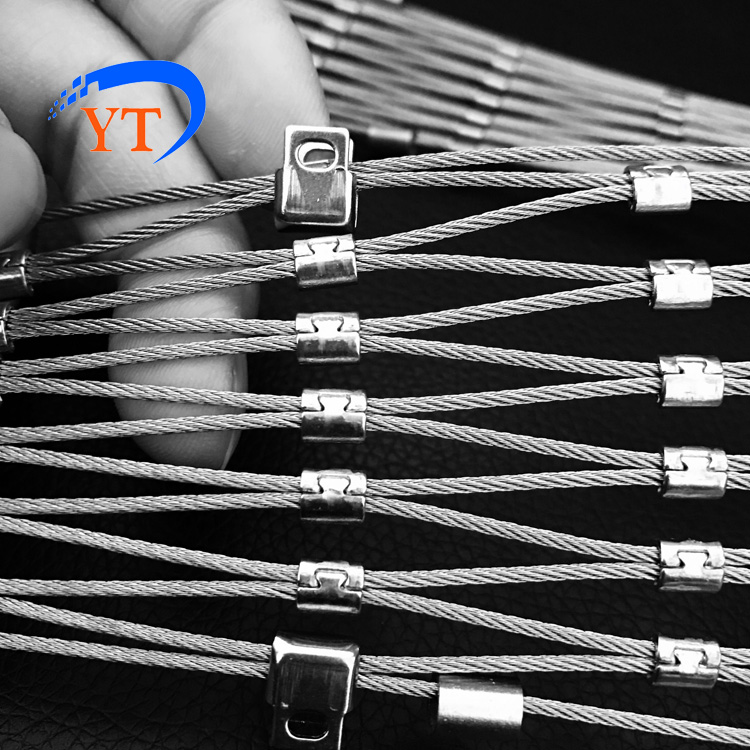

Connections/Ferrules
Mesh connections (ferrules) are available in nickel plated copper,
or highly aesthetic stainless steel for premium applications or where resistance to corrosion is a driving consideration.

Mesh Orientation
Mesh can be applied in either a vertical or horizontal direction,
Again dependent on the balustrade or railing design and the required aesthetics.

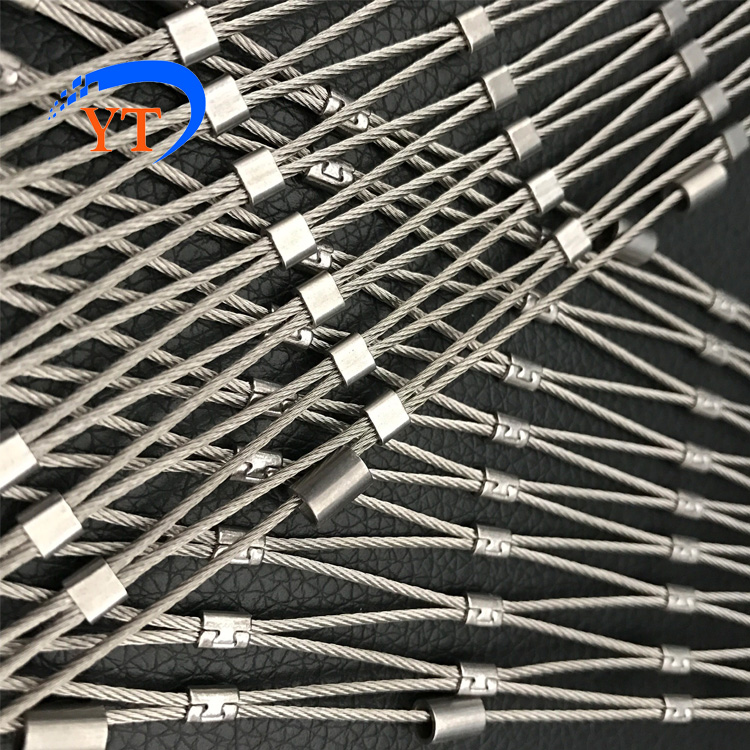

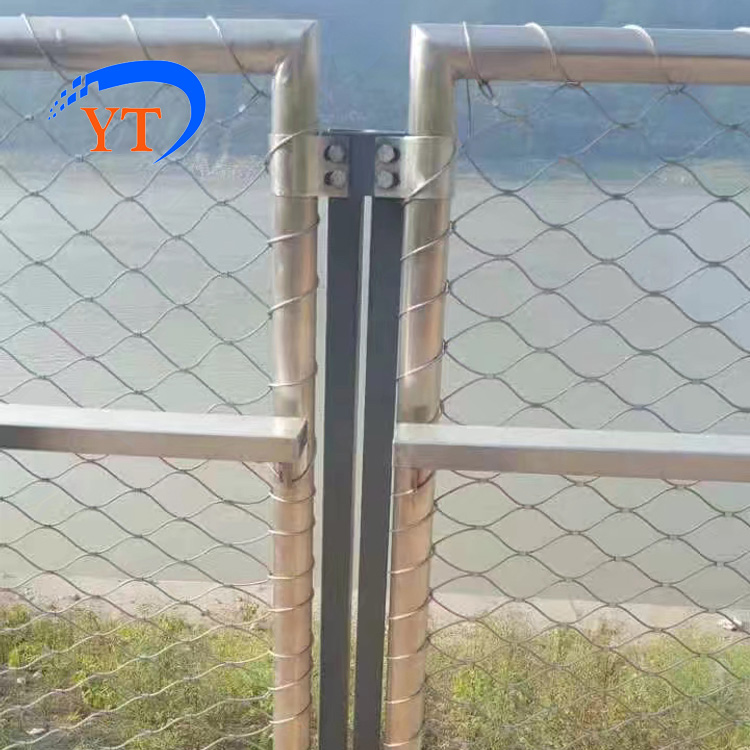

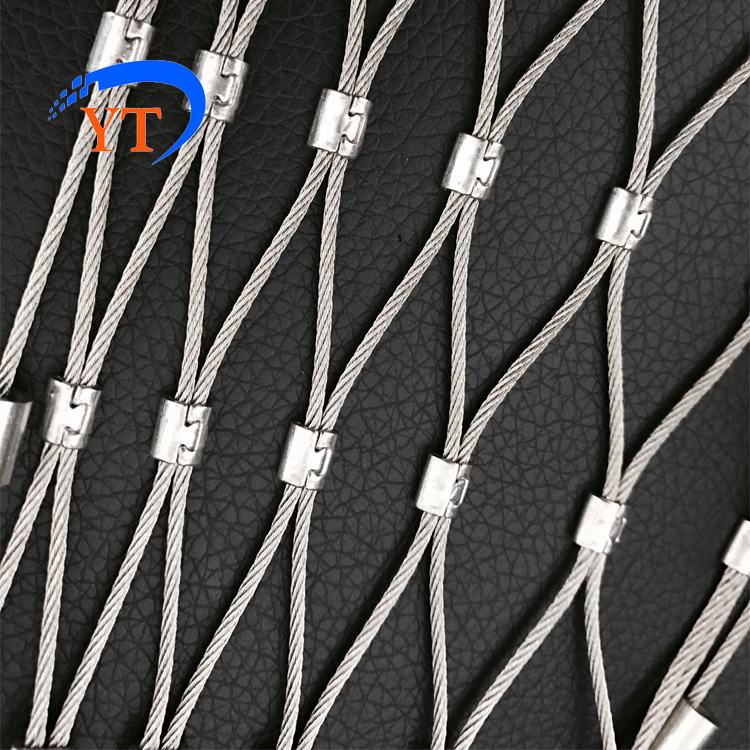

Inox Xtend Balustrade Infill Cable Mesh
