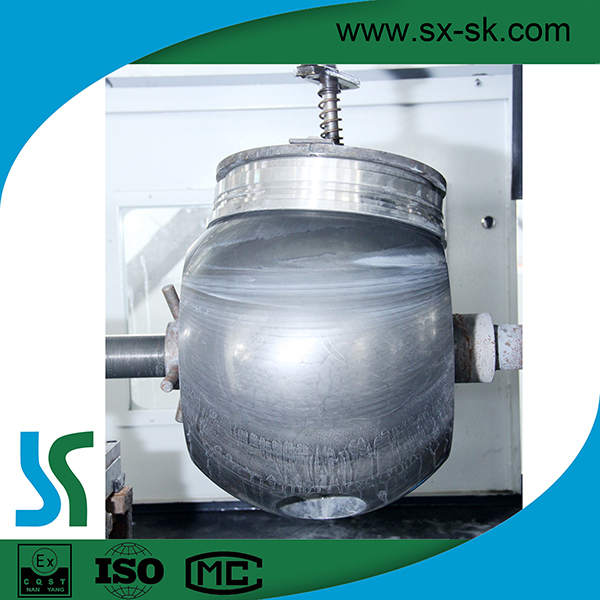

diamond ball valve

Supply Ability:	5,000 Set/Sets per Month
Shipping:	15 days after receiving ur payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Sleeve Type Soft Sealing Plug Valve(X343F)

Price:30.00-60.00 USD/Set

Min. Order:5 Sets
Rotary Airlock Valve

Price:

Min. Order:
Solenoid Valve, FCD 90A, FCD 270A

Price:2.99 USD/Piece

Min. Order:100 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	one set in one case

Quick Details

Brand Name: SX-SK
Port Size: ASME B16.5
Media: all
Temperature of Media: High Temperature
Material: Alloy
Power: Pneumatic
Pressure: High Pressure
Structure: Ball
Standard or Nonstandard: Standard
temperature: 800 for 18inch one
hardness: >HRC80
bingding force: >15000Psi
wear rate: 6.00E-17
microhardness: 2776HV
material of valve: diamond coating

Specifications

High binding more than 15000Psi high hardness HRC80 no leak diamond ball valve

Specification:

1.Diamond coating

2.Kinds of size according to your requirements

3.High temperature,high pressure,high hardness:Hardness >80hrc

4.High binding force:Binding force >15000Psi

Two step process using the Diamond Technology

1.Supersonic spray (HVOF) patent composite coating

2.By reforming and curing laser solution under vacuum condition,Strengthen coating binding force and strength,With the substrate layer micro metallurgical bonding state,Shaped layer of dense homogeneous surface,To improve the surface hardness and wear resistance.

This diamond coating process,It has a smaller void ratio,Oxide content in the lower.

Higher hardness,To increase the wear resistance and corrosion resistance.

Advantage for Diamond coating process

1.High hardness

Diamond surface hardness reached 80HRC,Compared with the commonly used carbide hardness has been far beyond,For high hardness medium such as silica fume (Hardness of 65HRC),buggy(Hardness of 50HRC),The grain condition with high abrasion resistance.

2.Corrosion resistance

Characteristics of Nuwave using coated diamond surface treatment similar to ceramics,The acid and alkali,Fluoride and chloride have antiseptic effect quite high.

3.High temperature and high pressure

For 4500LB under high pressure,The temperature is below 800 degrees conditions

4.Washing-out resistance and Abrasion resistance

Diamond coating on friction coefficient is 0.03~0.05,So it has a good self lubrication silicon chemical, coal chemical industry, power plant, etc,

High hardness solid particles under the condition of high speed impact friction resistance and Washing-out resistance.

Does not appear due to the short term the erosion caused by the valve internal parts for signs of damage.
