Baoji Hong Ya Da Nonferrous Metal Materials Co., Ltd.

China Manufacturer with main products: Titanium, Titanium Plate, Titanium Bar, Titanium Tube, Titanium Heat Exchanger, Titanium Wire, Titanium Rod Medical, Titanium Sheet

Home >Products Catalog > Titanium Plate GR1titanium Plate, GR2titanium Plate, GR5titanium Plate

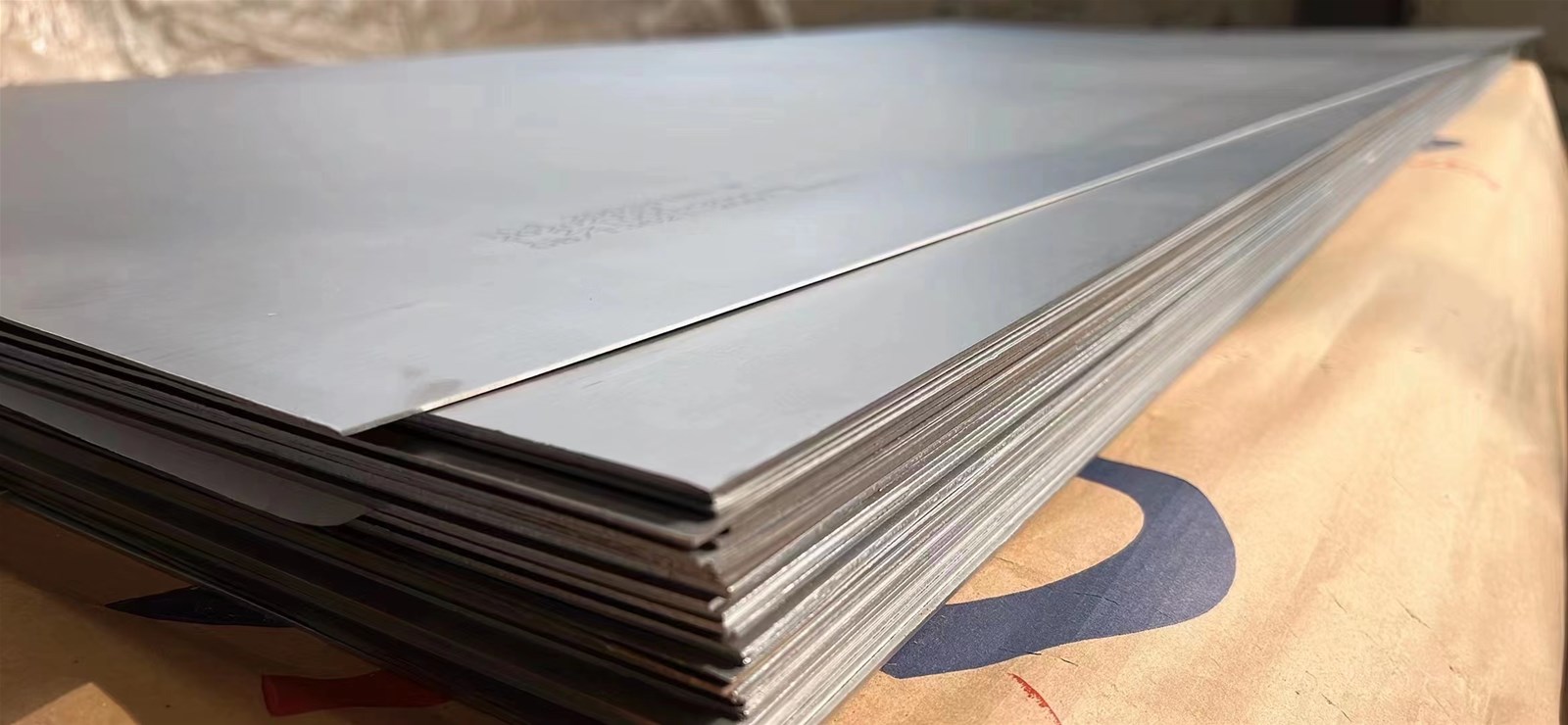

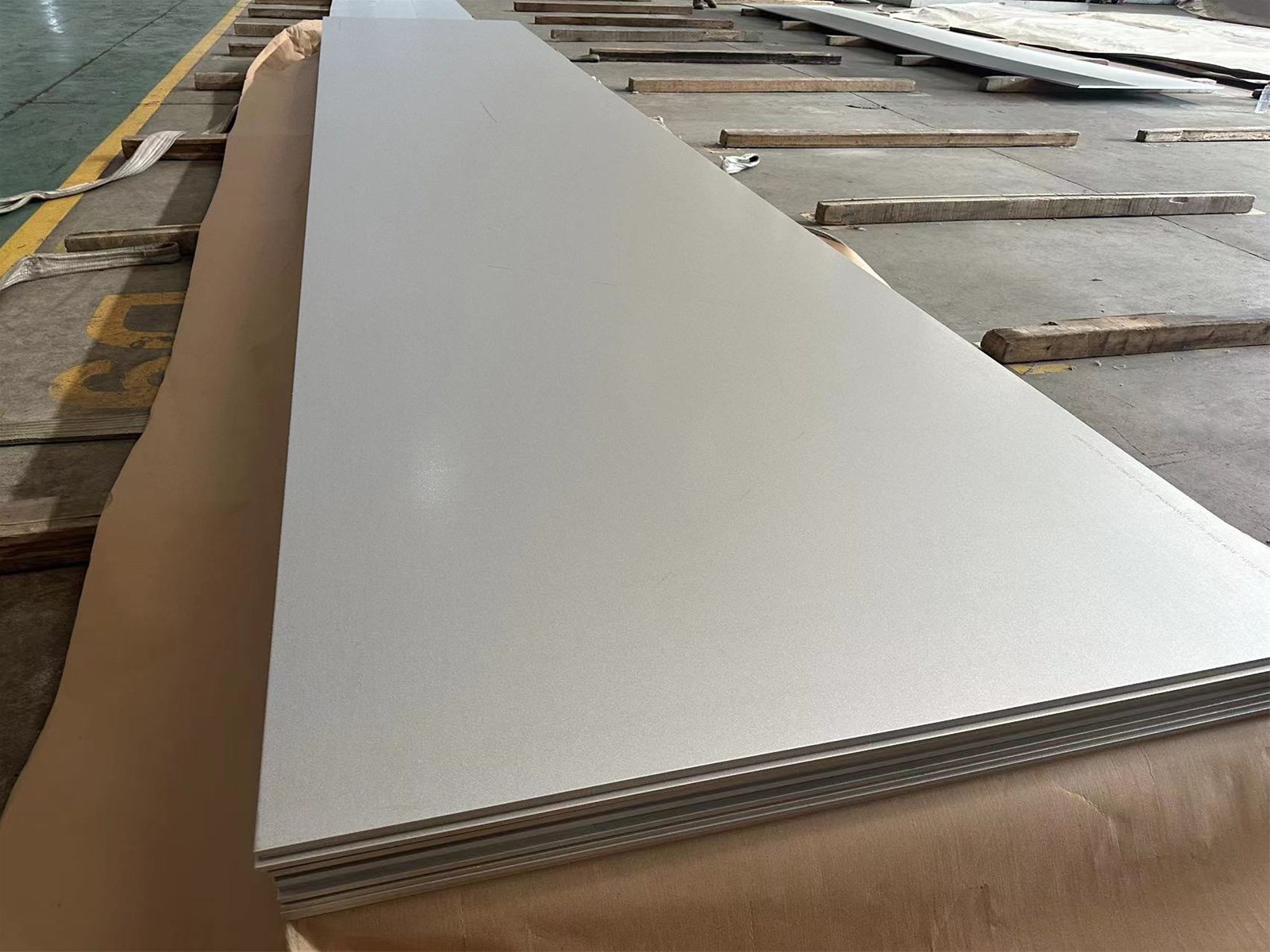

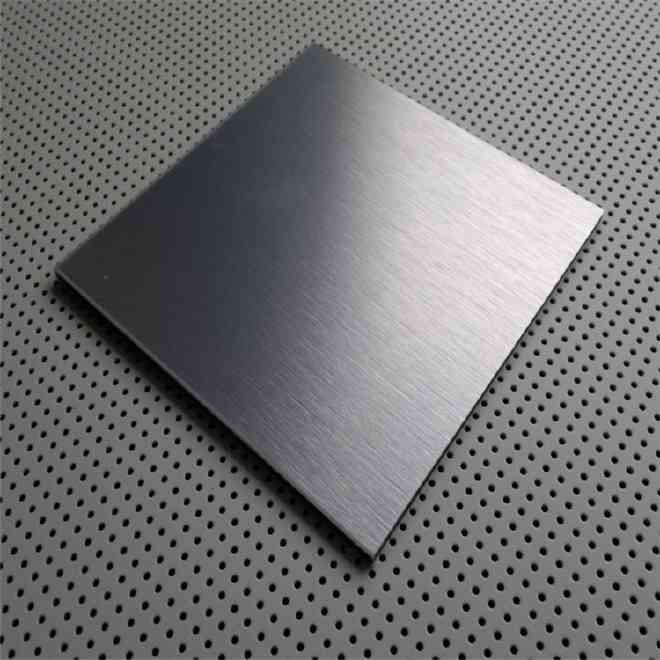

Titanium Plate GR1titanium Plate, GR2titanium Plate, GR5titanium Plate

Supply Ability:	30 Ton(s) per Month
Shipping:	by sea or by air
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Western Europe
Place of Origin:	Shaanxi in China
Packaging Details:	wooden case

Quick Details

Brand Name: hyd
Ti (Min): 99.9
Grade: GR1
Technique: Hot Rolled
Application: industry
Length: 2000
Width: 1000
Thickness: 0.5-60mm

Specifications

1. Product introduction

Titanium plate is divided into two kinds of pure titanium plate and alloy plate, pure titanium plate is mainly used in the processing of watchband, watch buckle, plate heat exchanger heat pipe, punching titanium mesh, electric dust removal device cathode line/corona line (oil storage tank), plating tank, titanium steel composite plate, large titanium equipment (heat exchanger, reaction kettle), titanium plate target, tube plate/blind plate, flange and so on. Titanium alloy plate, mainly TC4 plate, is mainly used in the processing of various tools, power plant dust removal with acoustic soot blower diaphragm.

2. Product specifications

Thickness range: 0.5mm-200mm

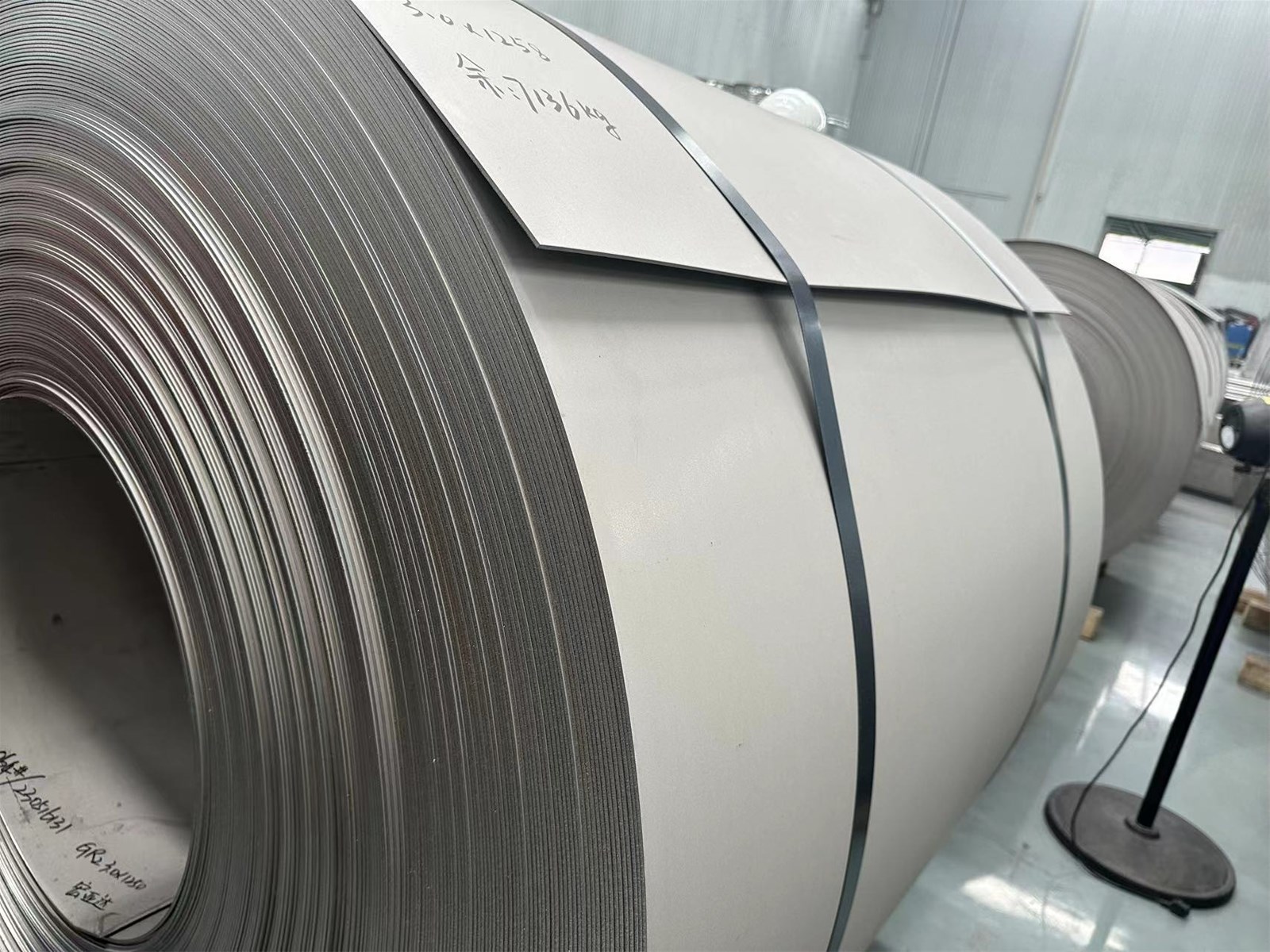

Titanium coil plate/titanium coil tape: 0.1mm-0.5mm thick *1m/1.2m/1.5m wide.

Plate: 0.5mm-20mm thick *1m*2m.

Cold-rolled plate: 1mm-4mm*1m*2m

Hot rolled plate: more than 4mm thick

Wide and thick plate: 5mm *2m*6m

the above specifications are commonly used, and specific specifications can also be customized according to customer requirements.

3. Brand number

TA1 (Grade 1), TA2 (Grade 2)

TA9 (Grade 7), TA10 (Grade 12), TA18

TC4 (Grade 5), TC6, TC11

4. Performance standards

the chemical composition conforms to GB/T 3625-2007 standard.

this information is valid for a long time, the price will change with the day's market, the quotation is for reference only.

Product inventory quantity and specifications are constantly changing. Special specifications can be customized!
