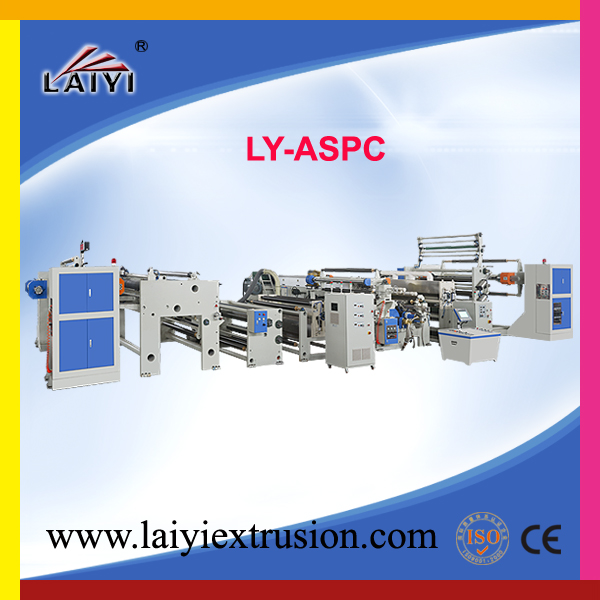

Automatic Single Side PE Coated Paper Extrusion Laminating Plant
| FOB Price: | 150,000.00 - 300,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Year |
| Shipping: | 90-120 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Wooden Pallet & Vacuum Aluminum Foil Packing,2*40HC |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 Year
- Certification: CE,ISO9001-2008
- Weight: 40 Tons
- Dimension(L*W*H): 18m*(9.5-11)m*3.8m
- Power(W): 170-290kw
- Voltage: 380V 3Phase 50HZ
- Model Number: LY-ASPC
- Brand Name: LAIYI
- Condition: New
- Item: Automatic Single Side PE Coated Paper Extrusion Laminating Plant
- Application: Single Side PE Coated Paper
- Automatic Grade: Full Automatic
- Extruder: Single Screw Extruder
- Mould Head: EDI / Sumitomo / Taiwan Zhengyu/ Zhejiang Jingcheng
- PLC: Siemens / Mitsubishi
- Corona: Sherman
- Cooling Unit: 3 Roller Cooling System
- Motor: Siemens
- Inverter: Yaskawa
Specifications
Chinaplas 2015 Booth: A55,Hall 2.2
2.Feature:
(1)PLC Concentrated Control,Human-Machine Interface,Full Automatic Constant tension Control,New shaft
pre-speed start to realize large diameter high speed roll exchange,material cutting and connecting.
(2)Main machine adopts Electric lifting,easy to adjust mould air gap height.
(3)Mould head: High precision original imported from USA,Japan,Taiwan,China domestic
(4)Suitable for double side matt lamination for disposable paper cup,paper bowl,mirror lamination in high
efficiency,low cost and high speed.
3.Craft:
Unwinder-Corona-PE Lamination-Corona-Cooling-Rewinder
1.Application:
For producing Single Side PE Coated Paper Cup Paper,Paper Bowl Paper etc.
4.Main technical parameters
(1)Valid Coating Width: 1000mm-1300mm
(2)Roller Width: 1150mm-1450mm
(3)Machine Speed: 200m/min
(4)Extruder: LD-100 or LD-120
(5)Extruder Power: 55-75kw
(6)Extruder Capacity: 250kg/h or 300kg/h
(7)Used Resin: LDPE,LLDPE,PP etc.
(8)Coating Thickness: 8-45um
(9)Coating Average: ≤±5%
(10)Substrate Material: 35-350g/m2 Paper
(11)Unwind Diameter: 1600mm
(12)Rewind Diameter: 1600mm
(13)Tension Control: Full Automatic Tension Control Of Unwinder,Sandwiched Unwinder,Rewinder
