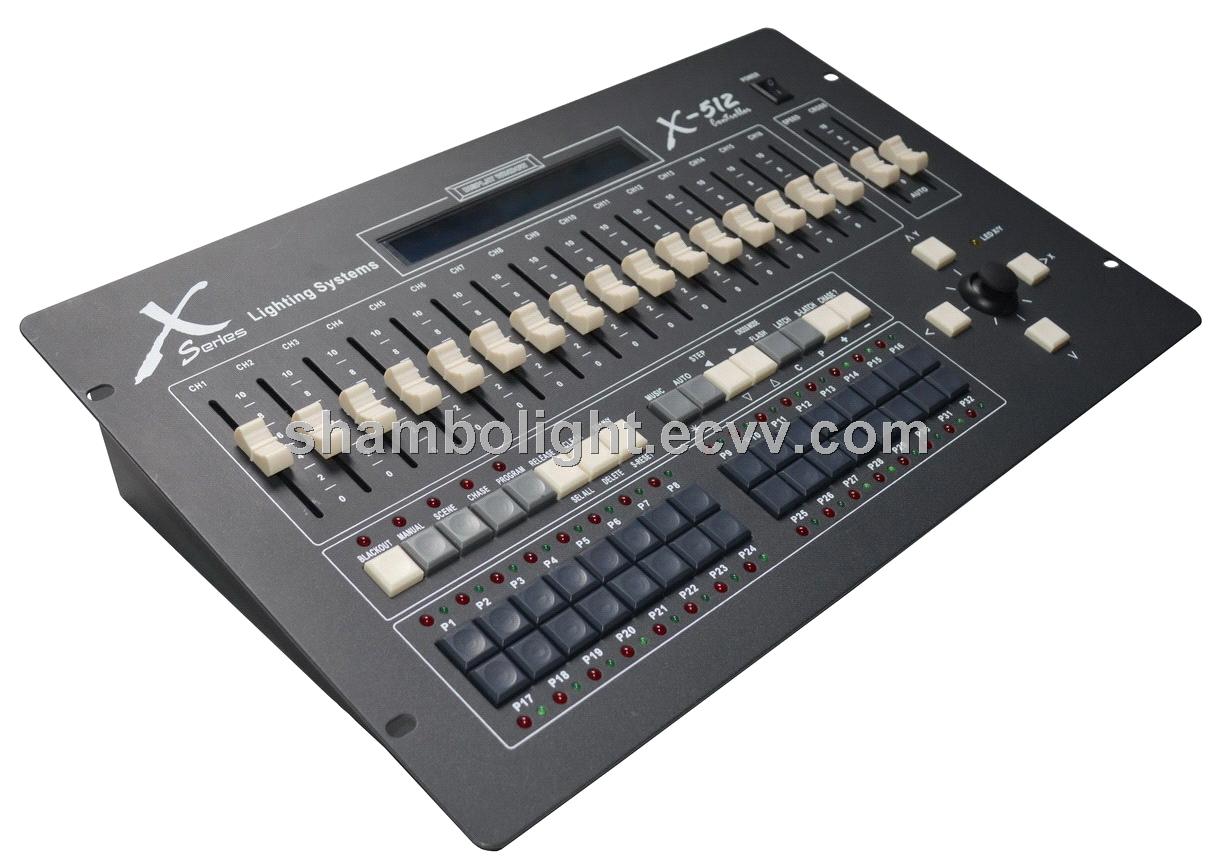

DMX512 Controller X-512B,DMX Controller,Moving head controller

Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Model Number: X-512B
Brand Name: Shambo

Specifications

DMX512/1990 Standard
512 channels
LCD display with backlight
Up to 32 scanners may be connected with a maximum of 16 channels each
Assignable joystick for easy of movement, four keys fine adjustment
Manual operate enable 8 chases and 32scenes can be run at the same time
32 chases (at most 120 steps for each chase)
3840 chase steps
Range of cross time: 0S-25.5S
Range of speed time: 0.1S-25.5S
Each chase speed and cross time can be saved automatic
The music trigger source can be selected between audio line input or inbuilt microphone
Auto save last running data when power off or disconnect electric suddenly. Console will auto run continue while power ON or connect to electric.

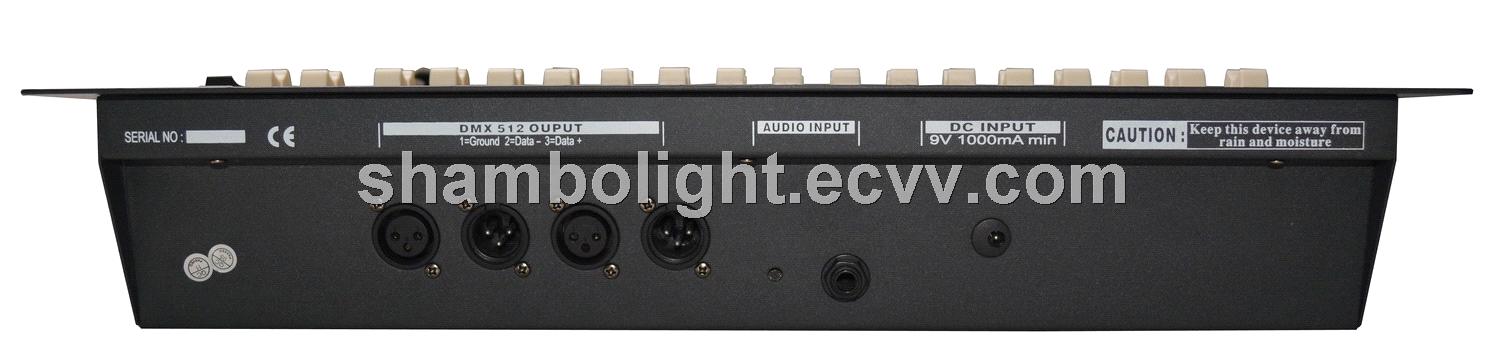

DMX signal output connector: XLR-D3F X4
Power supply: DC9V 1000mA
Dimension: 482mm×300mm×100mm
Net Weight: 4.7Kg
