Home >Products Catalog > Venta caliente de alta frecuencia de la maquina de flexion

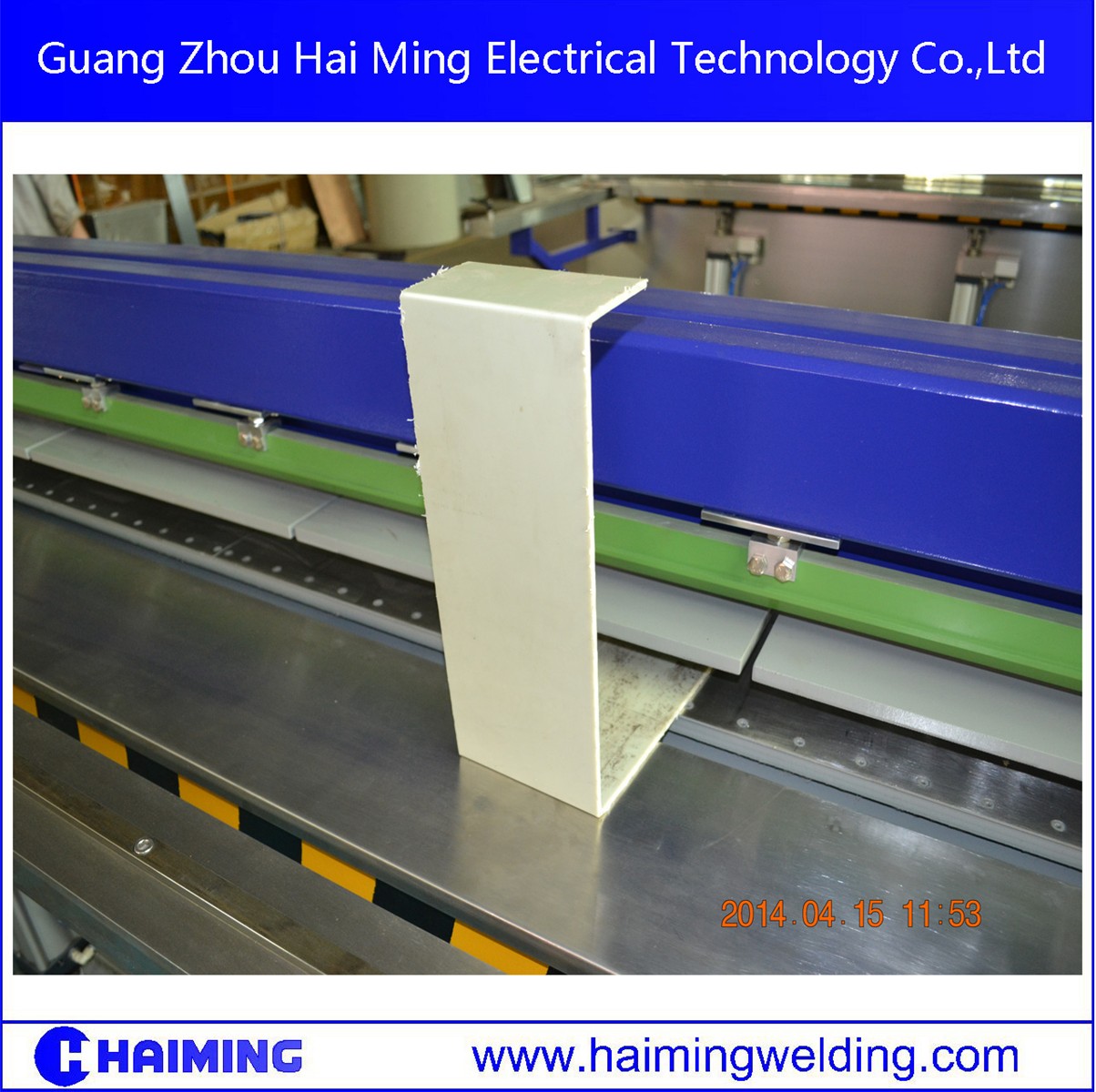

Venta caliente de alta frecuencia de la maquina de flexion

FOB Price:	20,000.00 - 60,000.00 USD/Set
Supply Ability:	1 Set/Sets per Month
Shipping:	FOB ZHUANGZHOU
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Sea worthy Simple package or according to customer's requirment for high frequency straight.

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Usage: plastic benging
Weight: 1250kg
Dimensions: 3650x1900x1150mm
Welding Area: According thickness of the plate
Power: 6.5kw
Voltage: 380v
Model Number: S-ZW3000A
Brand Name: HAIMING
COLOR: BLUE

Specifications

S-ZW3000A plastico flexion

caracteristicas

1.economic entrada y rentable en la tecnologia de plegado y ribete

2.Capacidad de grosor 2.material de 2 mm a 25 mm apto para todo tipo de termo lamina de plastico (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF ...)

3.Gama capacidad 3.angle de 0 ° a 95 ° dependiendo de la configuracion elemento calefactor

4.User concepto amistoso de la operacion con pantalla tactil de 7 "

5.Removal de canales dobladas y los perfiles se hace considerablemente mas facil, mas seguro y mas eficiente.

Gama de uso
Fabricacion de depositos, cisternas y contenedores, fabricaciao de aparatos de plastico, sistemas de ventilacion, sistemas de tratamiento de agua, depuradores, tecnologia ambiental, piscinas, el transporte y la logistica

datos Tecnicos

Model	S-ZW3000A	S-ZW4000A
Machine Length (mm)	3650	4700
Machine Width (mm)	1900	1900
Machine Height (mm)	1150	1150
Total Weight approx. (kg)	1,250	2,200
Maximum Working Width (mm)	3050	4050
Sheet Thickness to be welded (mm)	2-25	3-25
Minimum channel cross-section (mm)	280X260	280X260
Power Supply	220V/380V 50/60Hz	220V/380V 50/60Hz
Power consumption (kVA)	7	9
Compressed Air Connection	6-8bar	6-8bar
Bending Angle	0-95°	0-95°
Upper Heating Element (Teflon coated Tmax = 260° C)	3100X30X50mm, 82°	4150X30X50mm, 82°
Lower Heating Element (Teflon coated Tmax = 260° C)	3100X28X45mm, flat	4150X28X45mm, flat
