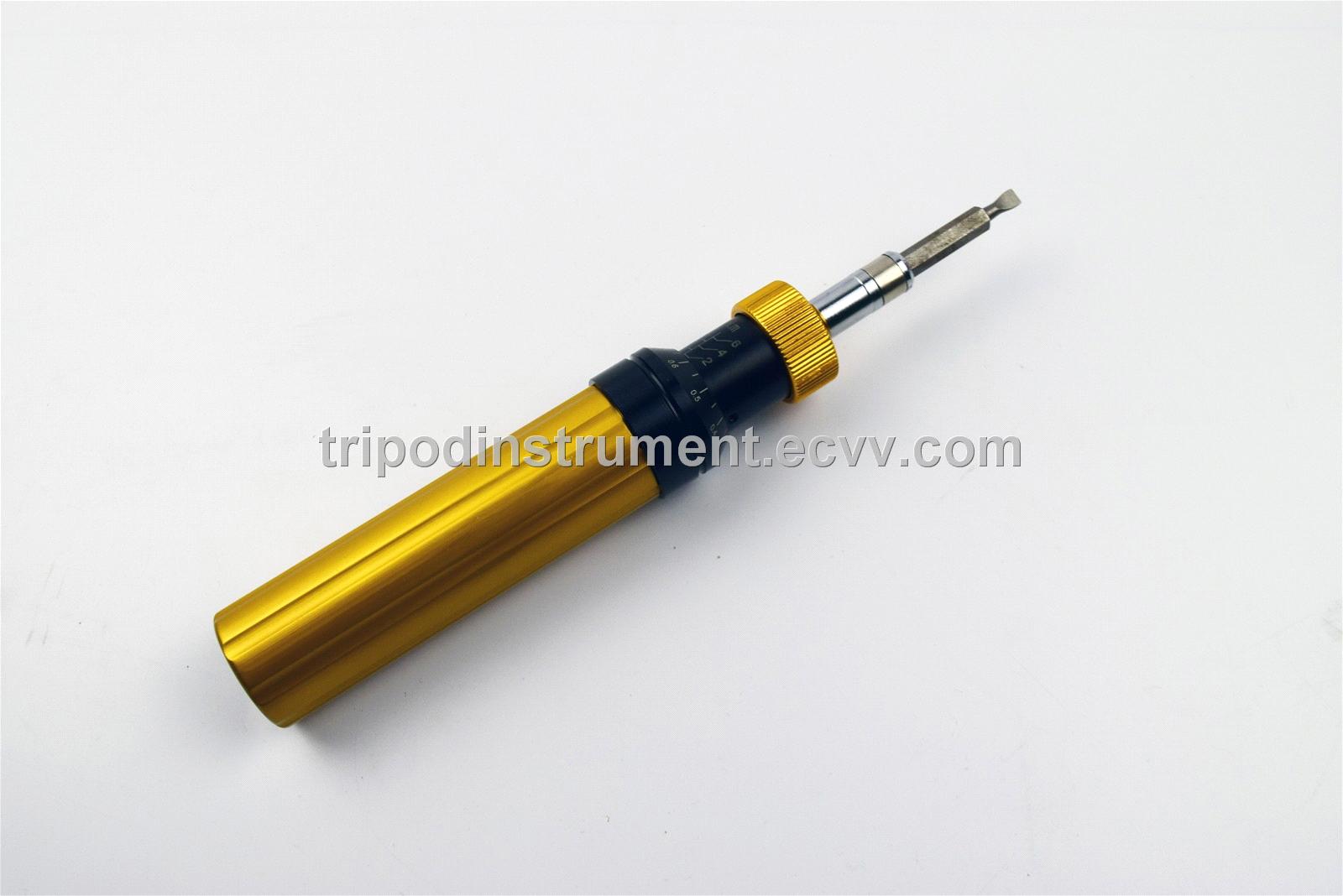

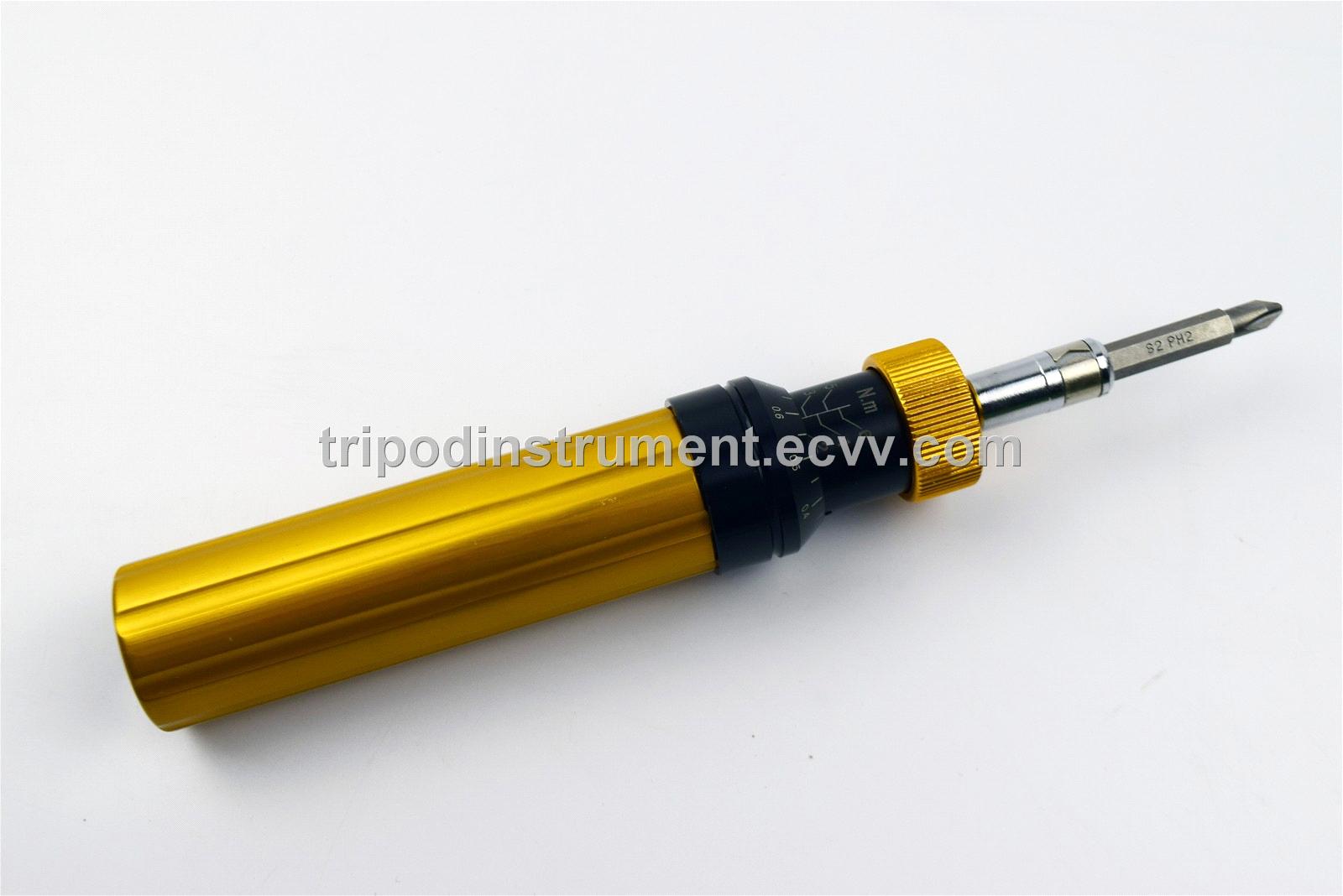

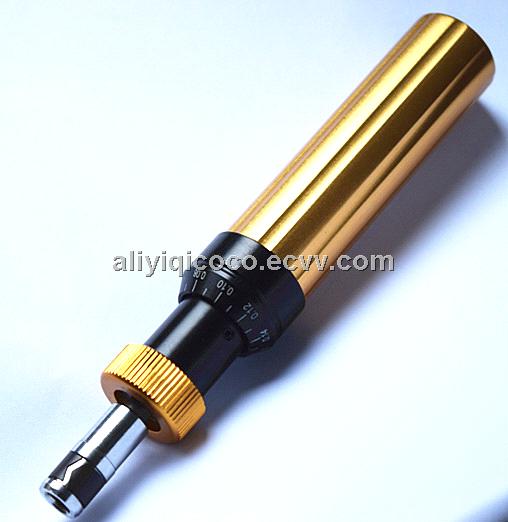

AYQ-3 Preset Torque Driver

FOB Price:	60.00 - 70.00 USD/Piece
Supply Ability:	10 Piece/Pieces per Day
Shipping:	3-7days by express,15~days by shipping
Payment Terms:	T/T, Western Union, MoneyGram, Other, Paypal

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	In plastic box ,then in a carton

Quick Details

Warranty: 1Years
Model Number: AYQ-3
Brand Name: ALIYIQI
Applicable Models: applied for all kinds of screw workpiece
Certification: CE
Power: No power
Type: Prefabricated
Precision: About 5%
Full size: 186mm
Hand diameter: 31mm
G.W.: 0.5kg

Specifications

Function:
AYQ preset torque driver is used for torque requirements of the threaded fastener tighten workpieces. The product is a counterclockwise operation, can be
preset torque value. Exceeds the set value driver idling, priority control thread fastening.Suitable for precision instruments, screw locking, the circuit board is
fixed on the screw locking have higher requirements, the high requirements of the locking accuracy. Widely used in various electrical, light industry,
machinery manufacturing,scientific research and other industries.

Characteristics:

1. It can preset torque value, and has a sound alarm. When the fastener of tightening torque reaches the preset torque value, can automatically hear"click" sound, and feeling the vibrations associated with significant, suggesting the work completed. Force is removed, the automatic reset all related parts.

2. clockwise direction and double direction automatic switching, simple and convenient to use.

3.To adopt scale circle with a scale wheel to make the scale line clear and accurate.

4, Made of aluminum alloy ,durable and a long service life.

5, The preset torque driver in accordance with GB/T 15729-2008 relevant provisions.

6, With 2 cross screwdriver blades inside,let the clients to measuring items according to replace the screwdriver head as they need.

Specifications:

Model	AYQ-0.6	AYQ-1.2		AYQ-3	AYQ-6
Range	0.1~0.6(N.m)	0.2~1.2(N.m)		0.5~3(N.m)	1~6(N.m)
Division value	0.01N.m	0.02N.m		0.05N.m	0.1N.m
Precision	±5%
Size&Shape	161mm		186mm
Outer diameter of handle	Φ26mm		φ31mm
Joint dimension	6.35 hex union
Net weight	About 0.3Kg		About 0.5Kg
