Shanghai Joinwit Optoelectronic Tech. Co., Ltd.
China Manufacturer with main products: Optical Power Meter, Visual Fault Locator, Otdr, Fusion Splicer, Optical Fiber Ranger, Optical Fiber Identifier, Optical Talk Set, Fiber... |
JW3216 Handheld Optical Power Meter
| FOB Price: | 130.00 - 200.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece/Pieces per Month |
| Shipping: | 3 working days |
| Payment Terms: | T/T, Western Union, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | The JW3216 OPM, 3pcs 1.5V batteries, AC Adaptor, CD,USB cable,User Manual, Cotton swabs and Soft car |
Quick Details
- Model Number: JW3216
- Brand Name: JOINWIT
- Measurement Range(dBm): -70~+6/-50~+26
- Dimension(mm): 180*90*45
- Communications Port: USB
- Optical Connector: FC,SC,ST interchangeable
- Brand: JOINWIT
- Display resolution: 0.01dB
Specifications

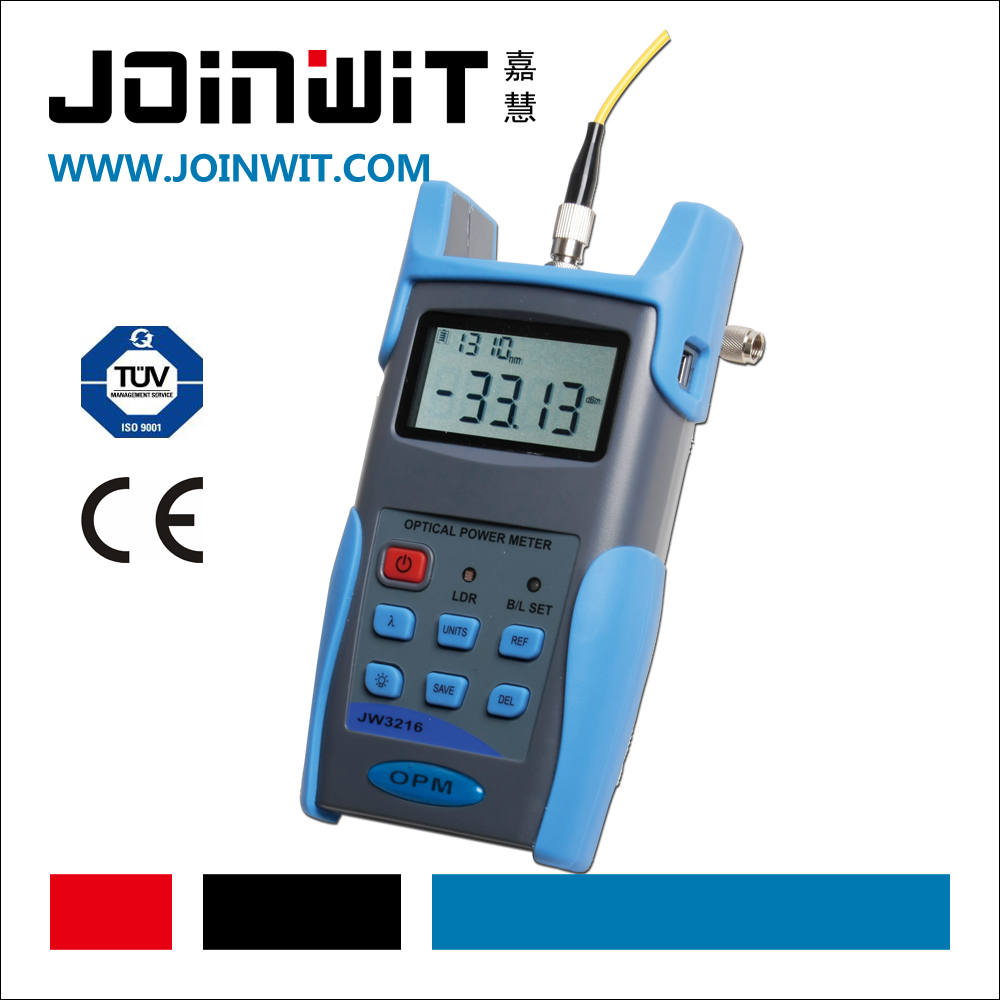

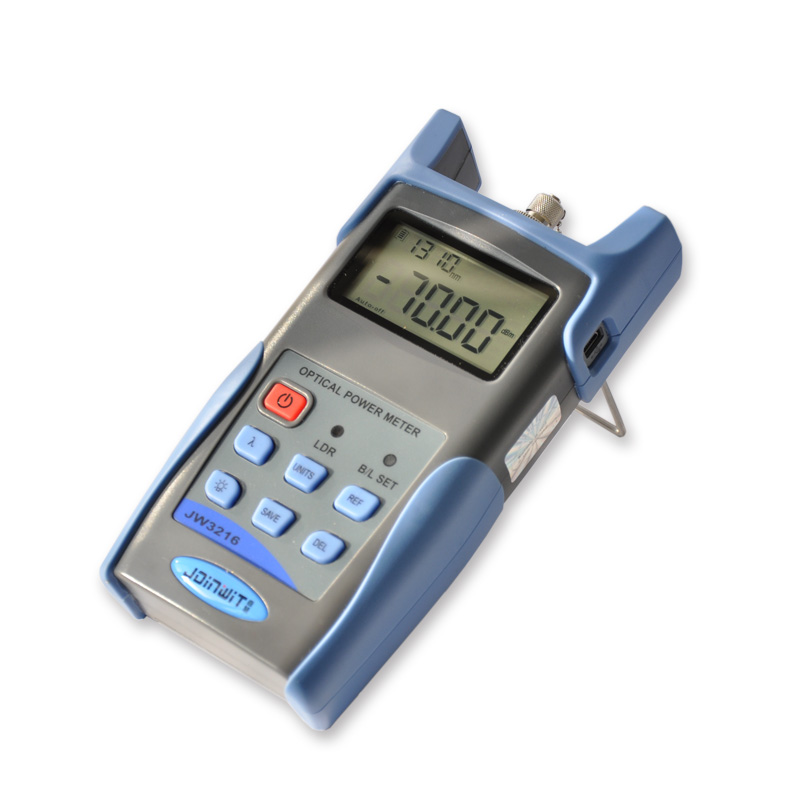

JW3216 Optical Power Meter
the JW3216 Optical Power Meter is newly designed fiber optic instrument by joinwit, it aims at fiber network
Installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with
JW3116 handheld optical light source, it offers a quick and accurate testing solution on fibers.
Specifications
Model |
JW3216A |
JW3216C |
Calibrated(nm) |
850nm, 1300nm,1310nm,1490nm,1550nm,1625nm | |
Detector type |
InGaAs | |
Measurement Range(dBm) |
-70~+6 |
-50~+26 |
Uncertainty (dB) |
±0.15(3.5%) | |
Linearity (dB) |
±0.02 | |
Display resolution(dB) |
0.01 | |
Frequency ID(Hz) |
270,330,1K,2K | |
Wave ID(nm) |
1310,1490,1550,1625 | |
Date storage capacity |
1000 | |
Communication Port |
USB | |
Optical Connector type |
FC,SC,ST interchangeable | |
Alkaline battery |
3*AA,1.5V | |
Power Supply Adaptor(V) |
8.4 | |
Battery Operating time (h) |
200 | |
Operation Temperature(°C) |
-10~+60 | |
Storage Temperature(°C) |
-25~+70 | |
Outline size(mm)/weight |
180*90*45(250g) | |
MODEL |
INCLUDES |
All JW3216 |
the JW3216 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, CD,USB cable,User Manual, Cotton swabs and Soft carrying case. |
