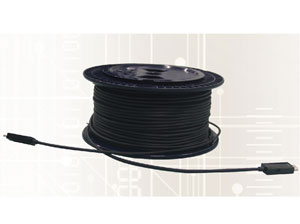

HDMI V1.4 AOC

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

10G 40km 1270/1310nm BIDI XFP Transceiver

Price:1.00-50.00 USD/Piece

Min. Order:1 Piece
Pre-Laced Hoisting Grips for 7/8" Feeder C...

Price:1.00-2.00 USD/Piece

Min. Order:100 Pieces
3d 1080p high speed hdmi tv cable

Price:0.50-1.00 USD/Piece

Min. Order:1,000 Pieces
SC Patch Cord

Price:

Min. Order:1 Meter
Wire Telephone

Price:2.25-3.00 USD/Piece

Min. Order:3000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Model Number: HDMI V1.4
Brand Name: XINHE

Specifications

HDMI V1.4 AOC

Description

Our HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI
Maximum Data Rate 3.4Gbps with light weight, flexible and ultra-small long-term bending radius (52mm) hybrid cable. Withouradvanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to lOOm maximumlength, plug and play. No external power required.

Key Features

Up to lOOm Maximum Length.(Custom Length Available)
Low Power Consumption: 250mW (max). (No External
Power Required)
Plug and Play
Compatible with HDMI Vl.4 standard.
Support HDCP
Self-detecting function for EDID information
No loss of signal - delive ring crystal clear digital images instantly.
Supports computer resolutions t0 1080P and 4K2K(30P).
Hybrid optical cable with fiber and copper wire
Optional external power supply for Transmitter (Automatic
power switch is included.)

Applications

Digital Signage
LED signboards in streets and in stadiums
Medical Imaging Equipment
Airplane On-board Video System
Home Theater
Blue-ray, 3D video, Projector, Set-up box, DVR, Game
Consoles and Computer
TV Broadcast Station
Conference Room Video Equipment
Security systems
Installation
To Source. ex. DVD. PC

Specifications

Item	Description
Units	Transmitter(Source)	Receiver(Sink)
HDCP&DDC	HDCP 1.1 Fully Support bi-directional EDID and HDCP Communication
Video Bandwidth	3.4 Gbps/×3Channel (max)+Clock.
Supported Resolution&Distance	PC:WUXGA 1920&×1200 up to 100meters, HDTV:480P,720P,1080iand 1080p deep color,4K/30P(Only for HDC-6700),up to 100 meters
O/e Converter	4 channel 850 nm VCSEL array	4 CH GaAs PD array
Connector Type	HDMI type A
Cable Type	Hybrid type with OM2 fiber and copper wire
Cable Length	15m/20m/30m/40m/50m/60m/70m/80m/90m/100m(with +/-30cm tolerance) Custom length available
Cable Outer Diameter	4.2mm
Jacket Outer Material	PVC/TPU(Custom)
Cable Weight TBD	Cable Weight TBD
Cable Color TBD	Cable Color TBD
Differential Input	100 ohm(typ)
Power Consumption	250mW(max)
Power Supply	Non exterPower Supply Voltage nal power required

Maximum Ratings

Parameter	symbol	minimum	Maximum	Units
Power Supply Voltage	VCC	4.5	5.5	V
Operating Temperature	Top	0	50	℃
Storage Temperature	Ts	-40	70	℃
Relative Humidity	Ts	10	80	%RH

Recommended Operating Conditions

Parameter	Symbol	Minimum	Typical	Maximum	Units
Power Supply Voltage	VCC	4.75	5.0	5.25	V
Operating Temperature	Top	0		50	℃

Ordering Information

Part Number	Description
HDC-5700-FM-150	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 15m
HDC-5700-FM-021	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 20m
HDC-5700-FM-031	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 30m
HDC-5700-FM-041	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 40m
HDC-5700-FM-051	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 50m
HDC-5700-FM-061	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 60m
HDC-5700-FM-071	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 70m
HDC-5700-FM-081	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 80m
HDC-5700-FM-091	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 90m
HDC-5700-FM-101	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length l00m
HDC-6700-FM-150	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length15m
HDC-6700-FM-021	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 20m
HDC-6700-FM-031	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 30m
HDC-6700-FM-041	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 40m
HDC-6700-FM-051	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 50m
HDC-6700-FM-061	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 60m
HDC-6700-FM-071	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 70m
HDC-6700-FM-081	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 80m
HDC-6700-FM-091	HDMI AOC,V1.4,4K/30P,Suport EDID/HDCP,Length 90m
HDC-6700-FM-101	HDMI AOC,V1.4,1080P,Suport EDID/HDCP,Length 100m
