led sample case,led light bulb display demo case,led show box With illuminometer

FOB Price:	250.00 - 300.00 USD/Set
Supply Ability:	200 Set/Sets per Week
Shipping:	Fedex,DHL,EMS
Payment Terms:	T/T, Western Union, MoneyGram, Other, paypal

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	Items per Carton: 1 Sets / Carton Package Measurements: 58X39X26 CM Gross Weight: 9.00 KG Package

Quick Details

Model Number: EYD-48DC-13P-01
Brand Name: ENYUDA
Color: Black,Silver
Certification:: CE, EMC, RoHS
Can test parameters: Power, POWER FACTOR, VOLTAGE, CURRENT, FREQUENCY, ANNUAL POWER CONSUMPTION
Material: Fireboard,Acrylic,Aluminum alloy

Specifications

We specialize in manufacturing LED lighting products for demonstration and testing equipment, Can be customized according to your requirements

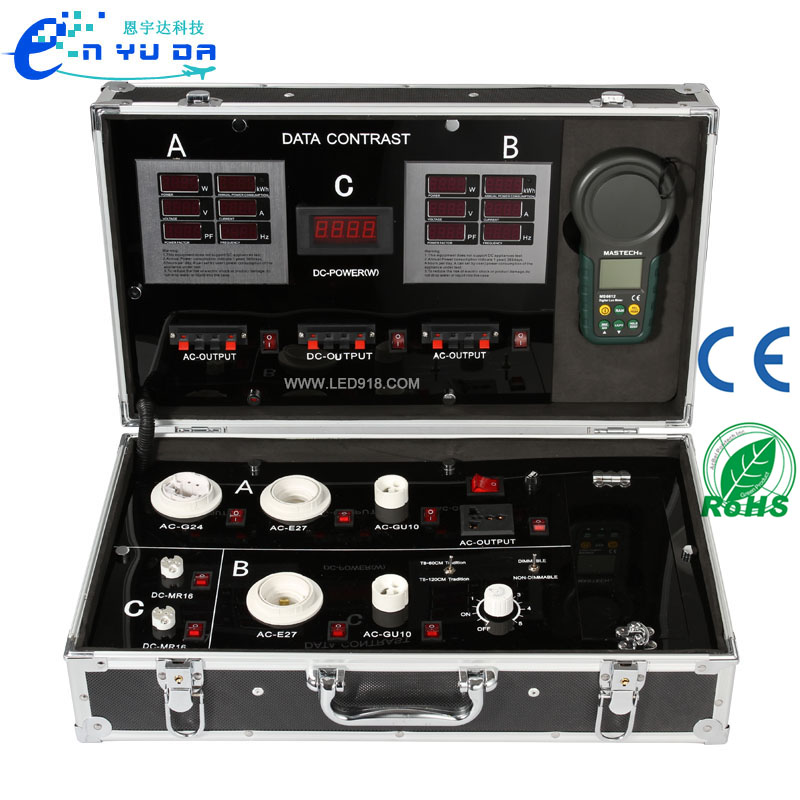

The LED display box with high-grade aluminum plate as the tank surface, showing the corner of the carton using stainless steel edging, the selection of high-end compression bull.
LED fluorescent light and ordinary fluorescent contrast clear, LED fluorescent tube power and power factor data contrast with the traditional fluorescent clear at a glance.
AC220V or AC110V support, the LED display box can be customized according to your needs, and apply to all over the world.
Saw lamps not see the lines, highlighting the main show and hide the ordinary wiring your LED products perfect display in front of your customers.
Reserved wildcard output plug for easy connection to any kind of LED lamps.
Lamp with independent control switch, safe and convenient.

Specifications:

Model	Size	lamp	Material	color	Input voltage	Weight
EYD-48DC-01	480300170mm	E26/E27, G24, GU10, MR16, T8/G13(Epitaxial),clamp,DIMMABLE	ABS,Acrylic,Aluminum alloy	Black	AC220V or AC110V	5.5KG

Detailed configuration

Support lamp	Lamp Quantity	Output voltage	Note
E27/E26 LAMP-SOCKET	2 pcs	AC220V or 110V	LED lights VS Traditional lamp
G24 LAMP-SOCKET	1 pcs	AC220V or 110V	LED lights VS Traditional lamp
GU10 LAMP-SOCKET(bayonet)	2 pcs	AC220V or 110V	LED lights VS Traditional lamp
MR16 LAMP-SOCKET	2 pcs	DC12V	LED lights VS Traditional lamp
AC-Output UNINVERSAL	1 pcs	AC220V or 110V
4 Port OUTPUT WIRE CLAMP	3 pcs	AC220V and DC12V	AC220V 1PCS AC-220V with T8/T10 Tube *1pcs(Include ballasts.) DC12V 1pcs
Power meter	3 pcs	AC220V or 110V	6-in-1 AC-power meter * 2pcs DC 12V Dedicated Power meter 1PCS
TCL LIGHT MODULATOR	1 pcs	AC220V or 110V
STORAGE	1 pcs		Power cord can be installed
DIMMABLE SELECT SWITCH	1 pcs	AC220V
Illuminometer	1 pcs	/	Can be fixed or removed. Integration of the probe

Power meter of Six in one have function:

1, The active power (POWER)

Display range: 0 ~ 1375 W

The power minimum resolution: 0.001W

2, The annual electricity consumption of power

ANNUAL POWER CONSUMPTION

Display range: 0 ~ 9999 KW

The power minimum resolution: 0.001KW

3, The voltage display (VOLTAGE)

Display range: 0 ~ 275 V AC

Voltage Minimum display resolution: 0.001V

4, The current display (CURRENT)

Display range: 0 ~ 10 A AC

Current minimum display resolution: 0.001A

5, The power factor (POWER FACTOR)

Display range: 0 ~ 1.000 PF

6, Frequency (FREQUENCY)

Display range: 35 ~ 75 Hz

Packaging

Items per Carton:	1 Sets / Carton
Package Measurements:	58X39X26 CM
Gross Weight:	9.00 KG
Package Type:	LED DEMO CASE shipments before EPE packaging, outside the resort to the gallows, to ensure transportation safety.

If this product does not meet your requirements,You can contact us at any time,We can be customized according to your requirements.
