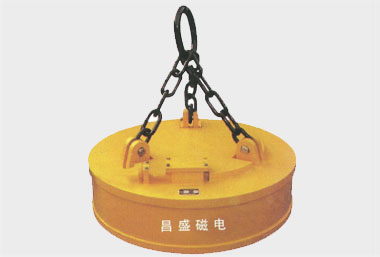

Series MW5 Electric Lifting Magnet

Payment Terms:	L/C, D/A, D/P, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China

Specifications

Introduction:

Electromagnet is used for transporting iron scraps,ingots,steel chips,slabs,steel plates and steel sheets.Electromagnet is suitable for installing on excavator,crane;and electromagnet also can be submerged under water,can be used at very high temperature and normal temperature in metallurgical plants,scrap yards and ship-building plants.

Options:

Rated Voltage DC220V;Strong Excitation Type;Overexcitation type.
Consists of Lifting Magnet, Cable Reel,Control Cabinet, Cable Connector.
· Lifting Magnet:MW5-130L/1
· Rectification Control Cabinet:DKP-4
· Cable Reel:JTA100-15-2
· Quick Coupling:DKL-50

Features:

    1, a unique magnetic circuit design, use of aluminum coil,coil plates used to protect the good wear resistance of high manganese boards, light forces,the lifting capacity.
    2, the structure is simple,sfe,reliable,applicable to all types of lifting equipment.
    3, with the exception of the use of voltage,but also a strong exciting waay.Can improve the lifting capacity and increase economic efficiency.
    4, applicable to the removal of cast iron ingots,Steel Ball into all kind of scrap.
75% or 60% Duty Cycle
All welded heavy duty construction
Class H insulation
Powerful deep magnetic field design
Aluminum Coil , Copper optional

ShenGang produces the following types of magnets:

· (Circular/Square/Rectangular), available diameters from 500 mm up to 3000 mm;
· Heat insulated magnets.They are used to move hot cargoes having surface temperature of up to 700°C;
· Magnets for any climatic requirements;
· Magnets with up to 75% duty ratio;

Major Technical parameter

Item Parameter Model	Excitation power(in low temperature) KW	Current A	Weight kg	Lifting capacity kg			Appearance size mm					Cable connector	Cable drum
Item Parameter Model	Excitation power(in low temperature) KW	Current A	Weight kg	Iron ball	Cast iron ingot	Cutting slack	A	B	C	D	E	Cable connector	Cable drum
MW5-70L	3.3	15	500	2500	380/200	120/100	700	800	160	90	30	DL-102	JTA-75-15-2
MW5-80L	3.96	18	630	3000	480/250	150/130	805	800	160	90	30
MW5-90L	5.85	26.6	800	4500	600/400	250/200	900	1090	200	125	40
MW5-110L	7.7	35	1360	6500	1000/800	450/400	1100	1140	220	150	45
MW5-120L	10	44.5	1650	7300	1300/900	600/500	1200	1100	220	150	45
MW5-130L	11.9	54	2110	8500	1400/1100	700/600	1300	1240	250	175	50
MW5-150L	15.6	71.2	2800	11000	1900/1500	1100/900	1500	1250	350	210	60		JTA-100-15-2
MW5-165L	15.6	75	3200	12000	2200/1800	1300/1100	1650	1350	370	230	65
MW5-180L	22.5	102.4	4200	14500	2750/2100	1600/1350	1800	1490	370	230	75
MW5-210L	28.4	129	7000	21000	3500/2800	2200/1850	2100	1860	400	250	80	DL-202	JTA-170-15-2
MW5-240L	33.9	154	9150	/	4800/3800	2850/2250	2400	2020	450	280	90	DL-202	JTA-200-15-2
