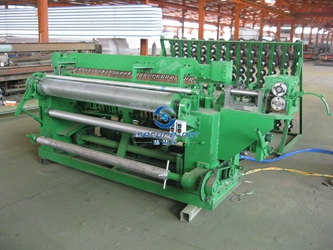

Light Duty Full Automatic Welded Wire Mesh Machine

FOB Price:	16,100.00 - 26,100.00 USD/Set
Supply Ability:	30 Set/Sets per Month
Shipping:	25days after receive the downpayment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	platic bags and wooden boxes

Quick Details

Type: Welding Wire Machine
After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Weight: 3T
Dimensions: 2500X1500X1200MM
Voltage: 380v 50HZ
Usage: screen,livestock cage mesh,breeding nets,construction mesh,support net
Model Number: SK-WE-2500
Brand Name: SECURE-NETT
Condition: New
Welding Diameter: 0.4-1.2(mm)
Welding Mesh: 1/4"-1"
Welding Width: 600-1220(mm)
Welding Speed: 140times/min
Nominal Voltage: 380v 3 phase electric 50HZ
Nominal Power: 65KVA*4
Exterior Size: 2500*1500*1200(mm)
Weight: 1800KG
HS CODE: 85151900

Specifications

Light Duty Full Automatic Welded Wire Mesh Machine

1..Adopt the new type of wire feeding apparatus which has many good properties such as feeding wire accurately, welding firmly, uniform mesh welding fastly and easy operation.

2.Both line wire and cross wire can be fed from wire coils automatically.

3.The raw material is applicable for low carbon steel wire

4.The mesh size is precise and the machine can be set the width and length according to customer's requirement .

5.Mesh advance system: drawn by hooks and driven by servo-motor. These special designes escape the possibility of bending the cross wire of the mesh and ensure mesh precision.

6.Mesh cutting system: the high speed shear cut the endless mesh strip into sheets of any length without slow down the welding machine; automatic cutting, based on the pre-input date by operator.

7. It has advantages such as reasonable design, easy operation, low noise, high stability, low cost, high productivity, firm welding points, welding uniformity and good surface.

8. This equipment is mechanical-electrical integrative welding machine;It has the box-style support machine frame.

9. The machine can straighten and send cross wire automatically, weld mesh automatically, cut edge automatically, roll mesh automatically.

Usage:
Mainly used for producing the screen,livestock cage mesh,breeding nets,construction mesh,support network,garden nets,fence,floor heating mesh,wall mesh,and technology mesh so on.

--------------------------------------------------------------------
Parameter:

Welding Diameter	0.4-1.2(mm)
Welding Mesh	1/4"-1"
Welding Width	600-1220(mm)
Welding Speed	140times/min
Nominal Voltage	380v 3 phase electric 50HZ
Nominal Power	65KVA*4
Exterior Size	250015001200(mm)
Weight	1800KG
