JW3304N Handheld Optical Fiber Ranger, Mini Otdr

FOB Price:	450.00 - 650.00 USD/Piece
Supply Ability:	400 Piece(s) per Month
Shipping:	3 working days
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	JW3304N Fiber Ranager, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case.

Quick Details

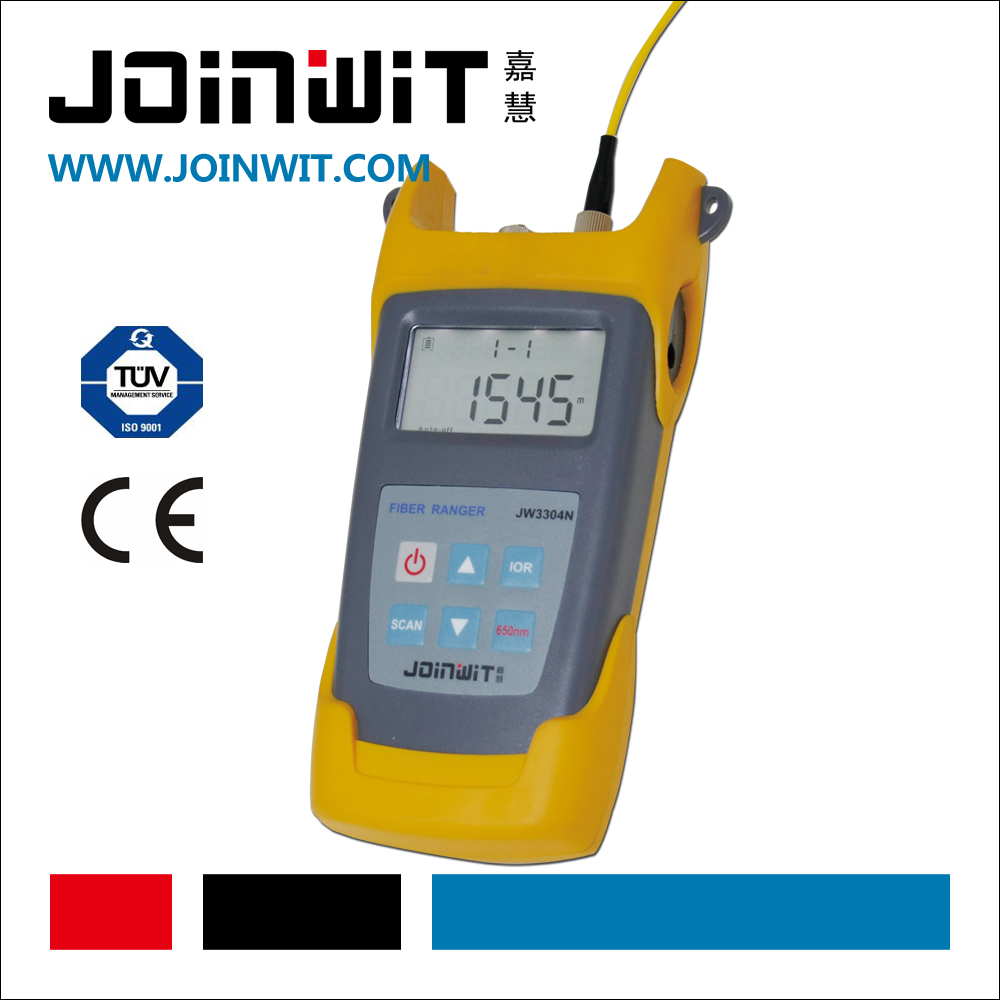

JW3304N Optical Fiber Ranger

JW3304N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical

Principles and integrates the powerful analysis software, which enables the JW3304N fiber ranger detect fiber

Faults location more accurate and easy.

Specifications

Model		JW3304N
Operating Wavelength		1550nm(1310nm Optional)
Fiber Type		9/125um SM Fiber
Optical Connector Type		FC/PC
Detector Type		InGaAs
Peak Power of laser		≥60mW
Max. Displaying Distance	Reflection Event	60km (≥1dB)
	Non-reflection Event	20km (≥2.5dB)
Measurement Unit		m
Reflection Event Dead Zone		15m
Distance Accuracy(Reflection Event)		*±(2m+210(-4)Distance)*
Wavelength of VFL Option		650nm
Output Power of VFL Option		>=1mW
Power Supply		Alkaline Battery (3pcs AA 4.5V Batteries)
Battery Operating Time		≥5000 measurements
Working Temperature		-5~40°C
Storage Temperature		-10~60°C
Humidity		0~85%(Non-condensation)
Dimensions		*19010050mm*
Weight(g)		450

Standard Packages

MODEL	INCLUDES
JW3304N models	JW3304N Fiber Ranager, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case.
