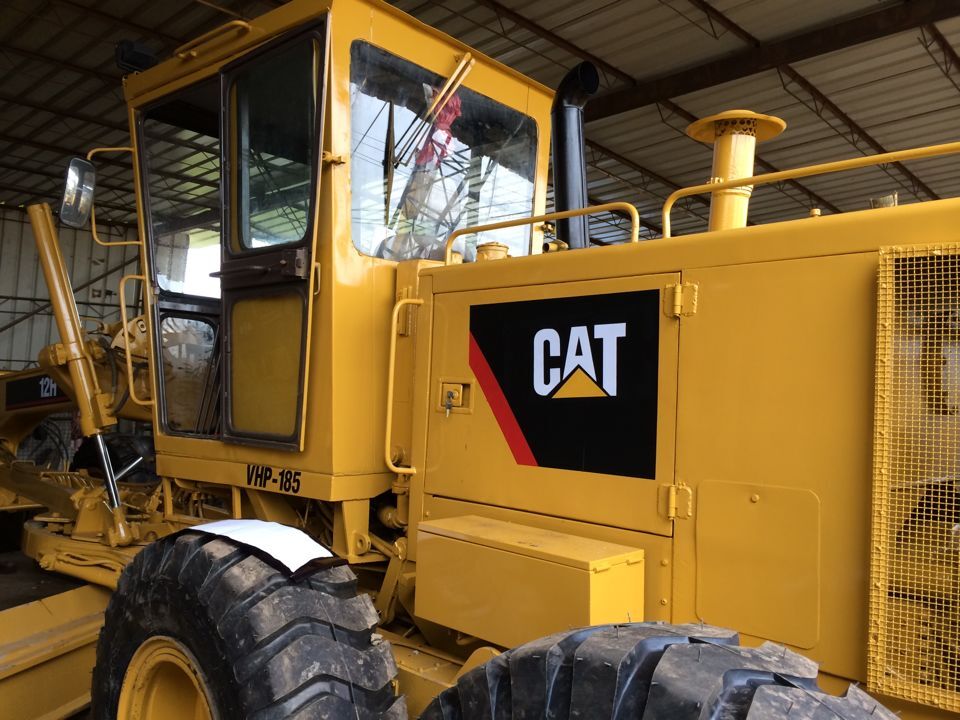

Caterpillar 12H Motor Grader in Shanghai

Specifications

Motor Grader in Excellent Condition

Made in Japan
Year of 2011
2250 hours
Excellent condition



1. Engine

Make: Caterpillar
Power Measured @: 2200 rpm
Net Power Gear 5-6: 135 hp 100.7 kw
Number of Cylinders: 6
Max Power: 135 hp 100.7 kw
Displacement: 10.5 L


2. Operational

Std Operation Weight - Front Axle: 3570 kg
Std Operation Weight - Rear Axle: 9130 kg
Std Operation Weight - Total: 12700 kg
Max Operation Weight - Front Axle: 4530 kg
Max Operation Weight - Rear Axle: 9800 kg
Max Operation Weight - Total: 14330 kg
Fuel Capacity: 283 L
Oil System Fluid Capacity: 29 L
Cooling System Fluid Capacity: 47 L
Hydrauilc System Fluid Capacity: 76 L
Transmission Fluid Capacity: 87 L
Tandem Case Fluid Capacity (each): 64 L
Operating Voltage: 24 V
Alternator Supplied Amperage: 19 amps


3. Transmission

Type: Cat-built direct drive power shift
Number of Gears - Forward: 6
Number of Gears - Reverse: 6
Max Speed - Forward: 41 km/h
Max Speed - Reverse: 41 km/h


4. Steering

Articulation L/R: 50 degrees
Turning Radius: 7.3 m
Front Axle
Wheel Lean: 18 degrees
Oscillation - Total: 32 degrees
Ground Clearance: 610 mm


5. Hydraulic System

Pump Type: closed-center, constant-pressure system w/ variable displacement piston
Pump Flow: 193 L/min
Relief Valve Pressure: 14823.7 kPa


6. Moldboard

Moldboard Width: 3650 mm
Moldboard Height: 610 mm
Moldboard Thickness: 22 mm
Max Depth of Cut: 450 mm
Side Shift Left: 670 mm
Side Shift Right: 520 mm


7. Circle

Diameter: 1530 mm
Rotation: 360 degrees
Max Reach Outside Tires - Left: 1830 mm
Max Reach Outside Tires - Right: 1870 mm
Max Lift Above Ground: 438 mm
Blade Tip Angle - Front: 90 degrees
Blade Tip Angle - Rear: 90 degrees


8. Dimensions

Height to Top of Cab: 3330 mm
Overall Length: 8310 mm
Width Over Tires: 2410 mm
Wheelbase: 5920 mm
Blade Base: 2570 mm
Tandem Axle Wheelbase: 1520 mm
