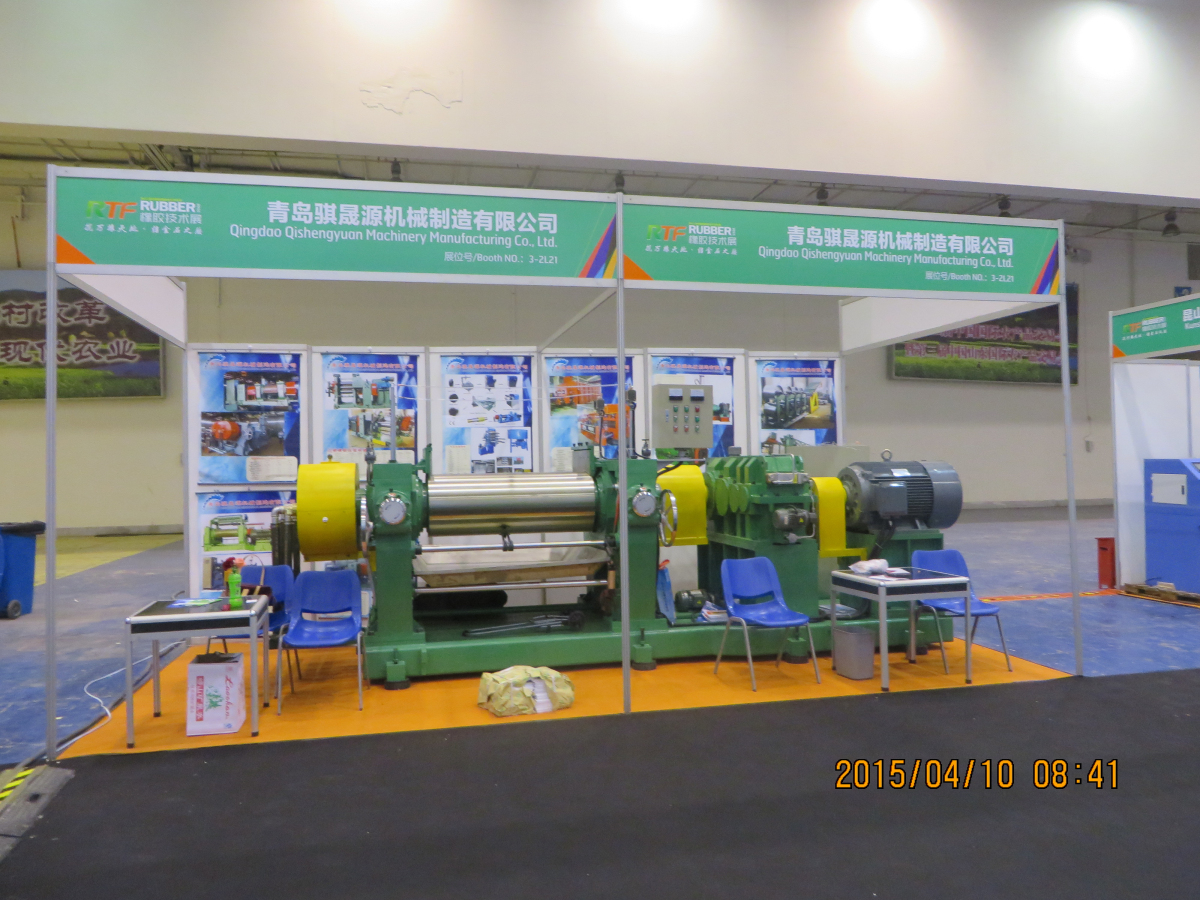

Two roll mixing mill machine & Open mixing mill machine

FOB Price:	20,000.00 - 30,000.00 USD/Set
Supply Ability:	25 Set/Sets per Month
Shipping:	qingdao port
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Tube Ball Mill

Price:

Min. Order:

Product Details

Export Markets:	South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	seaworthy packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: ISO & CE
Weight: 12000kg
Power(W): 55kw
Voltage: as customer require.
Model Number: 18 inch/XK-450
Brand Name: QSY
Condition: New
Color: Bule

Specifications

Two roll mixing mill machine & Open mixing mill machine

Structure features:

1.Rollers run through the main motor, reducer,drive gear and ratio gear's driving.

2.The machine is made of chilled castiron alloys,whose work surface has high hardness,so it is wear-resistant and durable.

3.While using,the steem,cooling water and heat-conducting oil can be passed into the roller's cavity,so that the working temparature can be adjusted in order to meet the technological requirement.

4. Roll nip adjustment is realized by hand or electracial opearation which can obtain high accuracy and sensitivity.

Brief self-introduction:

We are manufacturer of rubber machine with nearly 30 years' experience in China.

All machines our factory directly export.

We have a set of standardized production line,which contains wire peeling machine,rubber cutter,grinding mill,shredder,screen conveyor,rubber crusher,shaker,banburying mixer,open mill,spiral elevator,kneader,rubber filter and extruder,vulcanizer,refiner,calendering machine.

Applications:

This machine is mainly used for both natural and synthetic rubber's plasticating,mixing,warming and sheeting.

Processing: Thermal mixing of batches and finish squashing. Also it can be used for plastic industry and pigment industry as subsidiary application (PVC).

1.waste tyre recycling line

2.rubber products processing line(tyres,shoes,handbags,latex gloves,sport balls,mousepad,conveyors,rubber sheets&tiles,rubber band,seals,insulation boards,etc.,)

3.plastic runway and artificial grass production line

The followings are technical datas(B type):

Specification Type	Roller dia*length(mm)	Front roller linear velocity(m/min)	Velocity ratio of roller	Feeding quantity each time(kg)	Max. diatance regulation(mm)	Motor power(kw)	Overall dimension(LWH)(mm)	Weight (t)
X(S)K-110	110*300	0-8	adjustable	1	3	3	160016001200	1.5
X(S)K-160	160*320	8.89	1:1.35	1-2	4	5.5	11609201370	1
X(S)K-230	230*635	12.71	1:1.19	5~10	8	15	310013001100	2
X(S)K-250	250*635	14.01	1:1.17	10-15	8	15	320013501100	2
X(S)K-300	300*700	15.34	1:1.17	12-20	10	22	360014001300	4
X(S)K-360	360*900	16.45	1:1.25	15-25	10	30	410016501450	6
X(S)K-400	400*1010	18.83	1:1.27	25-35	10	40	460018501450	8
X(S)K-450	450*1200	24.12	1:1.27	30-50	10	55	510021001500	12
X(S)K-550	550*1530	31.33	1:1.20	50-60	15	110	650022001750	20
X(S)K-610	610*1830	30.10	1:1.18	75(Thermalrefining)	15	160	720024001900	35
X(S)K-660	660*2130	32.45	1:1.09	165(Thermalrefining)	15	180	745036602080	45
X(S)K-660	660*2130	18.60	1:1.24	165(Thermalrefining)	15	245	746536602080	45.6
