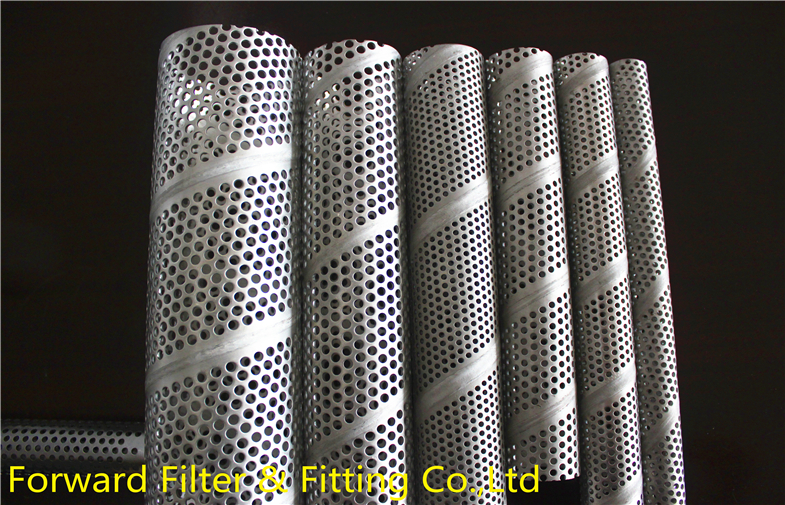

Spiral Welded Perforated Tube

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Section Shape: Round
Outer Diameter: 0.6875-7.5 inch
Thickness: 17.5-215.9 mm
Grade: 10#-45#,10MoWVNb,API J55-API P110
Grade: 10#,20#,45#,10MoWVNb,API K55,API L80
Standard: API
Standard: API 5DP,API 5L

Specifications

Aka: Spiral Perforated Tube/Pipe, Center Tube for Filter Element

Ss304/304L/316/316L stainless steel, Mild steel, Aluminum, Copper, Monel, Hastelloy, Inconel, Titanium, etc.

Hole Diameter: Various to meet different requirements for tubing strength and filtration

Tube Diameter: 1/4''-12'' (6.35 ～ 304.8mm)

Wall Thickness: 0.5～2.5mm (special sizes can be customized )

Length: Customized

Finish:

: Hold tight tolerances or improve appearance and against high External pressure; Plating: Prevent from corrosion for mild steel/carbon steel

Oiling, Degrease, Grit Blast, Acid pickling and passivation treatment

Electro polish to the stainless steel tubes

Coated by PVC, Epoxy and many others according to the requirements.

Feature: Precise rolling, high resistance to external pressure. Can be used as filter frame, big bearing, high roundness, precise filtering capacity.

Uses:

(1) Protective sleeve for sand control screens

(2) Support core for strainers

(3) Purolator suction strainers

(4) Acoustical dampening

(5) Perforated tubes for oil well

(6) Exhaust tubes, Muffler tube

(7) Filtration / Separation Tubes (e.g center tube for air, oil, fuel, gas filters)

(8) Decorative items

(9) Gas / Liquid / Vapor/ Light Diffusion

(10)Structural Members

(11) EMI shielding

(12) Safety guards

(13) Grills or trim

Note: sample and special specifications are available on your request!

The strength of the spiral welded pipe is generally higher than straight seam welded pipe. Larger diameter can be produced by narrow black with spiral weld seam. We can also produce it with different pipe diameter using the same width of black. But compared with the same length of straight seam welded pipe, the length of welding line increased 30-100%, and the production speed is low. Therefore, relatively small diameter welded pipe are mostly adopts the straight seam welded pipe, larger diameter welded pipes are usually spiral welded pipe.
