Extrusion machine for PPR Glass-fiber composite pipe KAIDE factory
| FOB Price: | 45,000.00 - 150,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Year |
| Shipping: | 60days delivery; from qingdao port |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | soft film for whole container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE;ISO
- Dimension(L*W*H): 42m*3m*3.5m
- Power(W): 270KW
- Voltage: 380V
- Model Number: KD-GF
- Brand Name: KAIDE
- Automatic Grade: Auto
- Screw Design: Single-screw
- Application: Pipe
- Condition: New
Specifications

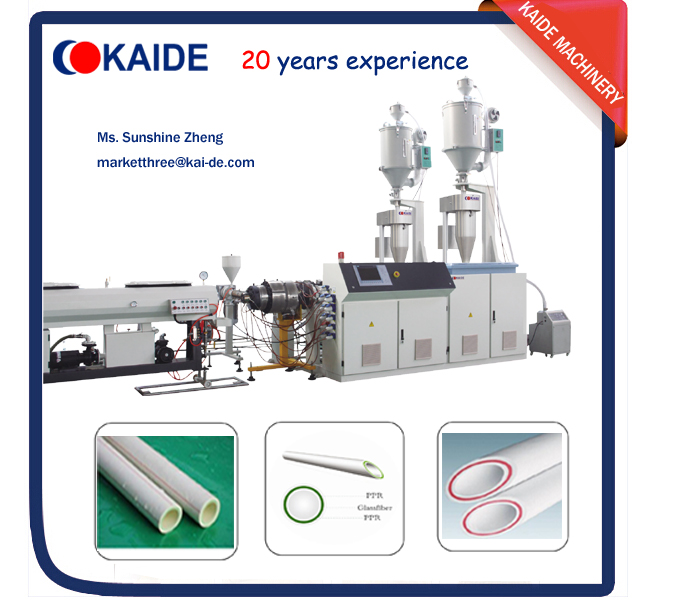

High Speed PPR/Glass-fiber Composite Pipe Production Line
KAIDE factory has focused on plastic pipe extrusion technology for more than 20 years, especially for small diameter, multi-layer composite and high speed plastic pipes lines. It's the birthplace of China first high speed plastic pipe production line!
This high speed PPR/glass-fiber composite line is further optimized based on our previous high speed pipe lines and composite pipe lines. The production speed can reach to 28m/min for pipe size φ20×2.3mm, which greatly improves production efficiency, and reduces the labor cost and production costs, such as water and electric consumption.
Technical Parameter:
|
Line Model |
Screw Diameter |
L/D |
Production Scope |
Production Speed |
Nominal Power |
|
SJ-60 |
ф60/65mm |
36/33:1 |
ф20-63mm |
30m/min |
178KW |
|
SJ-80 |
Ф80/65mm |
33:1 |
ф20-63mm |
28m/min |
186KW |
|
SJ-65 |
ф65/50mm |
33:1 |
ф20-63mm |
15m/min |
119KW |
Main Features of the line:
1) It adopts the specialized high efficient wear-resistant extruder for glass fiber reinforced plastic material, which ensures high speed extrusion and guarantee the long service life of extruder.
2) The special designed adjustable co-extrusion die head, our company exclusive patent product, can ensure even thickness of three layers, and get ideal thickness quickly. Each layer thickness can be adjusted freely; no need to adjust the extruder's rotating speed.
3) The haul-off machine adopts structure of high speed multi-group roller clamping type, which completely overcomes the vibration & skip problems in the traditional mode, and also ensures high-speed stable pulling.
4) Compared with common PPR pipes, these pipes have advantages, such as, high anti-compression strength, small temperature deformation, small vertical shrinkage rate, which completely solves the deformation problem of PP-R pipe while conveying hot water.
5) It adopts SIEMENS PLC control system and Multi-point closed-loop control system, which ensure the high speed synchronous control and reliable operating of the whole production line.
