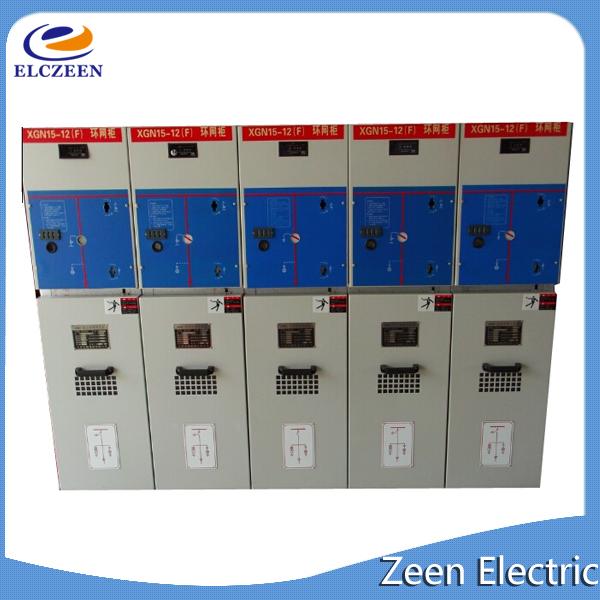

XGN15-12 Ring Main Unit Air Insulated Switchgear outgoing feeder

Supply Ability:	300 Set/Sets per Month
Shipping:	Ningbo or Shanghai port
Payment Terms:	L/C, T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	woodcase

Quick Details

Model Number: XGN15-12
Brand Name: ELCZEEN,OEM
Voltage: 12KV/24KV
Rated current: 630A-2000A

Specifications

Specification:

XGN15-12/24 SF6 RMU is used in 50 HZ CA,12/24KV power system,especially widely used in following places,such ascity residential area EN distribution station,small secondary transformer station,switching house,Industrial and mineral enterprises,mall,airport,subway ,wind power generation,hospital,stadium,railway,tunnel.

items	apparatus	unit	parameter
rated voltage		KV	12/24
rated lightning impulse withsttand voltage	ph-ph,ph-ground	KV	75/125
	breaker gap	KV	85/145
1min power frequency withstand voltage	ph-ph,ph-ground	KV	42/65
	breaker gap	KV	48/79
rated frequence		HZ	50/60
rated current	main busbar	A	1250/630
	branch busbar	A	1250/630
rated short time withstand current	main busbar	KA	20/3s
	branch busbar	KA	20/2s
rated peak withstand current		KA	50
transformer current		A	1700/800
protection class			IP3X
load switch mechanical life		times	2000
earth switch mechnical life		times	2000
load switch cabinet	deep	mm	916,940,840
	wide	mm	375,500,750
	high	mm	16351885,1600,1800
low pressure chamber	high	mm	350,450
circuit breaker cabinet	deep	mm	650,750,800
	wide	mm	916,940,840
	high	mm
