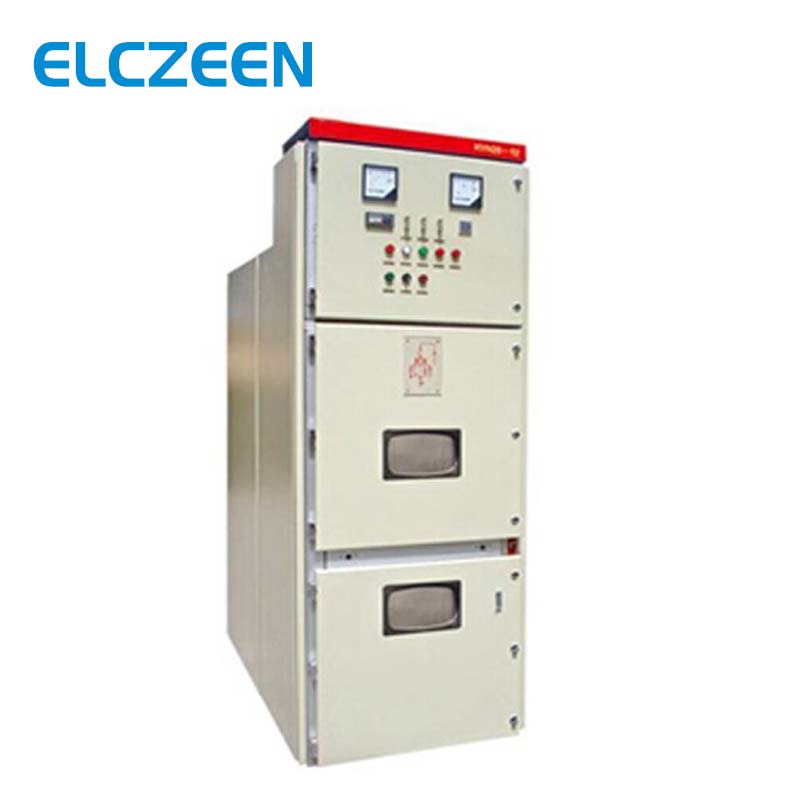

KYN28A-12 12KV Indoor Metalclad Withdrawable Switchgear

Supply Ability:	200 Set(s) per Month
Shipping:	Ningbo or Shanghai port
Payment Terms:	L/C, T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Woodcase

Quick Details

Brand Name: ELCZEEN,OEM
Rated Voltage: 12kv
application: Electrical power
Material: zinc-plate
name: switchgear
Model Number: KYN28A-12
Voltage: 12KV
Technology: Vacuum
Rated frequency: 50/60HZ
Protection level: IP44

Specifications

KYN28A12 12KV indoor Metalclad Withdrawable switchgear

Specification:

I.General Description
KYN28-12 Armoured removable AC metal-clad switchgear panel (called switch Cabinet for short). It is applicable for power receiving and Distribution in the 3.6-12Kv three-phase AC 50Hz single bus bar and Single bus bar sectioning system. It has the functions of controlling, Protecting and monitoring the circuit.

IV.Design & Structure
the Switch cabinet is metal-clad. Its structure design accords with the Standards GB3906-91, IEC298, DL404 and DL402. the crust structure is Made of steel plates by means of bending and welding, which are joined by bolts. the hand buggy panel is the door of cabinet. the bosom of Switch cabinet is divided into a breaker chamber, a main bus bar Chamber, a cable chamber and a relay chamber by metal partitions. the Degree of protection of the entire crust and compartments is IP2X Equally. All the metal structures are connected to ground reliably. All the compartments of main circuit system have pressure release channels forIndependent exhaust.

Main Technical data:

Rated Voltage (kV,max)	3.6,7.2,12,24
Rated Frequency (Hz)	50/60
Rated Continuous Current of Busbar (A,max)	630,1250,1600,2000,2500,3150,4000
Rated Continuous Current of Feeder (A,max)	630,1250,1600,2000,2500,3150,4000
Rated Lightning Impulse Withstand Voltage (kV)	40,60,75,125
Power Frequency Withstand Voltage (kV)	24,32,42,65
Short-Circuit Interrupting Current (kA,max)	16,20,25,31.5,40
Short-Time Withstand Current,4s (kA,max)	16,20,25,31.5,40,50
Short-Circuit Making Current (kA peak)	40,50,63,80,100,125
Peak Withstand Current (kA peak)	40,50,63,80,100,125
Weight (kg)	1000~1500
