Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details:	Standard air packaging with box+foam+metal

Quick Details

Application: Industrial Magnet
Shape: disc
Composite: NdFeB Magnet
Type: Permanent
Model Number: N35-N52
Brand Name: AIM magnet
coating: Zn,NiCuNi,Ni,Ag,Au,Epoxy

Specifications

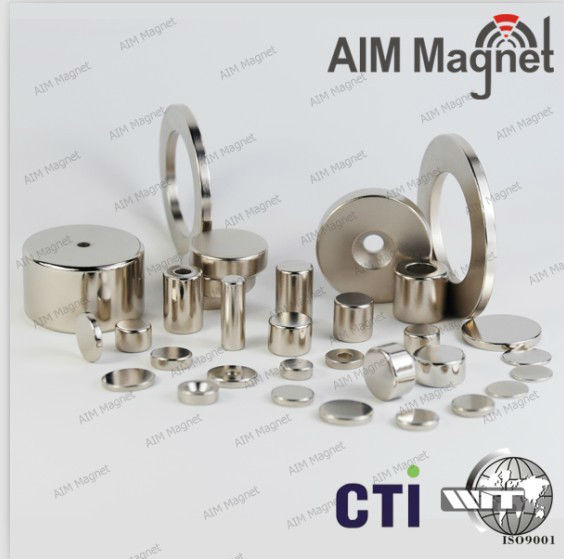

N35 N38 N40 N42 N45 N48 N50 N52 neodymium circular magnets

Neodymium( NdFeB )magnets are the strongest type of rare earth magnet commercially available and are

manufactured in a wide range of shapes, sizes and grades. Shenzhen AIM Magnet Co.,Ltd was found in 2006

which is the role-model enterprise among magnets manufacturing industries in China. We own one stop complete industrial chain from raw material blank, cutting, electroplating and standard packing.

Material	Neodymium-Iron-Boron
Performance Grade	N35-N52
Size	customized
Surface	Nickel (can build all kinds of coatings)
Tolerance	± 0.05mm
Magnetization	Thickness (Poles on Flat Ends)
Operating Temperature	Maximum 80 ° C (can be customized temperature)
Note	1. Be careful fragile and clip hand. 2. Placed in a dry place, stored at room temperature! 3. When connecting two magnets, must be careful draw them, close to each other slowly and gently. Hard crushing would cause damage and cracks in the magnetic material.

In order to quote you the best price,please provide us the following informations

Shape	Block/Rectangle/ Square	Disc/Round/ Cylinder	Ring/Countersunk
Dimension	L (?) x W(? ) xT(?)	D(?) x T(?)	OD(?) x ID(?) x T(?)
	For other shapes,please tell more in details or drawing would be much appreciated.
Coating	Zn,Nickel,Ni-Cu-Ni,Epoxy,Au,Silver or other ?
Working Temperature	Normal or High temperature ?

Surface	Coating	Thickness (Microns)	Color	Resistance
Passivation		0-1	Silver Grey	Temporary Protection
Nickel	Ni+Ni	10-20	Bright Silver	Excellent against Humidity
Nickel	Ni+Cu+Ni	10-20	Bright Silver	Excellent against Humidity
Zinc	Zn	8-20	Bright Blue	Good Against Salt Spray
Zinc	C-Zn	8-20	Shinny Color	Excellent Against Salt Spray
Tin	Ni+Cu+Sn	15-20	Silver	Superior Against Humidity
Gold	Ni+Cu+Au	10-20	Gold	Superior Against Humidity
Copper	Ni+Cu	10-20	Gold	Temporary Protection
Epoxy	Epoxy	15-25	Black, Red, Grey	Excellent Against Humidity & Salt Spray
	Ni+Cu+Epoxy
	Zn+Epoxy
Chemical	Ni	10-20	Silver Grey	Excellent Against Humidity
Parylene	Parylene	5-20	Grey	Excellent Against Humidity, Salt Spray. Superior Against Solvents, Gases, Fungi and Bacteria.

1.We are a professional magnet manufacturer since 2006.Our plating factory is the benchmark in the Shenzhen NdFeB industry.

2. No returned goods for five years in Europe market.

3. We provide magnets for a dozen of Fortune Global 500 enterprises such as Apple, Samsung, Lenovo etc.

4. In Europe market, 80% permanent magnets used for range hood are from AIM Magnet Co.,Ltd.

5.Our company is the main supplier of American top wine box.

6.With rich exporting experiences with neodymium magnets,we build supply chain to offer neodymium magnets with professional service.
