Shijiazhuang Teneng Electrical& Mechanical Equipment Co., Ltd.
China Manufacturer with main products: Pipe Mill Ine, Pipe Making Machine, Carbon Steel Pipe Mill Line, ERW Pipe Mill, Welded Pipe Mill, Forming and Sizing Mill, Steel Pipe Machine... |

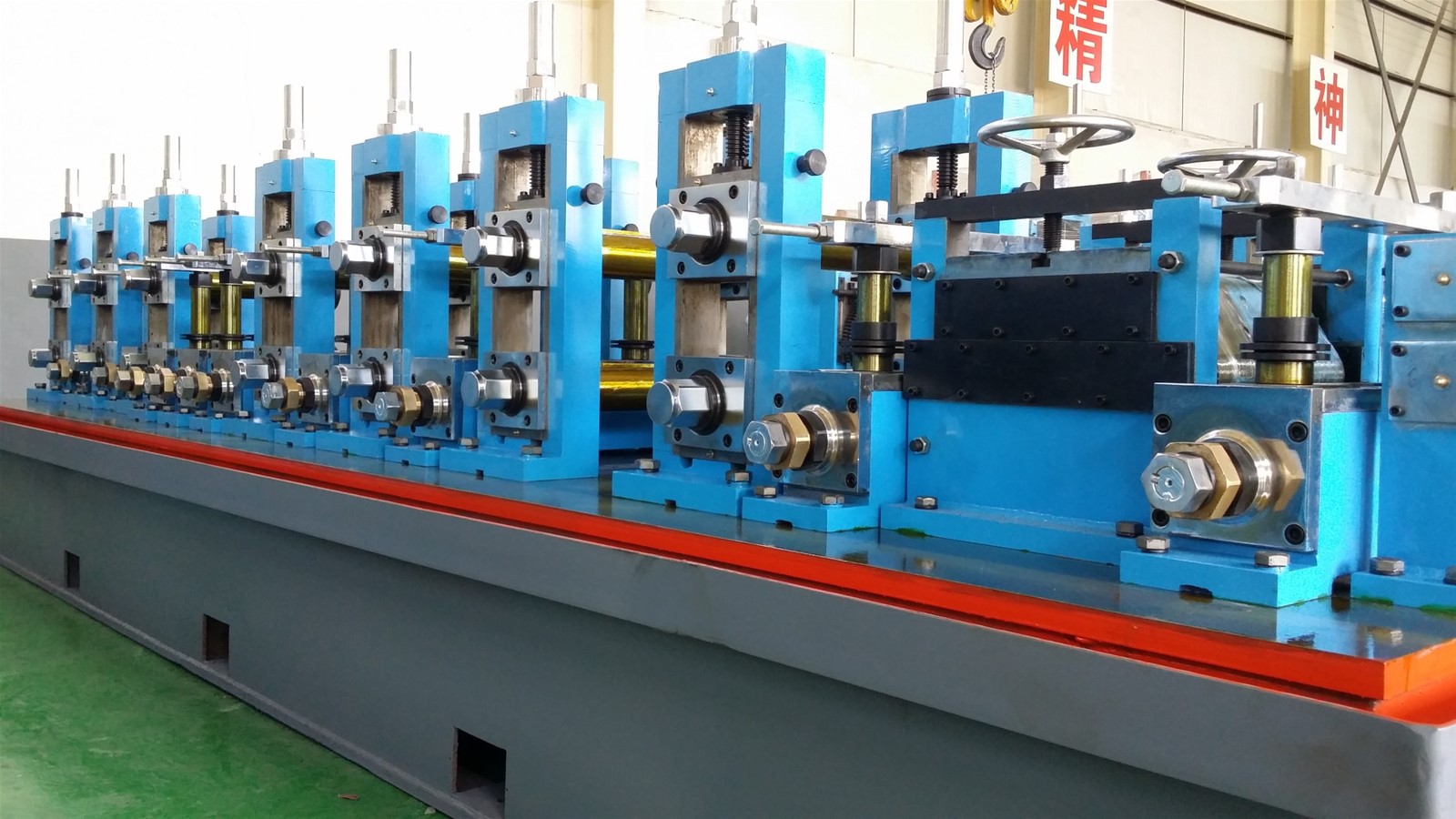

ERW Carbon Steel Pipe Making Machine, tube mills
| FOB Price: | 100,000.00 - 10,000,000.00 USD/Set |
|---|---|
| Shipping: | By sea |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | pallet and wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO,SGS,GB
- Weight: as require
- Dimension(L*W*H): as require
- Power(W): as require
- Voltage: as require
- Model Number: HG
- Brand Name: Teneng
- Production Capacity: as require
- Application: oilwatergas pipe and tube
- Pipe Material: carbon steel
- Type: Pipe Mill
- Condition: New
Specifications
Mainly Specifications
|
Model |
Round Pipe OD (mm) |
Sq.&Rect.Pipe (mm) |
Wall Thickness (mm) |
Max.Speed (m/min) |
|
HG20 |
φ8- φ20 |
8*8-20*20 |
0.3-1.2 |
30-120 |
|
HG32 |
φ10- φ32 |
10*10-30*30 |
0.4-2.0 |
30-100 |
|
HG50 |
φ12-φ50 |
13*13-40*40 |
0.5-3.0 |
30-90 |
|
HG60 |
φ20- φ76 |
15*15-60*60 |
0.8-3.5 |
30-90 |
|
HG76 |
φ25- φ76 |
20*20-60*60 |
1.5-4.0 |
20-80 |
|
HG114 |
φ48- φ114 |
40*40-90*90 |
1.5-4.5 |
20-70 |
|
HG140 |
φ50- φ140 |
40*40-110*110 |
1.5-5.0 |
20-60 |
|
HG165 |
φ60- φ165 |
50*50-130*130 |
1.5-5.0 |
20-60 |
|
HG219 |
φ89- φ219 |
70*70-170*170 |
2.0-6.0 |
20-50 |
|
HG273 |
φ89- φ273 |
70*70-200*200 |
2.0-8.0 |
20-50 |
|
HG325 |
φ114- φ325 |
90*90-250*250 |
3.0-10.0 |
15-40 |
|
HG355 |
φ114- φ355 |
90*90-280*280 |
4.0-12.7 |
15-40 |
|
HG377 |
φ114- φ377 |
90*90-300*300 |
4.0-14.0 |
15-40 |
|
HG406 |
φ165- φ406 |
130*130-320*320 |
4.0-14.0 |
15-30 |
|
HG508 |
φ219- φ508 |
170*170-400*400 |
5.0-16.0 |
15-30 |
|
HG630 |
φ219- φ630 |
170*170-500*500 |
6.0-19.0 |
15-25 |
I. Summary
ERW high-frequency welded pipe production line is the special equipment
providing longitudinally welded pipe and cold formed steel for industries such as
metallurgy, construction, transportation, machinery, vehicles and so on.
Used traditional moulding technology to produce round pipe, and round to square
technology to produce square and rectangle pipe.
Taking cold or hot-rolled steel as raw materials, through cold-formed and
high-frequency welding method to produce the suitable round tube.
Material of the coil: low carbon steel (σb≤450Mpa,σs≤350Mpa.)
II. The Technical Flow of The Production Line
Feeding Strip→Uncoiler→Peeler→Five roll Flattening→Shear and End Welder→
Spiral Horizontal Accumulator→Forming Section→High-frequency Induction
Welding→Removing External Burr→Polishing Roller→Water Cooling→Sizing
Section→Friction Cutting Saw→Pull out roller table
