Shanghai Jiangxing Chemical Equipment Co., Ltd.
China Manufacturer with main products: Heat Exchanger, Plate Heat Exchager, Flat Plate Heat Exchanger, Brazed Plate Heat Exchanger, Heat Exchanger Plate, Plate Heat Exchanger... |

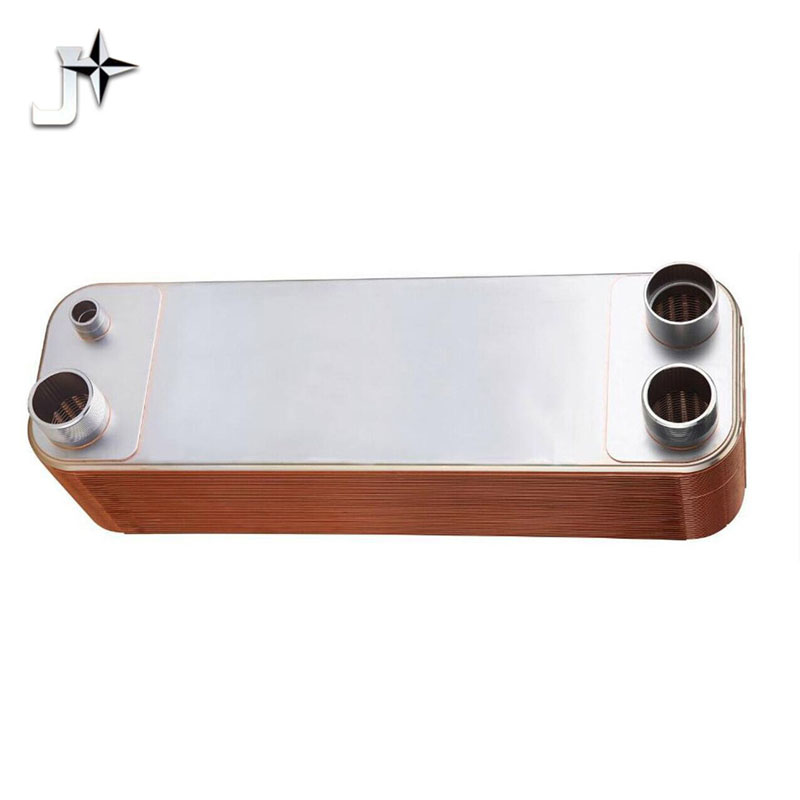

brazed plate heat exchanger for water chiler
| FOB Price: | 30.00 - 1,000.00 USD/Set |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Year |
| Shipping: | FOB Shanghai |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | plywood case |
Quick Details
- Brand Name: JX
Specifications
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
|
plate material |
Stainless steel(SUS304, 316L etc ), Titanium and Nickle |
|
gasket material |
NBR:(applicable temperature -15-+120℃) |
|
Thickness of plate |
0.5mm |
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | Weight(mm) |
Amount of liquid (L) |
Heat transfer area (㎡) |
Maximum flow (m3/h) |
| JXZ14 | 9+2.3N | 76 | 42 | 206 | 172 | 0.7+0.06N | 0.010(N-2) | 0.014(N-2) | 8 |
| JXZ15 | 9+13N | 80 | 42 | 190 | 154 | 0.9+0.06N | 0.010(N-2) | 0.014(N-2) | 12 |
| JXZ20 | 9+21 | 76 | 42 | 310 | 280 | 1.0+0.08N | 0.018(N-2) | 0.020(N-2) | 8 |
| JXZ25 | 9+1.5N | 93 | 39 | 325 | 270 | 1.0+0.09N | 0.014(N-2) | 0.025(N-2) | 8 |
| JXZ26 | 9+2.45N | 111 | 50 | 310 | 250 | 1.3+0.13N | 0.025(N-2) | 0.026(N-2) | 18 |
| JXZ26B | 9+2.45N | 111 | 50 | 310 | 250 | 1.3+0.13N | 0.025(N-2) | 0.026(N-2) | 18 |
| JXZ50V | 9+2.45N | 111 | 50 | 525 | 466 | 2.0+0.23N | 0.047(N-2) | 0.050(N-2) | 18 |
| JXZ50C | 9+2.45N | 111 | 50 | 525 | 466 | 2.0+0.23N | 0.047(N-2) | 0.050(N-2) | 18 |
| JXZ95V | 11+2.43N | 191 | 92 | 616 | 519 | 7.8+0.44N | 0.105(N-2) | 0.095(N-2) | 42 |
| JXZ95B | 11+2.8N | 191 | 92 | 616 | 519 | 7.8+0.44N | 0.125(N-2) | 0.095(N-2) | 42 |
| JXZ95C | 11+2.8N | 191 | 92 | 616 | 519 | 7.8+0.44N | 0.125(N-2) | 0.095(N-2) | 42 |
| JXZ190 | 13+2.65N | 307 | 179 | 699 | 567 | 10+0.51N | 0.217(N-2) | 0.190(N-2) | 140 |
| JXZ210 | 12+2.78N | 321 | 211 | 738 | 599 | 13.085N | 0.225(N-2) | 0.021(N-2) | 100 |
