Home >Products Catalog > Truck_parts_GEAR_GEAR_BOX-09274893

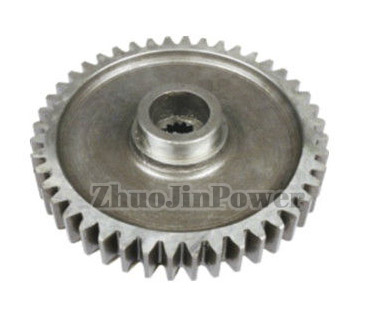

Truck_parts_GEAR_GEAR_BOX-09274893

Inquiry Now

Specifications

SInotruck HOWO Dump Truck / Tipper Truck 336HP/247KW EURO2 6x4

Truck Model					ZZ3257N3647C (LHD)
Truck Brand					SINOTRUK –HOWO
Dimension(Lx W xH)(unloaded)(mm)					8145x2496x3170
Cargo body size (LWH)					5400x2300x1500 18.63cmb
Cargo body thickness(mm)					bottom:8mm, side:6mm
Lift type of Carriage					Ventral lifting
Approaching angle/Departure angle(°)					19/26
Overhang(front/rear) (mm)					1500/1670
Wheel base (mm)				3625+1350
Max speed(km/h)				75
Curb weight(kg)				12450
Loading Weight(kg)				25000
Fuel tanker capacity(L)				300L with locking fuel cap
Clutch				Single-plate dry clutch Φ430mm
Engine Model (Steyr technology, made in China)	Model			WD615.69,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling
	Horse Power, max(kw/rpm)			336HP,247KW/2200
	Emission			EURO II
	Maximum torque			1350Nm @ 1300-1600rpm
	Displacement:			9.726L
	Bore/stroke(mm)			126/130
	Compression ratio:			17:01
	Specific fuel consumption			≤193g/kw.h
	Fuel Type			diesel
Transmission		Model		HW19710,10 forwards and 2 reverse
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
		Auxiliary brake		Engine exhaust brake
Steering system		Model		ZF8098 hydraulic steering with power assistance Ratio:22.2-26.2
Front axle		HF9 , Steering with double T-cross section beam Loading capacity:9000KG
Rear axle		HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg
Chassis		Frame: U-profile parallel ladder frame with section of 300808mm and reinforced subframe all cold riveted cross member Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi –elliptic leaf spring and bogie springs
Color		Optional
Tire		12.00R20 Radial Tire 10+1 spare
Electrical system		Operating voltage	24V,negative grounded
		Starter	24V,7.35KW
		Alternator	28V,1500W
		Batteries	2*12V.165Ah
		Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Cab		HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ohydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Instrument Panel		Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging
