Luoyang Ouna Bearing Co., Ltd.
China Manufacturer with main products: Cross Roller Bearing, Rotary Table Bearing, Angular Contact Ball Bearing, Thrust Rolller Bearing, Slewing Ring |

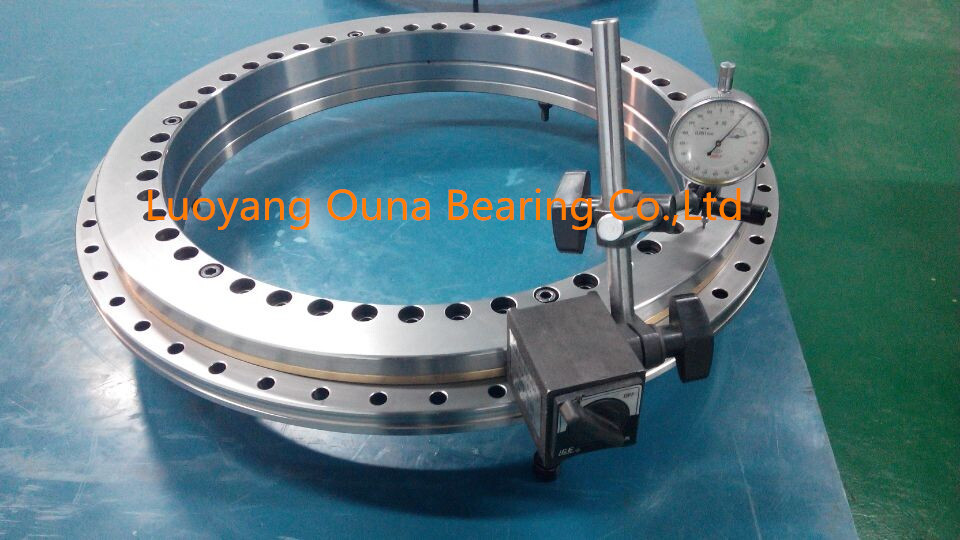

Good quality YRTM rotary table bearing with angular measuring system
| FOB Price: | 1.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | By sea or as your request |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
-
Price:1,000.00-100,000.00 USD/SetMin. Order:1 Set -
Price:0.10-0.50 USD/PieceMin. Order:50,000 Pieces
| Export Markets: | North America, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Seaworthy wooden case |
Quick Details
- Type: Slewing Bearing
- Gear Options: Nongeared
- Feature: Rotary table bearing
- Model Number: YRTM260
- Outside Diameter: 240-600 mm
- Bore Size: 1-1000 mm
- Brand Name: ONA
- material: bearing steel
- Inner ring(mm): 260
- Outer ring(mm): 385
- Height(mm): 36.5
- Weight(kg): 18.3
Specifications
The series bearing is based on the YRT bearing; it is mounted with angle measuring system on the YRT bearing, in order to accurately measure and adjust the angle of the bearing rotating and make sure the high rotation speeds. Measuring system is composed of transmission chain and measuring scale. It adopts pure inductive measurement principle, so the signal, its precision and the precision of measuring is very high.And by using high protective measures, the measurement system will be not disturbed in operation from external ambience, such as Smoke and Dust, mild pollution and scratches, magnetic field. I can work reliably without too much maintenance; the application scope is very wide. It can be applied to high precision rotary table and axis rotation, index head, military radar, aviation, aerospace and the field with the high accuracy of Angle rotation in the measuring and the test.
