Guangzhou Zhongyou Glass Machinery Factory
China Manufacturer with main products: Glass Machine, Glass Processing Material |
3D/5D/Wooden & Marble Design Pattern Transfer Baking Paint Glass Machine
| Supply Ability: | 10 Set(s) per Week |
|---|---|
| Shipping: | three days after received total money |
| Payment Terms: | T/T, cash |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guizhou in China |
| Packaging Details: | packing by protect film |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Brand Name: zhongyou
- Machine Type: Glass Printing Machine
- Condition: New
- Weight: 6000kg
- Dimension(L*W*H): 2200*3500*2700mm
- Power(W): 32kw
- Voltage: 380v
- Model Number: ZY-Y1830
- Production Capacity: 200 square meter
- max glass size: 1830x2440/1220x2440mm
- color: white
- glass thickness: 3-25mm
- machine size: 8000x340x2700mm
- Applicable power: 220/380/440V
- power: 28kw
- labor need: 2 workers
- materials: paper/paint
Specifications

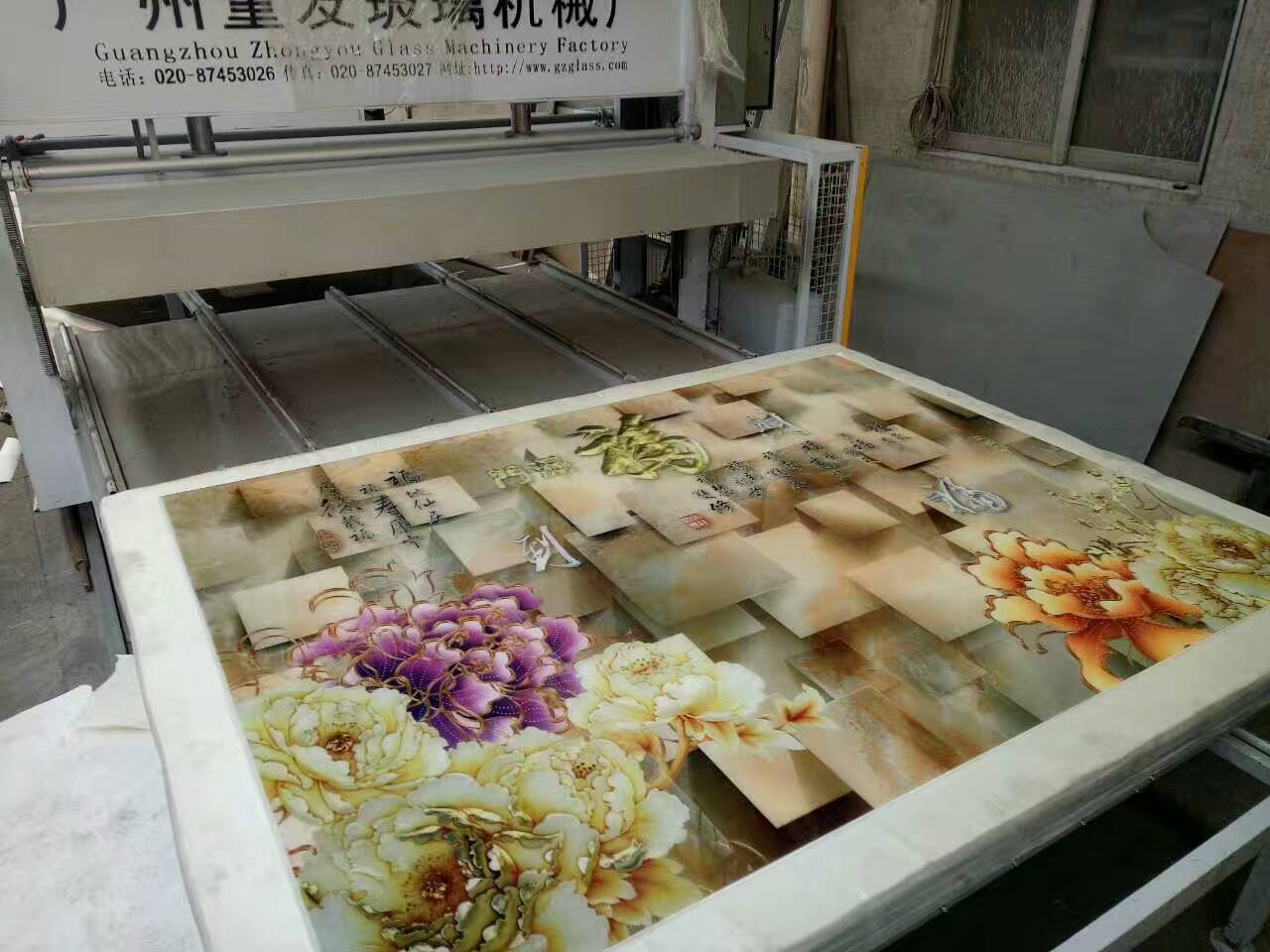

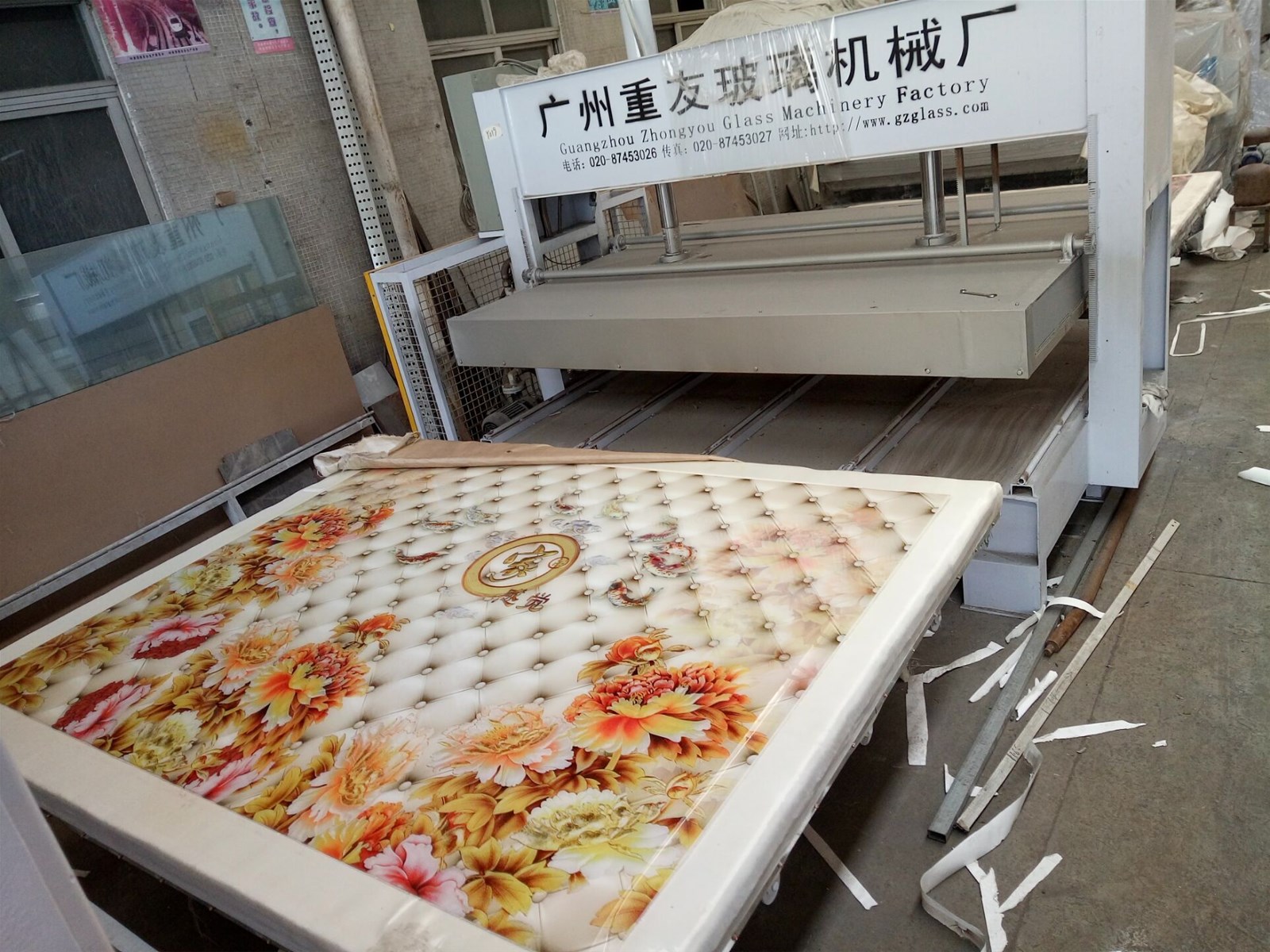

Pattern transfer glass machine Machinery technical data Applicable power:380V power:28KW TemperaturE:200 Times:4-5mins/piece Max. Glass Size:1830*2440mm Thickness: 3-25mm Weight:4000kg Equipment size:8000*3400*2700 mm Function of the machine High efficient,It only takes 4-5 minutes when you finish the glass. Any pattern can baking paint on the glass by our heating principle(Likely popular marble vein and wooden grain effect glass),Scratch-resistant,Waterproof and anti-fadingand so on. Using a wholly alloy aluminum plate as the upper pressure plate, built-in heating transfer oil make heating and pressure uniformity. Finished products still keep perfect even after many time's washing with acid, alkali and water. Operative proCEDure of this machine 1, Cleaning this glass 2,Spraying a layer of coating on the glass by manually or by machine 3,Put the glass and transfer paper together(Remarks: we have more than 70 kinds of marble vein and wooden grain effect color paper on hand)Then put them on the working table. 4,Covering the anti-high-temperature cloth on the glass, then push them in the machine, and waiting for around 5 mins, the art glass is finished(The machine is double workbench that can increase production efficiency greatly).
this machine can be used to process all kinds of color heat transfer glass in a shorter time.
Daily output is increased to 260 square meters per day.
Main Features:
1. the heating plate uses a whole synthesis of aluminum, leaving some holes for the conduction oil,
so that increase the efficiency of heating and provide more even heat (both pre-heating and
Heating time shorten about 1/2).
2. the enclosed design prevents the heat from emanating from the machine too quickly.
this enables a rapid increase of the temperature to save energy and a slow emission of the heat
to avoid glass breaking due to a huge temperature gap. this is specially designed for the customers
in the cold north.
Model Number |
Equipment Size(m) |
Max. Glass Size(m) |
Power(kw) |
Voltage(v) |
Equipment Weight(kg) |
ZY-A1830 |
7.7*3.5*2.7 |
1830*2.44 |
380 |
6000 |
