Quick Details
- Model Number: LX1500
- Brand Name: CICQ
Specifications
PRESTRESSED CONCRETE POLE MAKING MACHINE
Supply all matching equipment used in the production line
1. ready mix concrete batching plant, mainly need JS concrete mixer, concrete batcher, cement bin
2.steel rebar production, need wire straightening and cutting machine, winding machine, steel bar coil machine
3. form steel wire cage in the half mold,need tensioning machine, button head machine, flange plate
4. filling concrete into half open mold, need automatic concrete feeding machine
5. put two halves of mold together and place onto centrifugal spun machine for 15minutes, need bridge crane, hanging rod
6. steam curing into steam pool for better poles solidity and fast dry time, about 4 hours, need steam boiler
7. demoulding: check appearance of concrete pole and repair defects if there is any. need tesing machine
8. transfer poles to outdoor, need poles shifting trolley, gantry crane
MATERIAL AND DESIGN SERVICE
1. Mold material: Q235B, with thickness10mm

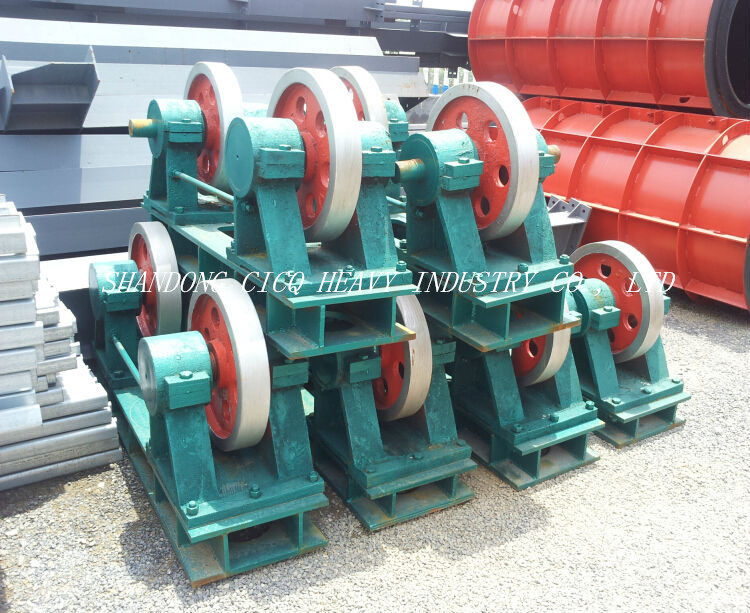

Centrifugal machine running wheel material: cast steel 45(wear resistance)
2. Our engineer guaranteed the high fittness between mold and spinning machine wheel, with years' experience.
The soild and intensity of pole can be assured to avoid any vibration
3. We provide installation, commissioning, trainning, and log lifemold maintenance
new fatory layout and equipment selection, old factory improvement
2. Parameter
No. Item Unit Model
Double-wheel Three-wheel
1 Riding wheel thread MM 1870
2 Riding wheel wheelbase MM 1500-2800
3 Riding wheel external diameter MM 800-920
4 Riding wheel width MM 100
5 Angle between wheel center and the center of steel mould (°) 75°-110
6 The Max. length of molding drainage pipe M 2-4
7 The Max. diameter of molding drainage pipe Plain top/tongue and groove/pipe-jacking MM Φ2600 Φ1800
Bell and spigot Φ1800 Φ1800
8 The motor power KM 37-90 55-132
9 The range of speed of main drive axle r/min 100-500(continuous) 100-500(continuous
The production efficiency is determined by mould turnover.
Each mold could produce 2 poles per day.
More details and price info, welcome to contact me. Daisy Lee
