Shenda Electric Group Co., Ltd.
China Manufacturer with main products: Power Transformer, Distribution Transformer, Furnance Transformer, Rectifier Transformer, Dry Trype Transformer |

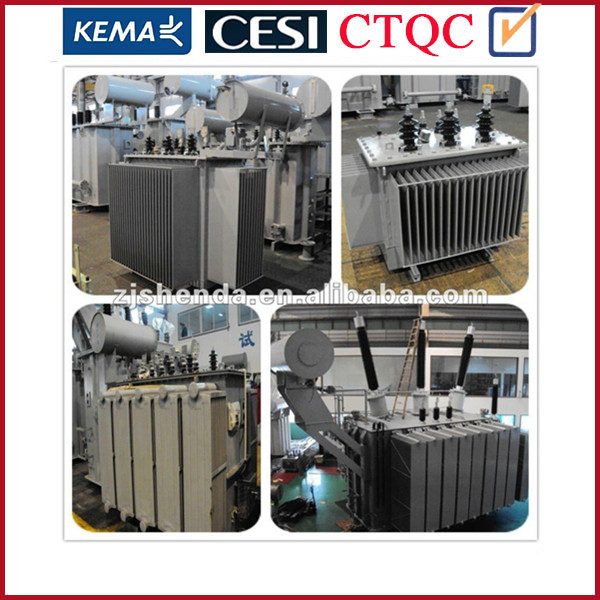

100kva Distribution Transformer
| FOB Price: | 3,000.00 - 60,000.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Unit/Units per Year |
| Shipping: | 1-3 months after order |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | sea worthy packing |
Quick Details
- Model Number: 1000/11
- Brand Name: EACHER
Specifications
Specifications
1) Top 1 in China: 120MVA EAF trans.
2) ISO9001,ISO14001,CE
3) Apply for IEC, JB, ANSI
4) Up to 220kV, 200MVA
?Main function and features
Furnace transformers are separated with normal power transformer with its characteristic of massive secondary currents which are the main products of Shenda Electric with many advantages both on quality and price. As an example a 30MVA unit at 150V would result in a secondary current of 115 kilo ampere. For these high secondary currents special bushings are required to be connected to the bus-bars. These bushings are specified with very specific arrangements to suit the bus-bar arrangement and cooling system. Furnace bus-bar are mostly water-cooled. The cooler are either of the oil forced (OFAF) or Oil forced water OFWF).
Shenda electric is renowned and appreciated by its reliable products performance and integrated services.
Features:
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability .
6) Operation reliability
7) Easy maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage
Brief specification
1) Voltage class: 6~110 KV
2) Capacity : 630 KVA to 120,000 KVA
3) Short-circuit impedance : 4.5~21%
4) Losses : No-load losses is fully comply with IEC standard requirements
35kV Arc Furnace Transformer Technical Parameters
| Type |
Rated power (kVA) |
Connection symbol |
Primary voltage (kV) |
Secondary Voltage (v) |
Regulation voltage step | Type of taping | short-circuit impedance(%) | No-load loss | On-load loss |
| HSSPZ-1500/35 | 1500 | Yd11 | 35 | 290~157 | 10 | On-load | 5.5 | 2.6 | 23 |
| HSSP-3200/35 | 3200 | D-Y,d0-11 | 35 | 240~138 | 4 | No-load | 7 | 5.3 | 41.1 |
| HSSPK-3200/35 | 3200 | D-Y,d0-11 | 35 | 240~138 | 5 | No-load | 18.65 | 5.3 | 91.1 |
| HJSSP-5000/35 | 5000 | Yd11 | 35 | 212~155 | 5 | No-load | 7.5 | 9.3 | 55 |
| HJSSP-5500/35 | 5500 | Yd11 | 35 | 240~130 | 6 | No-load | 7 | 9.1 | 52.5 |
| HJSSP-7000/35 | 7000 | Yd11 | 35 | 240~140 | 8 | No-load | 6.5 | 9.4 | 77 |
| HJSSPZ-9000/35 | 9000 | Yd11 | 35 | 239~163 | 9 | On-load | 8.5 | 11.6 | 97 |
| HSSP-9000/35 | 9000 | Yd11 | 35 | 320~180 | 8 | No-load | 6 | 11 | 116 |
| HJSSPZ-10000/35 | 10000 | Yd11 | 35 | 260~188 | 9 | On-load | 8.5 | 17.2 | 187 |
| HSSPZ-10000/35 | 10000 | Yd11 | 35 | 300~160 | 13 | On-load | 6.5 | 12 | 97 |
| HSSPZ-12500/35 | 12500 | Yd11 | 35 | 250~150 | 9 | On-load | 9 | 19.7 | 134 |
| HSSP-12500/35 | 12500 | Yd11 | 35 | 340~195 | 11 | No-load | 8 | 13.9 | 154 |
| HSSP-15000/35 | 15000 | D-Y,d0-11 | 35 | 353~160 | 8 | No-load | 8 | 20 | 107 |
| HSSPZ-16000/35 | 16000 | Yd11 | 35 | 375~200 | 15 | On-load | 7 | 16.4 | 16.1 |
| HJSSPZ-16000/35 | 16000 | Yd11 | 35 | 310~190 | 13 | On-load | 7 | 19.2 | 195.6 |
| HSSPZ-20000/35 | 20000 | Yd11 | 35 | 400~270 | 13 | On-load | 7 | 20.7 | 207.7 |
| HJSSPZ-20000/35 | 20000 | Dd0 | 35 | 320~170 | 11 | On-load | 6.5 | 30.4 | 30.4 |
| HSSPZ-25000/35 | 25000 | Yd11 | 35 | 509~302 | 13 | On-load | 7.5 | 28.5 | 28.5 |
Application:
Arc furnaces are used in steel industry for smelting scrap iron and for refining steel. Other application areas are :
1) Smelting glass and ceramics
2) Manufacturing or refining many other materials etc. ferrochromium, ferromanganese, different abrasive materials (oxides and nitrides), semiconducting base materials, nanopowders etc.
3) Electric arc furnace (EAF) transformers are required for many different furnace processes and applications . they are built for :
a , Steel furnaces, mainly long arc
b, Landle furnaces
c, ferro-alloy furnace and similar with short or submerged are
d,Smelting of other materials
