China Yongjia Goole Valve Co., Ltd.
China Manufacturer with main products: Pressure Reducing Valve, Steam Trap, Pressure Control Valve, y Type Strainer, Bellow Seal Globe Valve, Basket Straienr, Safety Valve, Bellow... |
DIN spring loaded pressure safety valve
| FOB Price: | 16.00 - 1,500.00 USD/Set |
|---|---|
| Supply Ability: | 500 Set/Sets per Month |
| Shipping: | Ningbo or Shanghai |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | plywood case |
Quick Details
- Brand Name: GOOLE,other
- Model Number: 900/901/902/911/912
- Port Size: DN15-250
- Media: Water
- Temperature of Media: Medium Temperature
- Material: Stainless Steel
- Power: Manual
- Pressure: Medium Pressure
- Structure: Safety
- Standard or Nonstandard: Standard
Specifications

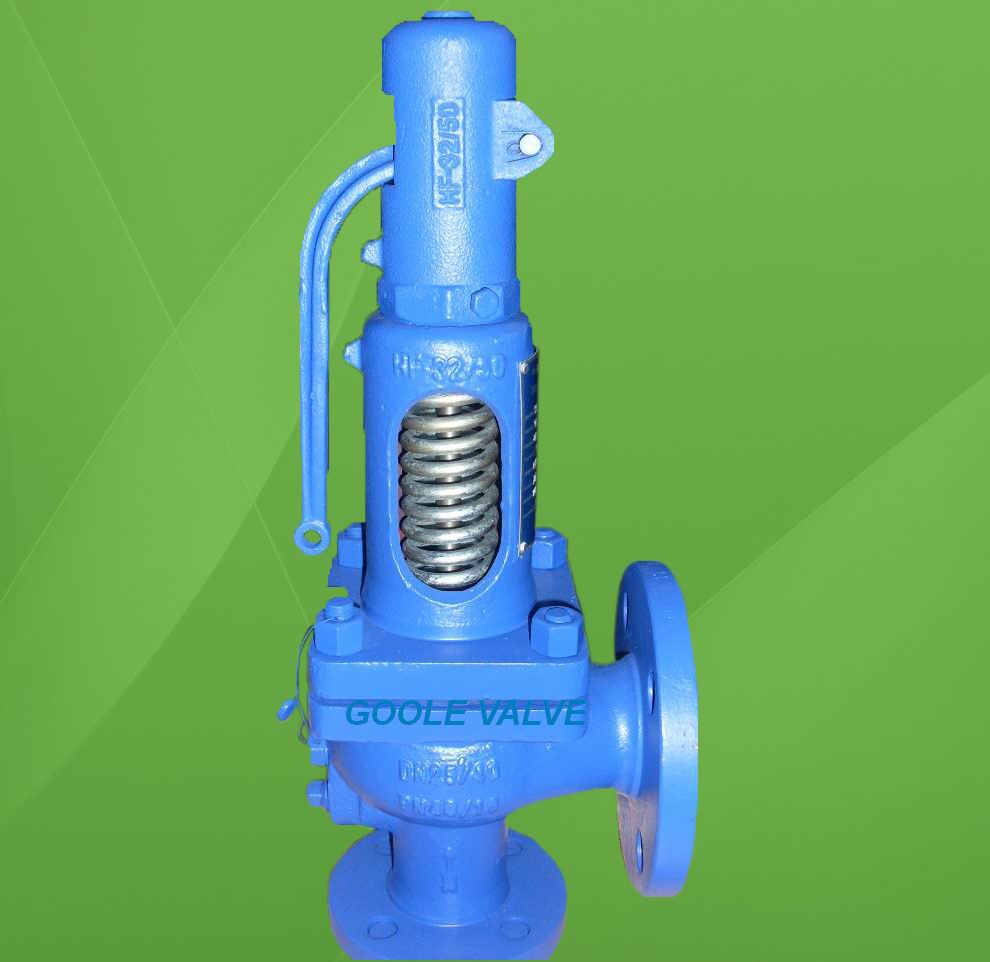

900 DIN Spring loaded Pressure Safety Valve
DIN Standard Safety Valve Features:
Safety valves were first used on steam boilers during the industrial revolution. Early boilers without them were prone to accidental Explosion.
Safety valves also evolved to protect equipment such as pressure vessel (fired or not) and heat exchangers. Safety valve term should be limited to compressible fluid application (gas, vapor, steam).
The two general types of protection encountered in industry are thermal protection and flow protection.
For liquid-packed vessels, thermal relief valves are generally characterized by the relatively small size of the safety valve necessary to provide protection from excess pressure caused by thermal expansion. In this case a small valve is adequate because most liquids are nearly incompressible, and so a relatively small amount of fluid discharged through the relief valve will produce a substantial reduction in pressure.
DIN Standard Safety Valve Specification
|
Type |
Nominal Pressure |
Body Material |
Nominal Diameter |
Working Temp. |
|
901/902/911/912 |
PN40/16 |
1.0619+N |
DN20/32-DN150/250 |
-10C～450C |
|
901/911 |
PN40/16 |
1.4408 |
DN20/32-DN100/150 |
-60C～400C |
|
DN |
20/32 |
25/40 |
32/50 |
40/65 |
50/80 |
65/100 |
80/125 |
100/150 |
120/200/ |
150/250 |
|
Throat Diameter do (mm) |
18 |
22 |
29 |
36 |
45 |
58 |
72 |
80 |
100 |
125 |
|
Orifice Area Ao(mm) |
254 |
398 |
661 |
1018 |
1590 |
2688 |
4072 |
6362 |
8825 |
12266 |
|
Weight (Kg) |
8.5 |
10 |
14 |
20 |
28 |
40 |
53 |
80 |
125 |
165 |
