18000KVA 3 phase dry type transformer
| FOB Price: | 10,000.00 - 80,000.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Unit/Units per Year |
| Shipping: | 1-3 months after order |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | sea worthy packing |
Quick Details
- Coil Structure: Toroidal
- Phase: Three
- Usage: Power
- Model Number: SCB10,SG10-18000KVA/35-0.4KV
- Brand Name: EACHER
Specifications
Specifications
1) ISO9001,ISO14001,CE,CTQC
2) Apply for IEC, ANSI,GB,JB
3) epoxy cast resin and open type

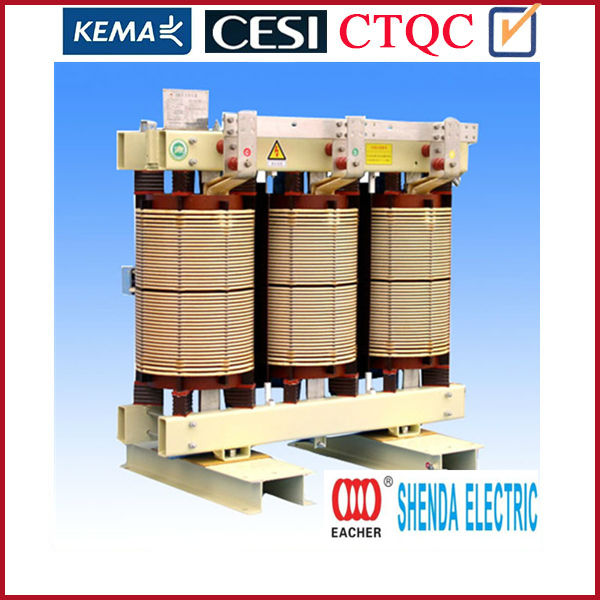

18000KVA 3 phase dry type transformer
?Application Of Products
Our SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically . The core is made of high-permeable grain-orientated silicon sheet and cast with imported epoxy resin. Thanks to advanced technology, quality raw materials , scientific management, and perfect inspection means ,our products have the following features:
The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life.
The high-and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture; the clamps of core are subjected to corrosion-resistant treatment and it may run under high temperature or other serious environments.
Flame retardancy , explosion-proof and no environmental contamination. The insulating materials in the coil such as glass fiber are self-extinguishing and they will not cause fire by the arc resulted from short-circuit . The resin will not generate toxic or harmful gas under high temperature.
Gas duct is embedded inside it to enhance the radiation power and over-load capacity.
Low loss and low noise. The core is lapped with 45 full-miter and the step-type lamination effectively improves distribution of magnetic flux at core corners, and greatly reduces the no-load loss and the nose level.
It highly withstands short-circuit and lightning impact.
Small in volume, light in weight, safe in running and free of maintenance.
As per users' requirements the transformer may be provided with casing and blower fan.
?Main Technical Parameters for 10kV SC(B) -30-2500 type 3 phase cast resin
dry type transformer
|
Rated power (kVA) |
High Voltage (kV) |
H.V Tap range |
Low Voltage (kV) |
Connection Symbol |
Short-Circuit Impedance (%) |
No-load Loss (W) |
On-Load Loss (W) |
No-load Current (%) |
Insulation Class |
Noise (dB) |
Weight (kg) |
Overall dimension(mm) |
Gauge (mm) |
||||
|
SC(B) 9 |
SC(B) 10 |
SC(B) 9 |
SC(B) 10 |
L | W | H | |||||||||||
| 30 |
6 6.3 10 10.5 11 |
±5% OR ±2×2.5% |
0.4 |
Yyn0 Dyn11 |
4 | 220 | 190 | 750 | 710 | 2.3 | F | 40 | 330 | 990 | 660 | 760 | 550×550 |
| 50 | 310 | 270 | 1060 | 1000 | 2.2 | 40 | 360 | 1000 | 660 | 790 | 550×550 | ||||||
| 80 | 420 | 370 | 1460 | 1380 | 1.7 | 40 | 470 | 1050 | 660 | 820 | 550×550 | ||||||
| 100 | 450 | 400 | 1670 | 1570 | 1.7 | 40 | 520 | 1080 | 660 | 860 | 550×550 | ||||||
| 125 | 530 | 470 | 1960 | 1850 | 1.5 | 41 | 620 | 1120 | 760 | 900 | 660×660 | ||||||
| 160 | 610 | 540 | 2250 | 2130 | 1.5 | 42 | 790 | 1200 | 760 | 950 | 660×660 | ||||||
| 200 | 700 | 620 | 2680 | 2530 | 1.3 | 42 | 880 | 1240 | 820 | 1100 | 660×720 | ||||||
| 250 | 810 | 720 | 2920 | 2760 | 1.3 | 44 | 1000 | 1100 | 820 | 1160 | 660×720 | ||||||
| 315 | 990 | 880 | 3670 | 3470 | 1.1 | 46 | 1120 | 1110 | 820 | 1240 | 660×720 | ||||||
| 400 | 1100 | 980 | 4220 | 3990 | 1.1 | 46 | 1360 | 1130 | 820 | 1360 | 660×720 | ||||||
| 500 | 1310 | 1160 | 5170 | 4880 | 1.1 | 47 | 1460 | 1140 | 820 | 1430 | 660×720 | ||||||
| 630 | 1510 | 1340 | 6220 | 5880 | 0.9 | 47 | 1530 | 1280 | 820 | 1350 | 660×720 | ||||||
| 630 | 6 | 1460 | 1300 | 6310 | 5960 | 0.9 | 47 | 1570 | 1280 | 820 | 1300 | 660×720 | |||||
| 800 | 1710 | 1520 | 7360 | 6960 | 0.9 | 48 | 1850 | 1290 | 820 | 1430 | 660×720 | ||||||
| 1000 | 1990 | 1770 | 8610 | 8130 | 0.9 | 48 | 2320 | 1420 | 960 | 1480 | 820×910 | ||||||
| 1250 | 2350 | 2090 | 10260 | 9690 | 0.9 | 49 | 2690 | 1430 | 960 | 1620 | 820×910 | ||||||
| 1600 | 2760 | 2450 | 12400 | 11730 | 0.9 | 50 | 3130 | 1460 | 960 | 1750 | 1070×910 | ||||||
| 2000 | 3400 | 3050 | 15300 | 14450 | 0.7 | 52 | 3600 | 1900 | 1255 | 1940 | 1070×1205 | ||||||
| 2500 | 4000 | 3600 | 18180 | 17170 | 0.7 | 55 | 4560 | 2030 | 1255 | 2020 | 1070×1205 | ||||||
|
Note: All listed parameters just for your reference, the final data will be based on the drawing of our products,meanwhile they can be adjusted as per customers' requirement. |
|||||||||||||||||
