6mva 6 mva 11kv 33kv 3 phase epoxy cast resin dry type power transformer
| FOB Price: | 4,000.00 - 40,000.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Unit/Units per Year |
| Shipping: | 1-3 months after order |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | sea worthy packing |
Quick Details
- Coil Structure: Toroidal
- Phase: Three
- Usage: Power
- Model Number: SCB9,SCB10
- Brand Name: EACHER
Specifications
Specifications
1) dry type power transformer
2) 6mva 6 mva dry type power transformer
3) epoxy cast resin and dry type
6mva 6 mva 11kv 33kv 3 phase epoxy cast resin dry type power transformer

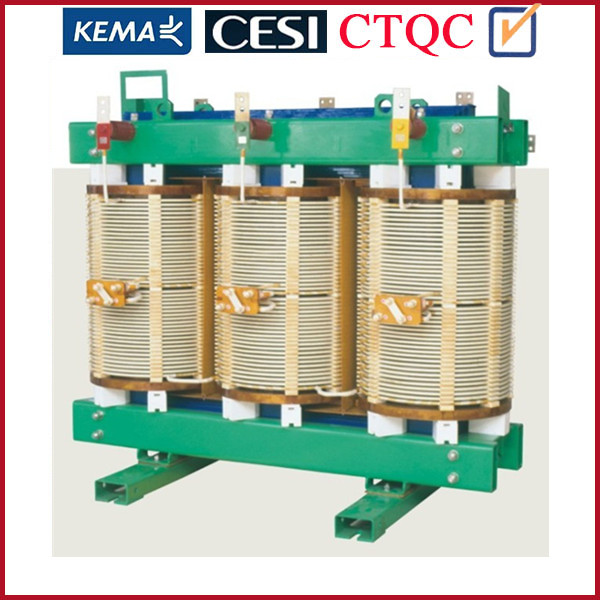

Dry type power transformer
The dry type power transformer cast under vaccum with epoxy resin,can be equiped with temperature controller,fans,encloser,etc. As per users' requirements.
The winding material is Aluminum or Copper ,there's a gas duct inside,and having high heat radiating and over-load ability. It has good mechanical properties, is free of crack and inner bubble and has low local discharge, high reliability, and long service life .
Our transformer is explosion-proof ,hard to flame, and no environmental pollution. Small in volume, light in weight, safe in running and free of maintenance.
SHENDA ELECTRIC is always dedicated to providing high quality dry type power transformer and best service for you,corporating with you,believe in that we will become your best reliance
?Main Technical Parameters for 10kV SC(B) -30-2500 type 3 phase cast resin
dry type power transformer
|
Rated power (kVA) |
High Voltage (kV) |
H.V Tap range |
Low Voltage (kV) |
Connection Symbol |
Short-Circuit Impedance (%) |
No-load Loss (W) |
On-Load Loss (W) |
No-load Current (%) |
Insulation Class |
Noise (dB) |
Weight (kg) |
Overall dimension(mm) |
Gauge (mm) |
||||
|
SC(B) 9 |
SC(B) 10 |
SC(B) 9 |
SC(B) 10 |
L | W | H | |||||||||||
| 30 |
6 6.3 10 10.5 11 |
±5% OR ±2×2.5% |
0.4 |
Yyn0 Dyn11 |
4 | 220 | 190 | 750 | 710 | 2.3 | F | 40 | 330 | 990 | 660 | 760 | 550×550 |
| 50 | 310 | 270 | 1060 | 1000 | 2.2 | 40 | 360 | 1000 | 660 | 790 | 550×550 | ||||||
| 80 | 420 | 370 | 1460 | 1380 | 1.7 | 40 | 470 | 1050 | 660 | 820 | 550×550 | ||||||
| 100 | 450 | 400 | 1670 | 1570 | 1.7 | 40 | 520 | 1080 | 660 | 860 | 550×550 | ||||||
| 125 | 530 | 470 | 1960 | 1850 | 1.5 | 41 | 620 | 1120 | 760 | 900 | 660×660 | ||||||
| 160 | 610 | 540 | 2250 | 2130 | 1.5 | 42 | 790 | 1200 | 760 | 950 | 660×660 | ||||||
| 200 | 700 | 620 | 2680 | 2530 | 1.3 | 42 | 880 | 1240 | 820 | 1100 | 660×720 | ||||||
| 250 | 810 | 720 | 2920 | 2760 | 1.3 | 44 | 1000 | 1100 | 820 | 1160 | 660×720 | ||||||
| 315 | 990 | 880 | 3670 | 3470 | 1.1 | 46 | 1120 | 1110 | 820 | 1240 | 660×720 | ||||||
| 400 | 1100 | 980 | 4220 | 3990 | 1.1 | 46 | 1360 | 1130 | 820 | 1360 | 660×720 | ||||||
| 500 | 1310 | 1160 | 5170 | 4880 | 1.1 | 47 | 1460 | 1140 | 820 | 1430 | 660×720 | ||||||
| 630 | 1510 | 1340 | 6220 | 5880 | 0.9 | 47 | 1530 | 1280 | 820 | 1350 | 660×720 | ||||||
| 630 | 6 | 1460 | 1300 | 6310 | 5960 | 0.9 | 47 | 1570 | 1280 | 820 | 1300 | 660×720 | |||||
| 800 | 1710 | 1520 | 7360 | 6960 | 0.9 | 48 | 1850 | 1290 | 820 | 1430 | 660×720 | ||||||
| 1000 | 1990 | 1770 | 8610 | 8130 | 0.9 | 48 | 2320 | 1420 | 960 | 1480 | 820×910 | ||||||
| 1250 | 2350 | 2090 | 10260 | 9690 | 0.9 | 49 | 2690 | 1430 | 960 | 1620 | 820×910 | ||||||
| 1600 | 2760 | 2450 | 12400 | 11730 | 0.9 | 50 | 3130 | 1460 | 960 | 1750 | 1070×910 | ||||||
| 2000 | 3400 | 3050 | 15300 | 14450 | 0.7 | 52 | 3600 | 1900 | 1255 | 1940 | 1070×1205 | ||||||
| 2500 | 4000 | 3600 | 18180 | 17170 | 0.7 | 55 | 4560 | 2030 | 1255 | 2020 | 1070×1205 | ||||||
|
Note: All listed parameters just for your reference, the final data will be based on the drawing of our products,meanwhile they can be adjusted as per customers' requirement. |
|||||||||||||||||
