high quality Marine Autopilot

Supply Ability:	300 Set/Sets per Month
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Air Capstan, Panama Chocks, Bitts, Manila Moori...

Price:100000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton

Specifications

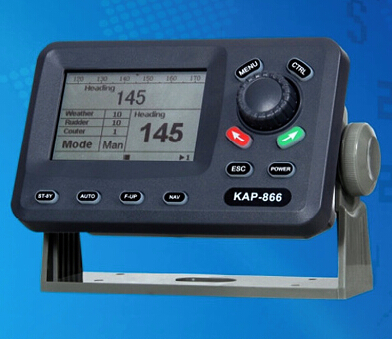

Marine 4.5" LCD Autopilot System

Model: KAP-866

Feature:

1) Fluxgate heading sensor with high accuracy and stability

2) Automatic correction for local magnetic variation

3) 4.5 silver bright LCD display

4) Off course alarm warns when vessel is not responding to autopilot control

5) Navigate with designed route of GPS Navigator

6) Timer can be used as an adjustable watch alarm

7) Gyro compass input with Gyro converter unit

Specification of KAP-866

Function

1) Auto mode:

- Change course by panel dial knob

- Change course by fix or handheld

Remote (optional)

2) Standby mode

3) GPS Navigation mode

4) Follow UP mode

Steering system

Hydraulic or Electro-mechanical

Heading sensor

1) Fluxgate heading sensor (standard)

2) Gyro compass thru Gyro converter (optional)

Nav sensor

GPS Navigator: NMEA0183, APA, APB (baud rate: 4800)

Heading input: NMEA0183, HDT, HDG or HDM (baud rate: 4800)

Adjustment of parameters

Weather, Rudder and Counter Rudder from Control menu

Trim, Rudder Ratio and Rudder Limit from Function menu

Alarm

1) Off course alarm: 0~180 degree adjustable

2) Watch alarm: 1~60 adjustable watch alarm.

Will trigger external alarm if not reset within 60 sec.

3) NMEA data alarm: Trigger when lost of NMEA data from GPS Navigator in GPS

Power Supply

12V or 24VDC, Standby 0.4A, Auto mode 1.0A for control unit only

Equipment List

- KAP-866 control unit

- Rudder Feedback unit KRF-36

- Fluxgate heading sensor KFG-25

- Standard accessories

- Standard installation kit

- Operator manual

Optional

- Outdoor Fluxgate Compass KFG-28

- Rudder Indicator KRI-80

- Hand Remote Control RT-580

- Electric Steering Helm, ELEWHEEL

- Compass Top Sensor KCS-20

- Gyro to NMEA Converter KGN-100
