LED anti explosive light 40W-100W gas station light
| Shipping: | by air / sea / couriers (DHL, UPS, FedEx, TNT...) |
|---|---|
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | seperate packing |
Quick Details
- Item Type: Street Lights
- Light Source: LED
- Brand Name: Wayfond / neutral / OEM
- Warranty(Year): 5
- Certification: CE,PSE,RoHS,SAA,UL
- IP Rating: IP68
Specifications

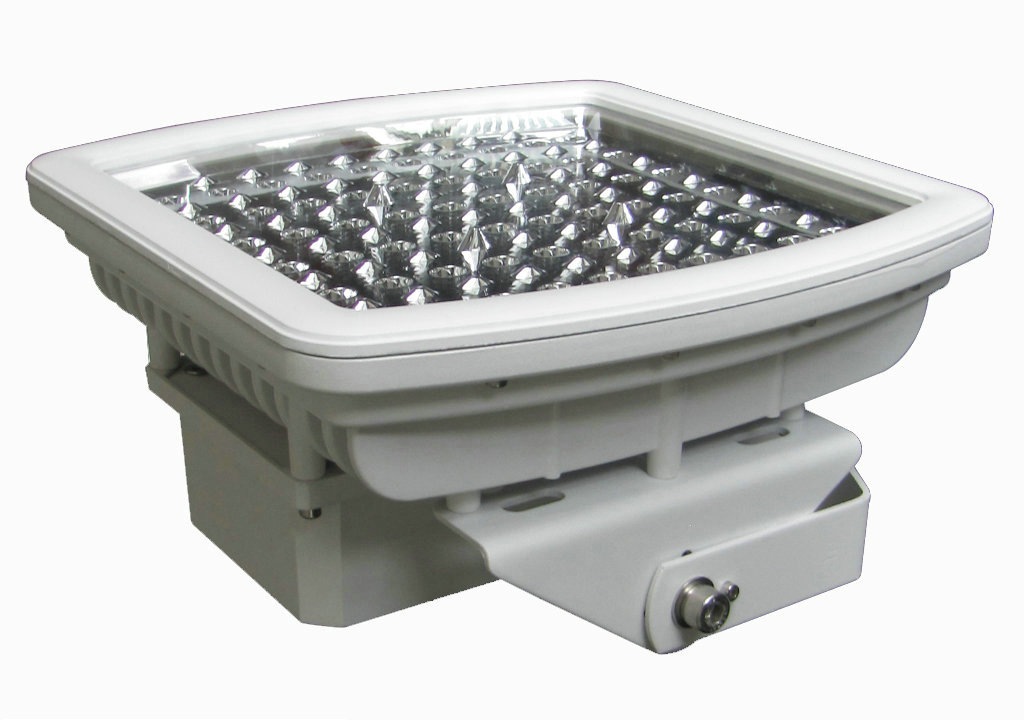

LED Anti Explosive Light:
Wall Mount
DIMENSIONS
LENGTH : 300mm
WIDTH : 300mm
HEIGHT : 175mm
WEIGHT: 7.5 KG
LED LIGHT ENGINE
l High quality Bridgelux 700Ma 45Mil
l Efficacy : up to 150lm @ 350mA (per watt)
l Rated Life of 100,000+ hrs
l Operation temp: -30 oC to +40 oC
l No toxic chemicals/Rohs compliant
l 70%-80% saving compare to HPS/MH
PRODUCT FEATURE
l 5 years warranty
l Highest Ingress Protection rating : IP68
APPEARANCE
l Material: Die Cast Aluminum
l Light Color option: Cool White
Warm White
Custom color
l LENS: Super Clear Tempered Glass
ELECTRICAL CHARACTERISTICS
l Wide AC input: 90-305 VAC
l (UL marking: 100-240VAC/277VAC)
l Power Factor: ~0.98
l Total Harmonic Distortion: < 10%
l Surge protection: IEC/EN 61000-4-5
l EMC test standard
INSTALLATION
l Easy installation – plug and play
l Wall mount bracket
QUALIFICATION
l CE: Recognition with CNAS
l ISO 14001: Recognition with IAF & CNAS
l ISO 9001: Recognition with IAF & CNAS
l UL Certify : ANSI/UL 1598 & ANSI/UL 8750
Note
Item No.
Description
Total Power
Reflector/wide angle
NOMINAL LUMENS
DRIVE CURRENT
LED Qty
SYSTEM EFFICACY
UL/CE Certify
WF-AE100
Replacing 250-300w HPS
100
Optional for both
9,300
300 mA
84
90 LM/W
UL/CE Certify
WF-AE80
Replacing 250-300w HPS
80
Optional for both
6,800
350 mA
60
90 LM/W
CE Certify
WF-AE60
Replacing 150-200w HPS
60
Optional for both
5,580
300 mA
60
93 LM/W
UL/CE Certify
WF-AE40
Replacing 100-150w HPS
40
Wide angle
3,720
350mA
36
93 LM/W
*Total power consumption may vary due to installation location.
*actual product may vary from picture show.
