Yantai Sunshine Industry & Trade Co., Ltd.
China Manufacturer with main products: Auto Maintenance Equipments, Tyre Changer, Wheel Balancer, Car Spray Booth, Auto Body Frame Machine, Wheel Alignment Machine, Tire Repair... |

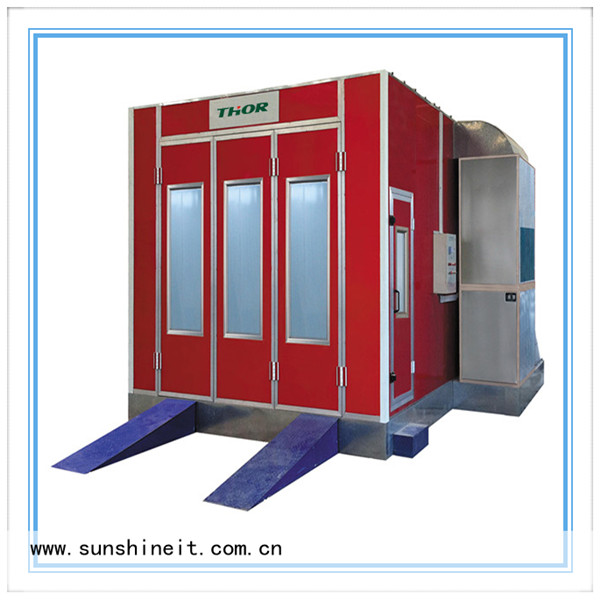

China manufacture high quality automotive paint room
| FOB Price: | 5,800.00 - 7,950.00 USD/Unit |
|---|---|
| Supply Ability: | 50 Unit/Units per Month |
| Shipping: | 15 working days after receiving deposit by sea |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Africa, Oceania, Mid East, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Standard exported packed,wood frame and iron frame easy to load and unload,or simple packaging |
Quick Details
- Type: Spray Booths
- Model Number: ST-400
- Brand Name: THOR
- Voltage: 220V 50HZ 1PH for lights, 380V 50HZ 3PH for Motor
- Internal Size: 6900x3900x2600mm
- External Size: 7000x5100x3300mm
- Power: 30kw
- Usage: Painting and Baking Cars
- Color: Red/Blue + White or According to Your Requirement
- Air flow speed: 0.25m/s
- Noise: < 70 db(A)
- Weight: 2.6T
- Warranty: 12 months
Specifications
|
Model |
ST- 400 |
|
|
Size |
Outside dimension |
7000×5100×3300mm(LxWxH) |
|
Inside dimension |
6900×3900×2600mm(LxWxH) |
|
|
The size of door |
2870×2500mm(WxH) |
|
|
Total power |
30KW |
|
|
Intake air fan |
2 units of 3KW |
|
|
Air volume |
10000m3/h |
|
|
Air flow speed |
0.25m/s |
|
|
Noise |
< 70 db(A) |
|
|
Room body system |
Selects the high quality color steel polystyrene board, insulation board thickness of 50 mm,single-layer thickness of 0.32 mm,foam density of 10 kg/m3, the top adopt 0.6mm , the top frame using 40 * 80 square tube welding, strong and safe. |
|
|
Entrance door and side door |
3-Folded entrance door with safety glass window,cover with aluminium alloy edge,the external latch and plating flipping round steel bolt.Seams are filled with sealing joint strip,ensure sealing effect.A security door, equipped with safety pressure lock device. |
|
|
Heating system |
Using carbon fiber far infrared electric heating tube as the heat source, total power of 24KW,1 kw/group;three channel control, each channel is 8 kw,respectively the workpieces on the left, right and the rear of the bake paint. |
|
|
Air bellow |
Size: 2000x1000 mm;framework with 40x40 mm galvanized square pipe welding,the galvanized plate with outer skin,overall is elegant appearance, separated from the room body 100 mm,prevent produce resonance with room body. |
|
|
Fan |
Adopt YDW series air-conditioned fan is Siemens Technology,novel structure, small volume,large air flow, small vibration, low noise.Equipped with 2 sets of 3 kw full pressure fan,a single air volume is 10000 m3 / h, room air flow is 0.25m/s,room ventilation frequency is 260 times/h. |
|
