Guangzhou Queenswing Solar Energy Co., Ltd.
China Manufacturer with main products: Hybrid Solar Inverter, Solar Inverter, Low Frequency Inverter, Split Phase Inverter, Power Inverter, Pure Sine Wave Inverter, Modified Sine... |
Home
>Products Catalog > Hybrid Solar Inverter > 1KVA/1KW 12VDC 230VAC Pure Sine Wave 40A MPPT Hybrid Solar Power Inverter with 600W PV Input 20-150VDC

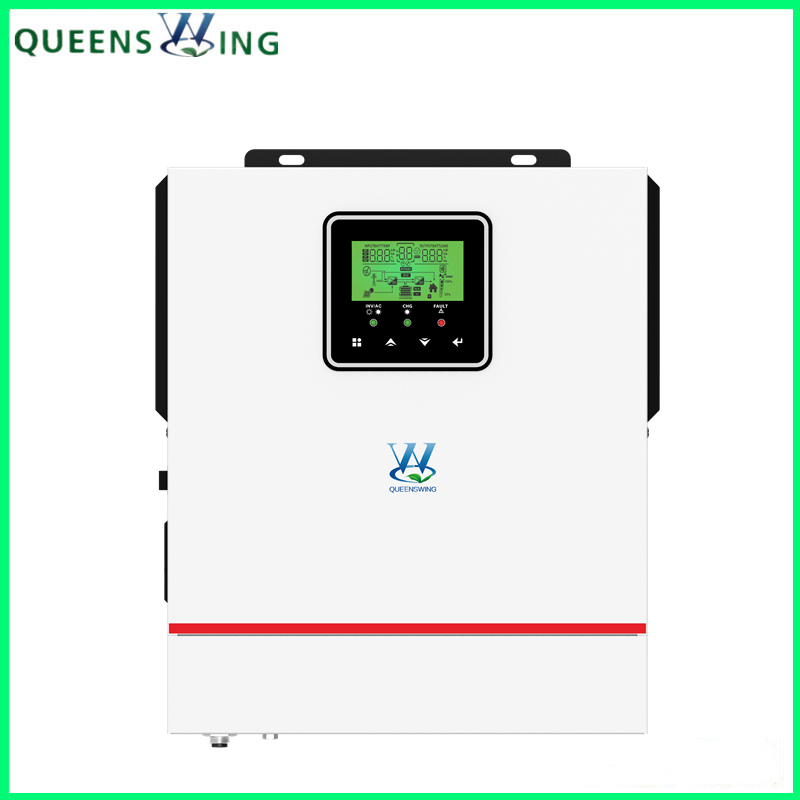

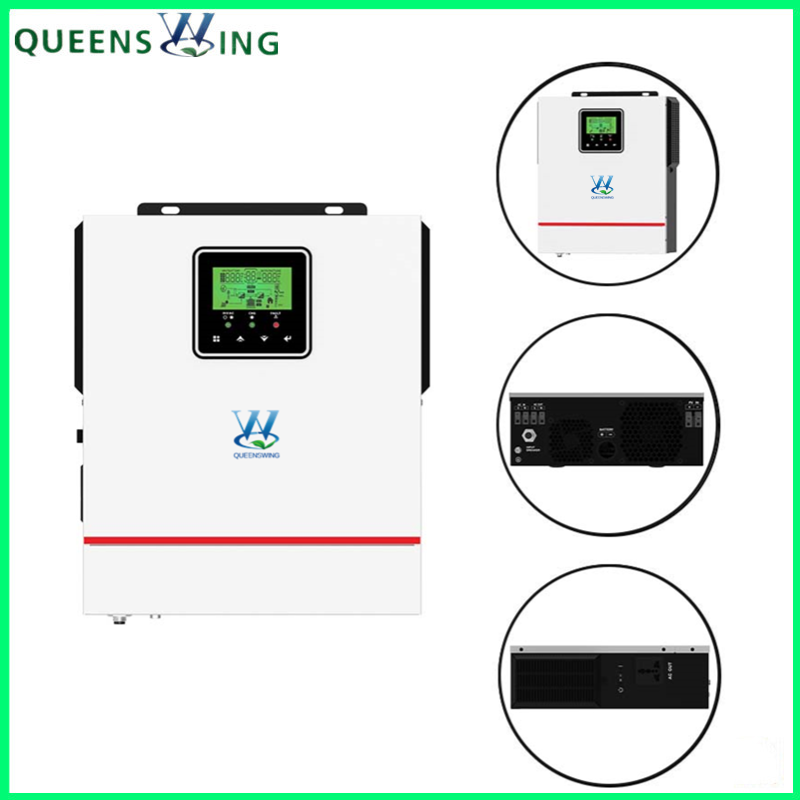

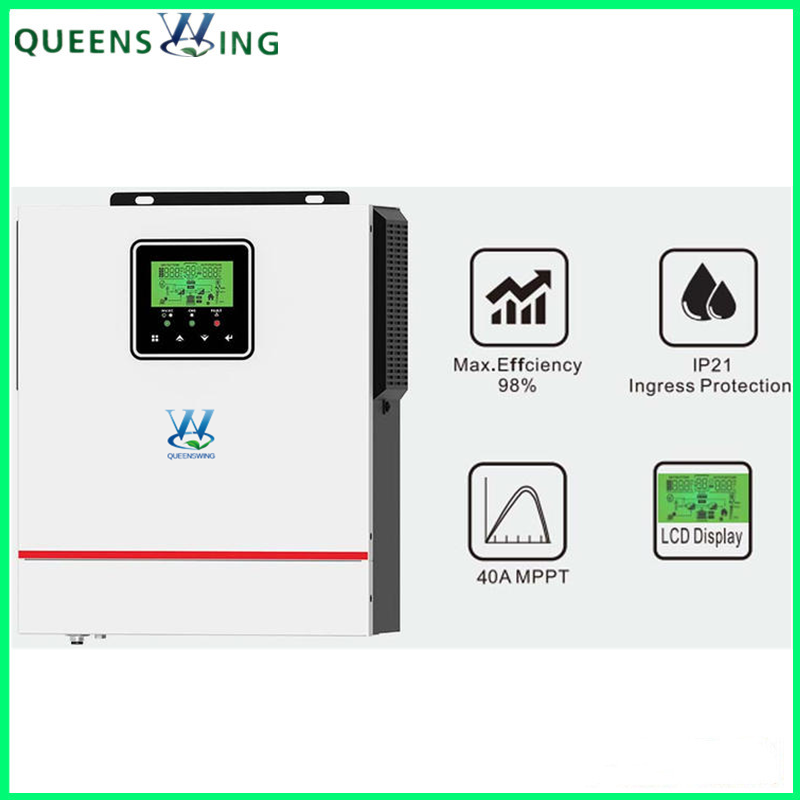

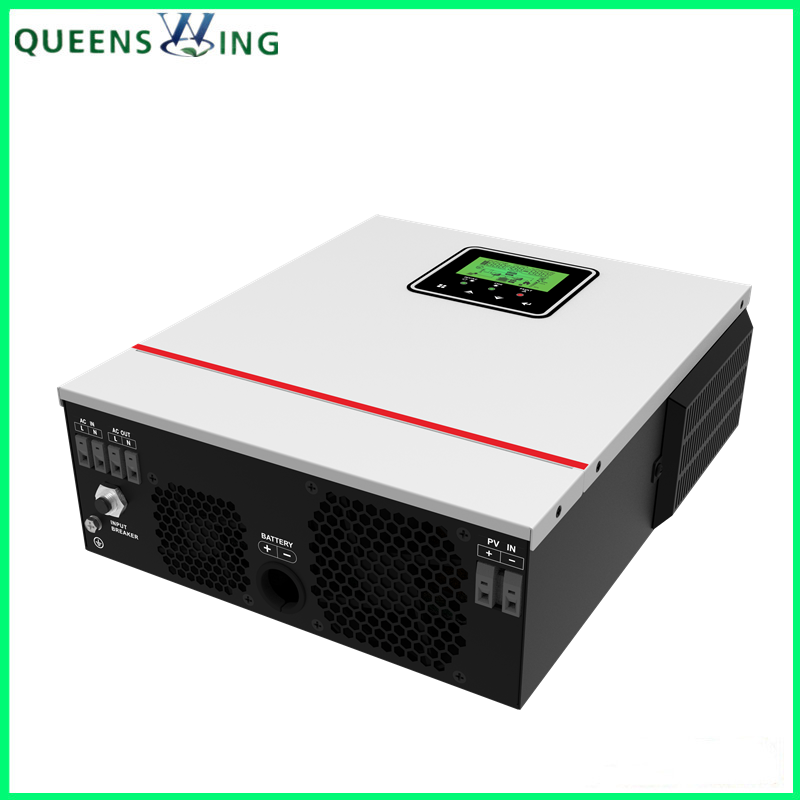

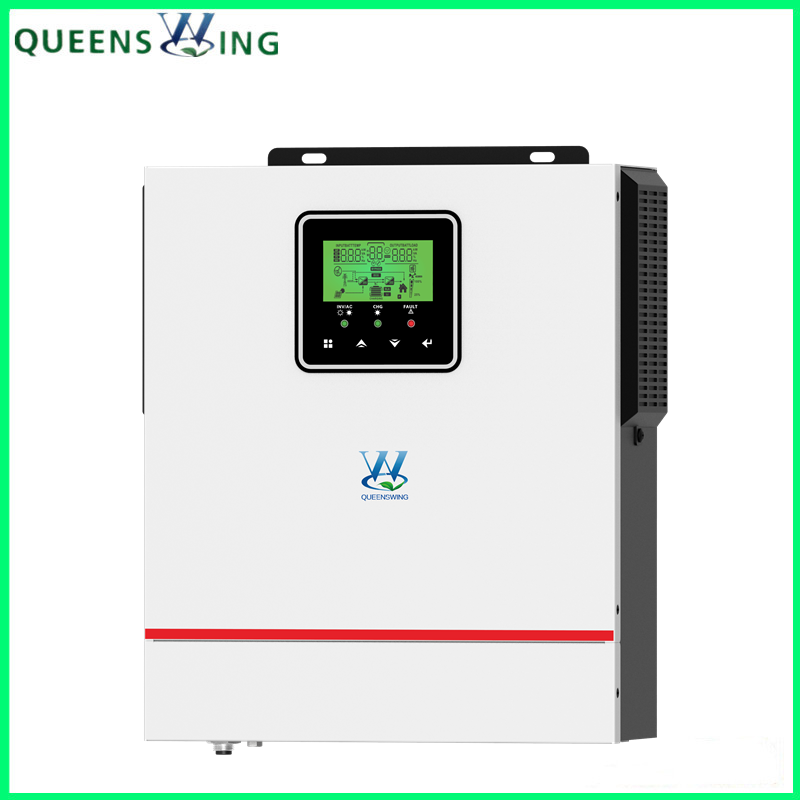

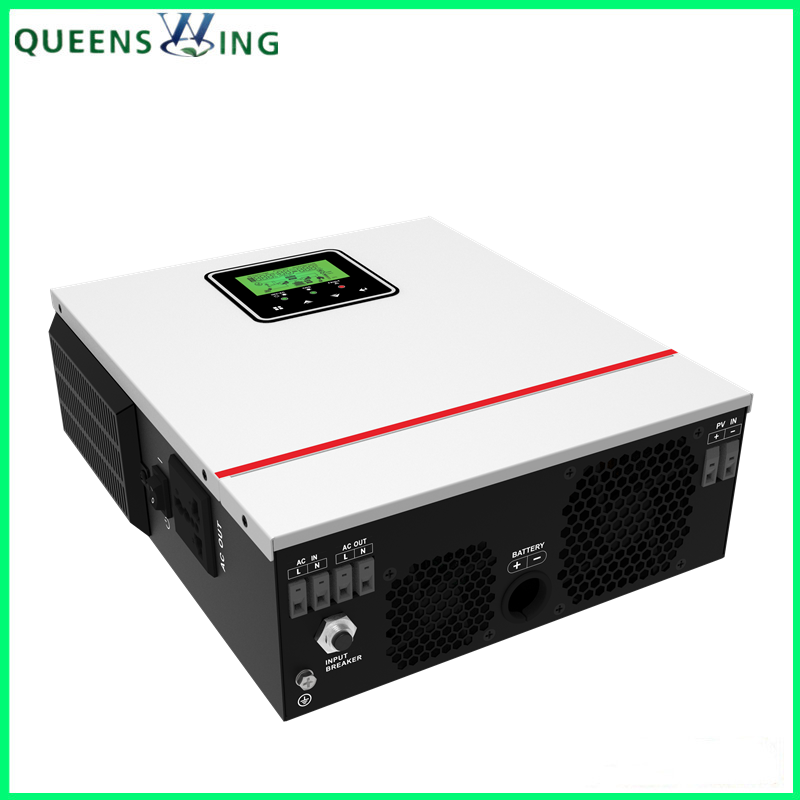

1KVA/1KW 12VDC 230VAC Pure Sine Wave 40A MPPT Hybrid Solar Power Inverter with 600W PV Input 20-150VDC
| Supply Ability: | 20,000 Unit(s) per Month |
|---|---|
| Shipping: | in 3 - 7 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Gift Box / Unit |
Quick Details
- Type: DC/AC Inverters
- Output Voltage: 220VAC
- Input Voltage: 12VDC
- Output Type: Single
- Brand Name: Queenswing
- Output Current: 4.3A
- Output Frequency: 50 / 60Hz
- Weight: 4kg
- Size: 350x300x170mm
- Output Power: 500 - 1000W
- Model Number: QW-NMS-1KW12
- Rated Power: 1000va/1000W
- Peak Power: 2000va/2000W
- Rated Input Voltage: DC12V
- Rated Output Voltage: AC220V
- Frequency: 50Hz/60Hz
- Waveform: Pure Sine Wave
- Solar Controller: 40A MPPT
- Max. PV Array Power: 600W
- MPPT Voltage Range: 20-150VDC
- Keywords: 1KVA/1KW MPPT Hybrid Solar Power Inverter
Specifications
1KVA/1KW 12VDC 230VAC Pure Sine Wave 40A MPPT Hybrid Solar Power Inverter with 600W PV input 20-150VDC
Product Features
Pure sine wave solar inverter
Built-in 40A MPPT solar charger
Max. PV input power 600W
Built-in 40A MPPT solar charger
Max. PV input power 600W
PV input voltage range 20~150VDC
Built-in anti-dust kit for harsh environment
Built-in anti-dust kit for harsh environment
Compatibe with lithium-ion. Lead-acid, gel battery
Smart battery charge design to optimize battery life
Overload,high temperature,inverter output short circuit protection
Cold start function
Intelligent fan speed adjustment
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Programmable supply priority for PV, Battery or Grid
Programmable supply priority for PV, Battery or Grid
Auto restart while AC is recovering
WiFi&GPRS available for IOS and android(optional)
Technical Data
1KVA/1KW 12VDC 230VAC Pure Sine Wave 40A MPPT Hybrid Solar Power Inverter with 600W PV input 20-150VDC | ||
Model |
1K-12V |
1.5K-24V |
Rated Power |
1000VA/1000W |
1500VA/1500W |
INPUT | ||
Voltage |
230VAC | |
Selectable Voltage Range |
170-280 VAC(for Personal Computers) | |
Frequency Range |
50 / 60Hz (optional) | |
OUTPUT | ||
AC Voltage Regulation(Batt. Mode) |
230 VAC ± 5% | |
Surge Power |
2000VA |
3000VA |
Transfer Time |
10 ms (for Personal Computer) | |
Waveform |
Pure Sine Wave | |
BATTERY & AC CHARGER | ||
Battery Voltage |
12 VDC |
24 VDC |
Floating Charge Voltage |
13.5 VDC |
27 VDC |
Overcharge Protection |
16 VDC |
32 VDC |
Maximum AC Charge Current |
40A |
40A |
SOLAR CHARGER | ||
Solar Charger Type |
MPPT | |
Maximum PV Array Power |
600W |
1200W |
MPPT Range @ Operating Voltage |
20-150VDC |
30-150VDC |
Maximum PV Array Open Circuit Voltage |
150VDC |
150VDC |
Maximum Charging Current |
40A |
40A |
Maximum Efficiency |
98% |
98% |
PHYSICAL | ||
Dimension, D x W x H(mm) |
350x300x170mm |
350x300x170mm |
Gross Weight(kg) |
4 |
4 |
Communication Interface |
RS232(Standard) | |
OPERATING ENVIRONMENT | ||
Humidity |
5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature |
-10C - 55°C | |
Storage Temperature |
-15C - 60°C | |
Product specifications are subject to change without further notice | ||
MODEL |
1K-12V |
1.5K-24V |
Inverter Power |
1000W |
1500W |
Pmax.Generated from solar charger |
40Amp, 600W |
40Amp,1200W |
Best Panel Configuration |
300Wp x 2pcs |
300Wp x 4pcs |
