Shandong Honda Conctruction Machine Co., Ltd.
China Manufacturer with main products: Tower Crane, Construction Lifter, Concrete Mixing Plant, Truck-Mounted Concrete Pump, Truck-Mounted Stationary Pump, Truck-Mounted Concrete... |

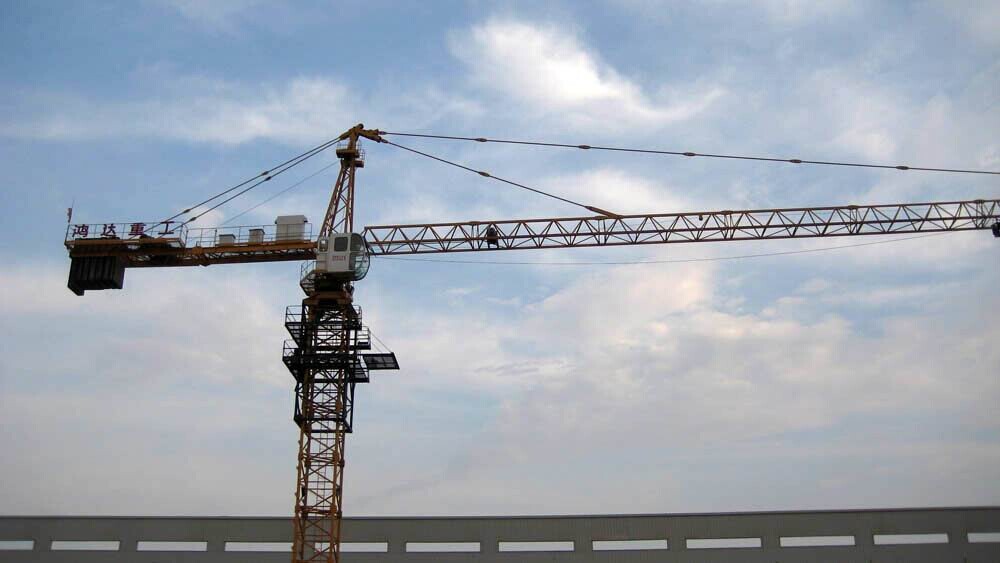

QTZ125F 10t tower crane
| Supply Ability: | 8 Set/Sets per Week |
|---|---|
| Shipping: | sea transportation |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | container |
Quick Details
- Feature: Tower Crane
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE
- Model Number: QTZ125F
- Brand Name: Tielishi
- Span: 60
- Max. Lifting Height: 201
- Max. Lifting Load: 10t
- Rated Lifting Moment: 125
- Rated Loading Capacity: 10t
- Condition: New
Specifications
Main Parameters for Hydraulic Self-raising QTZ Tower Cranes
| Model | QTZ315(7035 ) | QTZ200(7020 ) |
| Amplitude (M) | 70 | 70 |
| Independent Height (M) | 53 | 50 |
| Max. Height (M) | 301 | 200 |
| Max. Lifting Capacity (T) | 16 | 12 |
| Assistant Support Frame | 11 | 7 |
| Main Material |
140*140*16 (angle steel welding) |
140*140*16 (angle steel welding) |
| Standard Mast Section Dimension | 2.1*2.1*3 | 2.1*2.1*3 |
| Lifting Speed (a=2)(m/min) | 120/60 | 102/51 |
| Slewing Speed (r/min) | 0-0.7 | 0-0.7 |
| Trolley Travel Speed (m/min) | 0-80 | 0-80 |
| Max. Lifting Moment (KNm) | 3150 | 2000 |
| Working Temperature | -20+40 | -20+40 |
| Undercarriage Form |
A: Mobile |
A: Mobile |
| Model | QTZ160(6516) | QTZ125(5518) | QTZ100A(5515) |
| Amplitude (M) | 65 | 55 | 55 |
| Independent Height (M) | 50 | 46/52 | 50/50 |
| Max. Height (M) | 190 | 200 | 180 |
| Max. Lifting Capacity (T) | 10 | 8 | 8 |
| Assistant Support Frame | 6 | 6 | 4 |
| Main Material |
135*135*12 (square steel tube) |
135*135*12 (square steel tube) | 135*135*12 (square steel tube) |
| Standard Mast Section Dimension | 1.935*1.935*2.8 | 1.835*1.835*2.5 | 1.835*1.835*2.5 |
| Lifting Speed (a=2)(m/min) | 100/50 | 100/50 | 100/50 |
| Slewing Speed (r/min) | 0.61 | 0.6 | 0.55 |
| Trolley Travel Speed (m/min) | 60/30/10 | 60/30/10 | 60/30/10 |
| Max. Lifting Moment (KNm) | 1600 | 1250 | 1000 |
| Working Temperature | 20+40 | 20+40 | 20+40 |
| Undercarriage Form | Four Landing Legs Without Ballast | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast |
| Model | QTZ80(5512) | QTZ63(5013) | QTZ63C(5211) |
| Amplitude (M) | 55 | 50 | 52 |
| Independent Height (M) | 46 | 41 | 40 |
| Max. Height (M) | 151 | 141 | 140 |
| Max. Lifting Capacity (T) | 8 | 6 | 6 |
| Assistant Support Frame | 5 | 4 | 5 |
| Main Material | 135*135*12 (square steel tube) |
135*135*10 (square steel tube) 135*135*12 Reinforcing mast section |
160*16 Reinforcing mast section 160*14 |
| Standard Mast Section Dimension | 1.835*1.835*2.5 | 1.835*1.835*2.5 | 1.615*1.615*2.5 |
| Lifting Speed (a=2) (m/min) | 100/50 | 80/40/8.5 | 80/40/8.5 |
| Slewing Speed (r/min) | 0.65 | 0.64 | 0.64 |
| Trolley Travel Speed ( m/min) | 60/30/10 | 42/21 | 42/21 |
| Max. Lifting Moment (KNm) | 800 | 630 | 630 |
| Working Temperature | -20+40 | -20+40 | -20+40 |
| Undercarriage Form | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast | Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast | Type A. #-shaped Beam without ballast Type B. Cross-shaped beam with slanting strut and ballast |
| Model | QTZ50(4810) | QTZ40(4708) | QTZ40(4510) |
| Amplitude (M) | 48 | 47 | 45 |
| Independent Height (M) | 35 | 32.5 | 32.5 |
| Max. Height (M) | 140 | 100 | 100 |
| Max. Lifting Capacity (T) | 6 | 4 | 4 |
| Assistant Support Frame | 4 | 4 | 4 |
| Main Material |
135*135*10 (square steel tube) Reinforcing mast section 135*135*12 (square steel tube) |
160*160*12 Angle steel |
160*160*12 Angle steel |
| Standard Mast Section Dimension | 1.835*1.835*2.5 | 1.5*1.5*2.5 | 1.5*1.5*2.5 |
| Lifting Speed (a=2)(m/min) | 76/36/8 | 69.4/34.7 | 76/38/10 |
| Slewing Speed (r/min) | 0.64 | 0.62 | 0.77 |
| Trolley Travel Speed (m/min) | 42/21 | 38/19 | 21.6/43.2 |
| Max. Lifting Moment (KNm) | 500 | 400 | 400 |
| Working Temperature | -20+40 | -20+40 | -20+40 |
| Undercarriage Form |
Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast Type C.#-shaped beam without ballast |
Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast Type C.#-shaped beam without ballast |
Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast Type C.#-shaped beam without ballast |
