Guangzhou Queenswing Solar Energy Co., Ltd.
China Manufacturer with main products: Hybrid Solar Inverter, Solar Inverter, Low Frequency Inverter, Split Phase Inverter, Power Inverter, Pure Sine Wave Inverter, Modified Sine... |
Home
>Products Catalog > Hybrid Solar Inverter > 2.2KVA/1.8KW 12V 80A MPPT Hybrid Solar UPS Inverter with 2000W 450V PV Input(Workable with Lithium Battery)

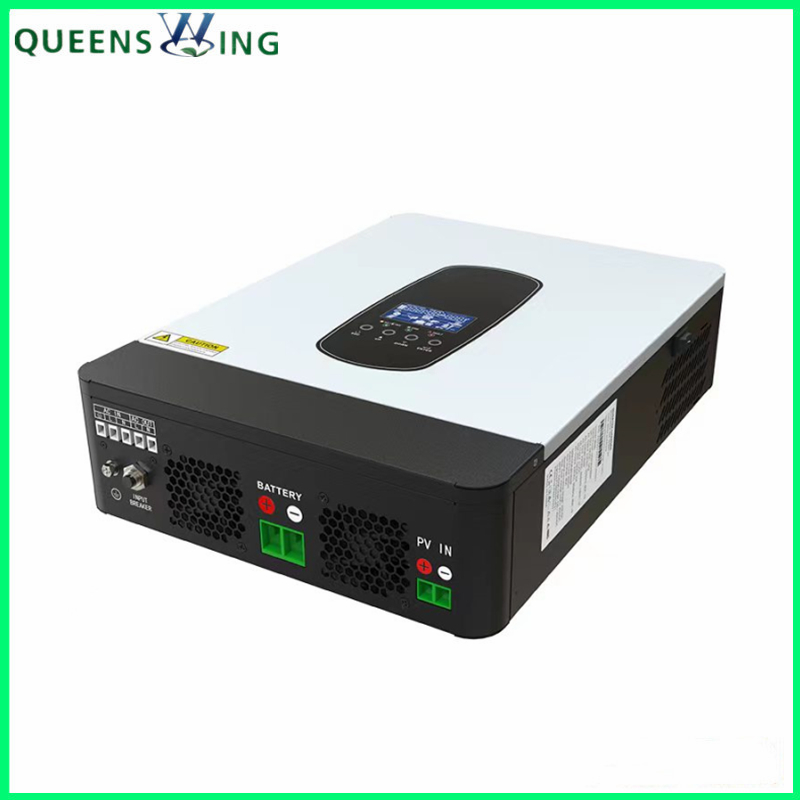

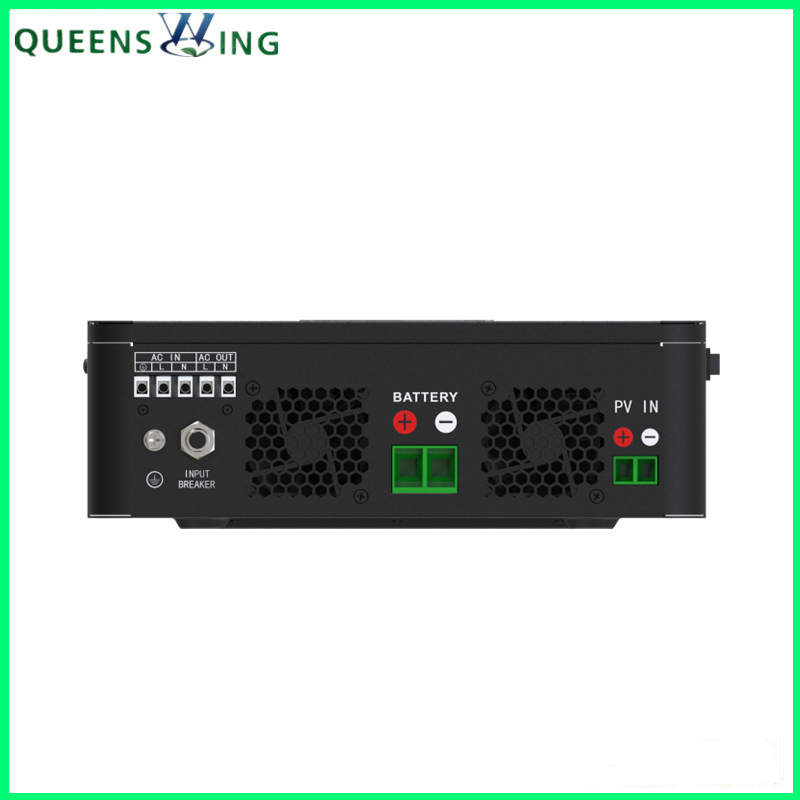

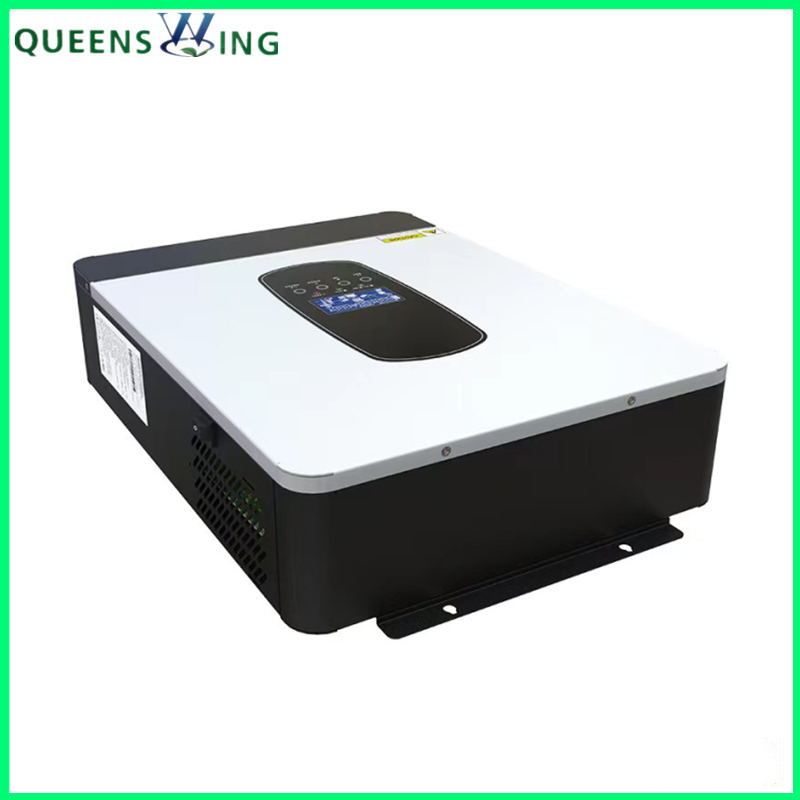

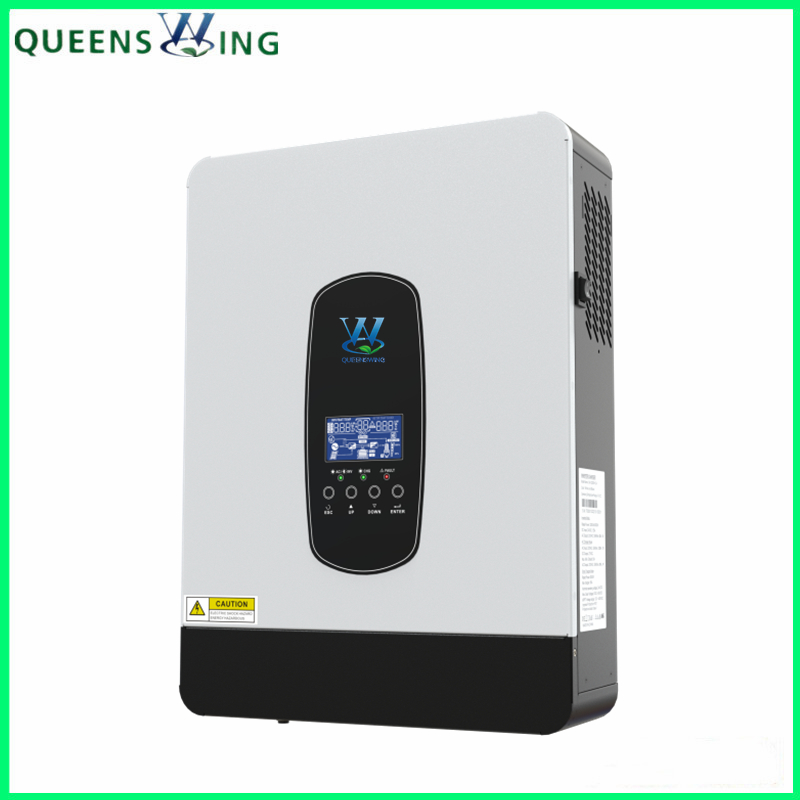

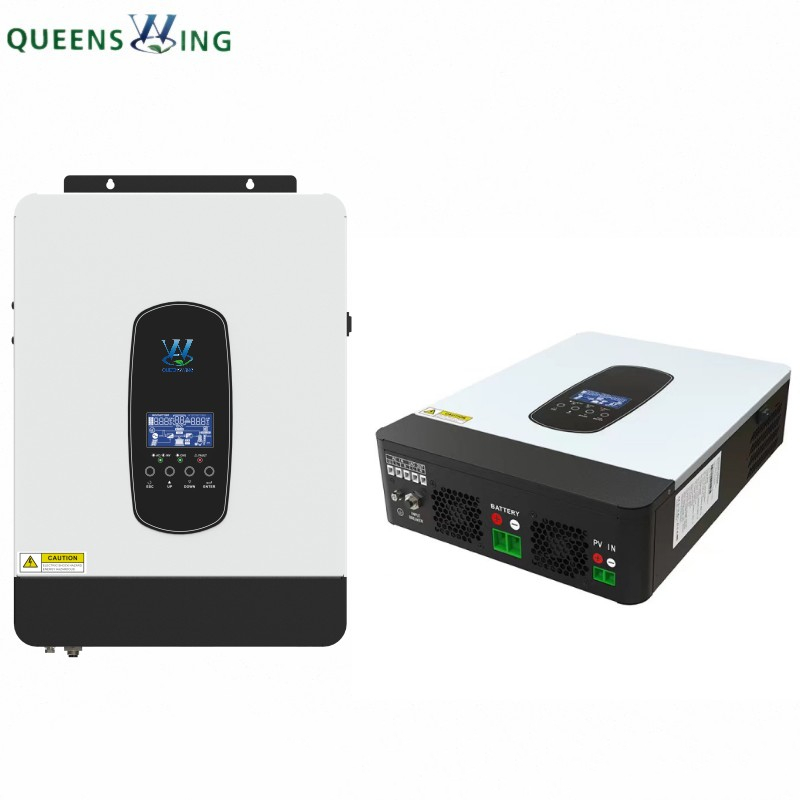

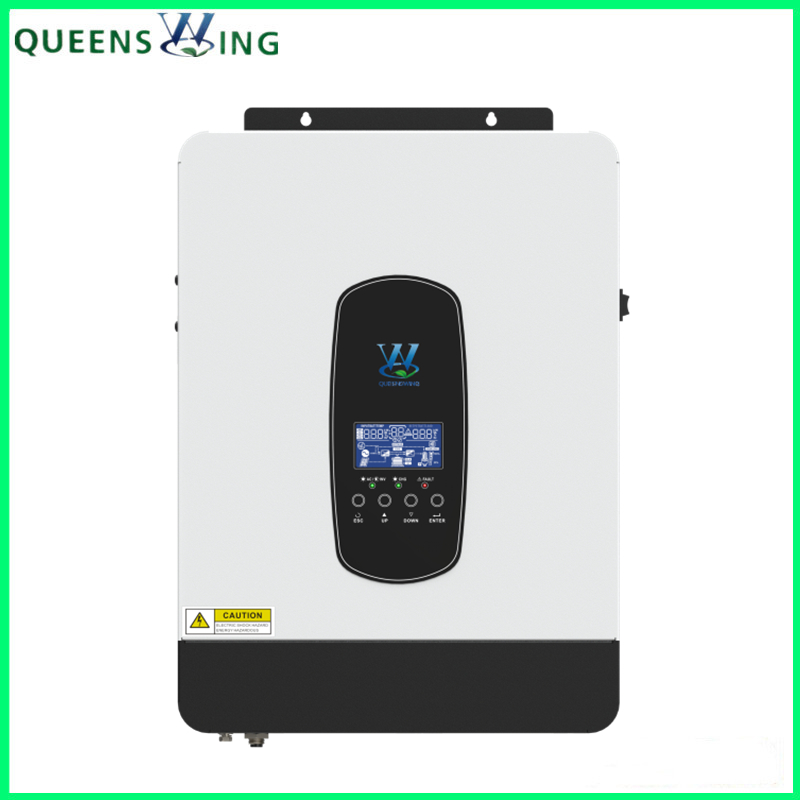

2.2KVA/1.8KW 12V 80A MPPT Hybrid Solar UPS Inverter with 2000W 450V PV Input(Workable with Lithium Battery)
| Supply Ability: | 20,000 Unit(s) per Month |
|---|---|
| Shipping: | in 3 - 7days |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | Gift Box / Unit |
Quick Details
- Type: DC/AC Inverters
- Output Voltage: 220VAC
- Input Voltage: 12VDC
- Output Type: Single
- Brand Name: Queenswing
- Output Current: 7.8A
- Output Frequency: 50 / 60Hz
- Weight: 6kg
- Size: 470x370x180mm
- Model Number: QW-SP-2.2K12
- Rated Power: 2200va/1800W
- Peak Power: 4400va/3600watt
- Rated Input Voltage: DC12V
- Rated Output Voltage: AC220V
- Frequency: 50Hz/60Hz
- Waveform: Pure Sine Wave
- Solar Controller: 80A MPPT
- MPPT Voltage Range: 55-450VDC
- Max. PV Array Power: 2000W
- Keywords: 2.2KVA/1.8KW MPPT Hybrid Solar UPS Inverter
Specifications
Pure Sine Wave 2.2KVA 1800Watt UPS Power Inverter with MPPT 80A and 60A AC charger(QW-SP-2.2K12)
Product Features
Pure sine wave inverter
Programmable supply priority for PV, Battery or Grid
High PV input voltage range(55~450VDC)
Built-in 80A MPPT solar charge
Max. PV input power 2000W
Max. PV input power 2000W
Compatibe with lithium-ion battery
Smart battery charge design to optimize battery life
Overload,high temperature,inverter output short circuit protection
Cold start function
Intelligent fan speed adjustment
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
WiFi&GPRS available for IOS and android(optional)
Technical Data
2.2KVA/1.8KW 12V 80A MPPT Hybrid Solar UPS Inverter with 2000W 450V PV Input(workable with Lithium Battery) | ||
Model |
2.2K-12V |
3.2K-24V |
Rated Power |
2200VA/1800W |
3200VA/3000W |
INPUT | ||
Voltage |
230VAC | |
Selectable Voltage Range |
170-280 VAC(for Personal Computers) | |
Frequency Range |
50 / 60Hz (optional) | |
OUTPUT | ||
AC Voltage Regulation(Batt. Mode) |
230 VAC ± 5% | |
Surge Power |
4400VA |
6400VA |
Transfer Time |
10 ms (for Personal Computer) | |
Waveform |
Pure Sine Wave | |
BATTERY & AC CHARGER | ||
Battery Voltage |
12 VDC |
24 VDC |
Floating Charge Voltage |
13.5 VDC |
27 VDC |
Overcharge Protection |
15.5 VDC |
31 VDC |
Maximum AC Charge Current |
60A |
60A |
SOLAR CHARGER | ||
Maximum PV Array Power |
2000W |
3000W |
MPPT Range @ Operating Voltage |
55-450VDC |
55-450VDC |
Maximum PV Array Open Circuit Voltage |
450VDC |
450VDC |
Maximum Charging Current |
80A |
80A |
Maximum Efficiency |
98% |
98% |
PHYSICAL | ||
Dimension, D x W x H(mm) |
410x290x100mm |
410x290x100mm |
Gross Weight(kg) |
6 |
6.5 |
Communication Interface |
RS232(Standard) | |
OPERATING ENVIRONMENT | ||
Humidity |
5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature |
-10C - 55°C | |
Storage Temperature |
-15C - 60°C | |
Product specifications are subject to change without further notice | ||
MODEL |
2.2K-12V |
3.2K-24V |
Inverter Power |
1800W |
3000W |
Pmax.Generated from solar charger |
80Amp, 2000W |
80Amp,3000W |
Best Panel Configuration |
2000Wp |
3000Wp |
about us
Guangzhou Queenswing Solar Energy Co. Ltd. Is a professional manufacturer and exporter of solar products including power inverter, solar charge controller, solar panel and solar battery in China. to provide high-quality product and considerate service is always our basic policy. We believe high quality creates business and progress is from improvement.
Main products
Hybrid Solar Inverter
Pure sine wave power inverter
Modified sine wave power inverter
UPS power inverter with charger
Car power inverter
Solar charge controller
Battery Charger
Solar battery
Solar Lighting Kits
Solar Panels
Payment Terms
T/T, Western Union, Money Gram, Western Union and Cash.
Production arranged after receipt of payment.
Lead Time
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.
Shipment
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: by sea / air or Customer designated
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
