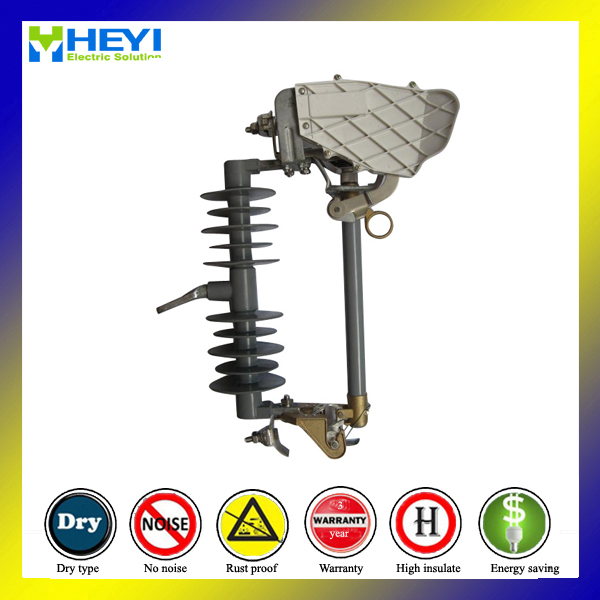

27kv Drop out Fuse Synthetic Insulation Polymer Type
| FOB Price: | 32.50 - 33.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 1. Inside foam package ,outside strong paper package 2. 1pcs/per CTN 3. G/N.W: 7/6.5kg |
Quick Details
- Safety Standards: IEC
- Breaking Capacity: High
- Usage: High Voltage
- Model Number: HYK1-27KV/100A
- Brand Name: OEM
- Fuse Base Material: Polymer ,Silicon Rubben
- Fuse Tube Material: Fiber Glass
- Load Break Switch Attachment: NEMA Bracket
- Install Way: Mounted for High Voltage Frame
- High Voltage Type: 11kv~36kv Drop out Fuse
- Load Break Switch Function: Disconnect Switch Protect Cable Power
- Brand: Client Design
- Safety Standard: IEC ANSI, IEC, BS Load Break Switch
- Sample Time: 5 Days
- Color: Grey
Specifications
27KV Drop out fuse synthetic insulation polymer type component list struction
| No. | Description | No. | Description |
| 1 | Nut | 8 | Fuse Tube |
| 2 | Long Bolts | 9 | Lower Socket |
| 3 | Mounting BracketI | 10 | Lower contacts |
| 4 | Mounting BracketII | 11 | Connector |
| 5 | Porcelain Insulator | 12 | Upper Contacts |
| 6 | Spring Washer | 13 | Attachment Hooks |
| 7 | One piece channel | 14 | Operation Ring |
27KV Drop out fuse synthetic insulation polymer type Specifications:
The Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.
| Model |
Rated Voltage (KV) |
Rated Current (A) |
Breaking current (A) |
BIL (KV) |
power frequency withstand voltage(KV) |
creepage distance (mm) |
weight (kgs) |
dimension (cm) |
| HYK1 | 20-27 | 100 | 10,000 | 150 | 65 | 540 | 5.0 | 51*34*16 |
| HYK1 | 20-27 | 200 | 12,000 | 150 | 65 | 540 | 5.0 | 51*34*16 |
27KV Drop out fuse synthetic insulation polymer type advantage
1.20 years global leading profession manufacture of drop out fuse cutout
2.high disconnect swithc
3.smooth porcelain ,good looking ,100% copper for upper contact and low contact
4.fiber glass tube for insulator
5.3 line assemble line ,10 QC test goods before package
6.Fast delivery : you will get the order when you need it
7.OEM is warmly welcome
8.Convenient : 45 minutes to wenzhou airport
27KV Drop out fuse synthetic insulation polymer type installation
1. should be installed in the melt (melt tension about by 24.5N tension), otherwise easily lead to contact heating.
2.the fuse is mounted on the cross arm (Architecture) should be solid and reliable, there can be no shaking or shaking phenomenon.
3. the fuse tube should be down 25°±2°,., in order to melt when fuse fuse tube can rely on its own weight drop rapidly.
4.the fuse should be installed not less than 4m in the vertical distance from the ground of the cross arm (frame), if installed in the above distribution transformer, keep 0.5m above the horizontal distance and the distribution of the outer contour, the fuse tube falls caused other accidents make provision against a rainy day.
5. the fuse tube length should be adjusted for moderate, after closing the duck tongue above on contact length of 2/3, in order to avoid misoperation fall in operation, the fuse tube can not top dead duck, in order to prevent fusing molten tube can not fall.
6.the melt used must be standard formal product manufacturers, and has a certain mechanical strength, the general requirements of melt at least able to withstand more than 147N of tension.
7.10kV dropping fuse is installed outdoor, requirements and the distance is more than 70cm.
27KV Drop out fuse synthetic insulation polymer type Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
27KV Drop out fuse synthetic insulation polymer type Packing information
1. Inside foam package ,outside strong paper package
2. 1pcs/per CTN
3. G/N.W: 5.5/5.0kg
4. We can packing as your required,good looking design
Why choose 27KV Drop out fuse synthetic insulation polymer type
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
