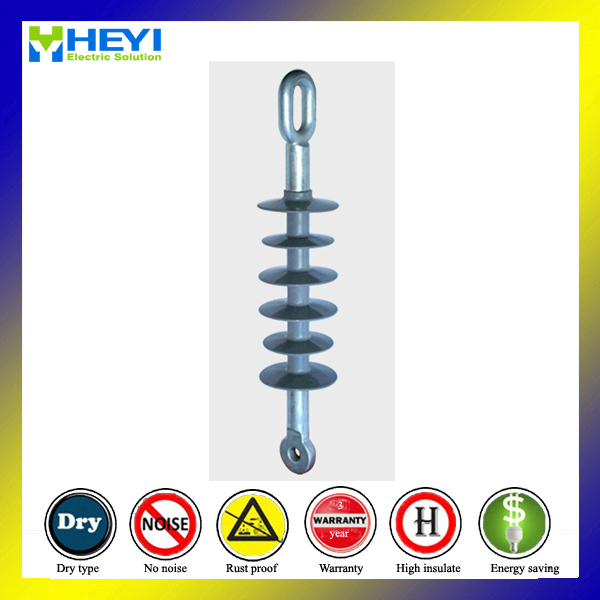

IEC Composite Medium Voltage Insulator 24kv 70kn

FOB Price:	10.00 - 15.00 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	1. Inside foam package ,outside strong paper package 2. 20pcs/per CTN 3. G/N.W: 16/15kg

Quick Details

Model Number: FXBO-24/70
Brand Name: OEM
Insulator Material: Polymer ,Silicon Rubben
Using Application: High Voltage
Rated Voltage: 24kv
Tensile Strength: 13kn
Spindle Material: Galvanized Steel
Insulator Color: Grey /Brown
Sample Time: 5 Days
IEC Standard: ANSI C29.13-2000
Package: Wooden Pallet

Specifications

IEC Composite Medium Voltage Insulator 24KV 70KN
1.The Composite Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
2.The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem - interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level,
3.have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.

IEC Composite Medium Voltage Insulator 24KV 70KN Specification

Technical Specifications:
Model	Rated Voltage	Rated mechanical load	Structure height	Min. Arc distance	Min. Creepage distance	Lightning impulse withstand voltage	1 min P.F. withstand voltage (wet)
FXBO-24/70	24	70	451	269	660	125	95

IEC Composite Medium Voltage Insulator 24KV 70KN advantage
1.20 years global leading profession manufacture of energy meter
2.High quality porcelain material
3.Test data: each products will test by QC
4.Fast delivery : you will get the order when you need it
6.OEM is warmly welcome
7.3 line assemble line automatic machine ,
8.Convenient : 45 minutes to wenzhou airport

IEC Composite Medium Voltage Insulator 24KV 70KN function
1.This product is reliable structure
2.can't damage the core rod,
3.take full advantage of the mechanical strength.
4.excellent seismic performance,
5.good anti pollution performance; high quality stability.

IEC Composite Medium Voltage Insulator 24KV 70KN Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.

IEC Composite Medium Voltage Insulator 24KV 70KN Packing information
1. Inside foam package ,outside strong paper package
2. 20pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design

Why choose IEC Composite Medium Voltage Insulator 24KV 70KN
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
