>Products Catalog > Hybrid Solar Inverter > 4.2KW 24VDC 230VAC 120A MPPT Max. 6200W 500VDC PV Input on/off Grid Hybrid Solar Inverter(Can Work without Battery)

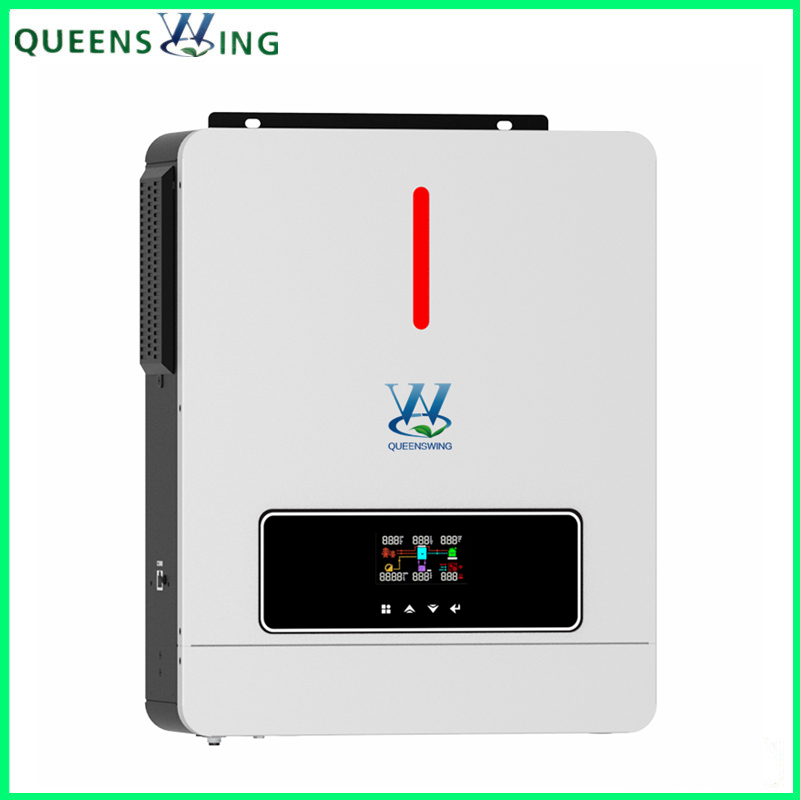

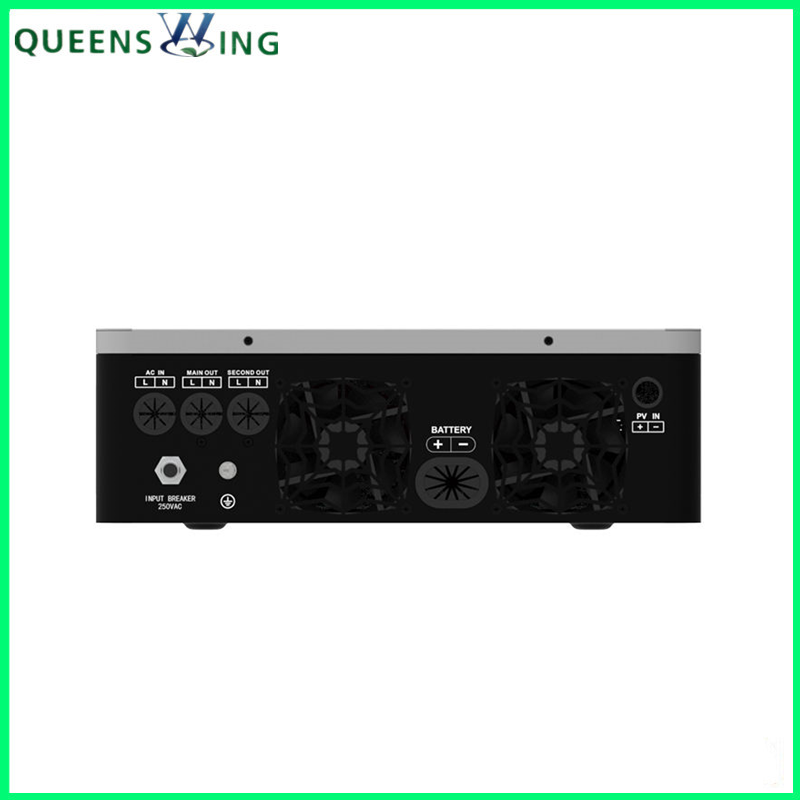

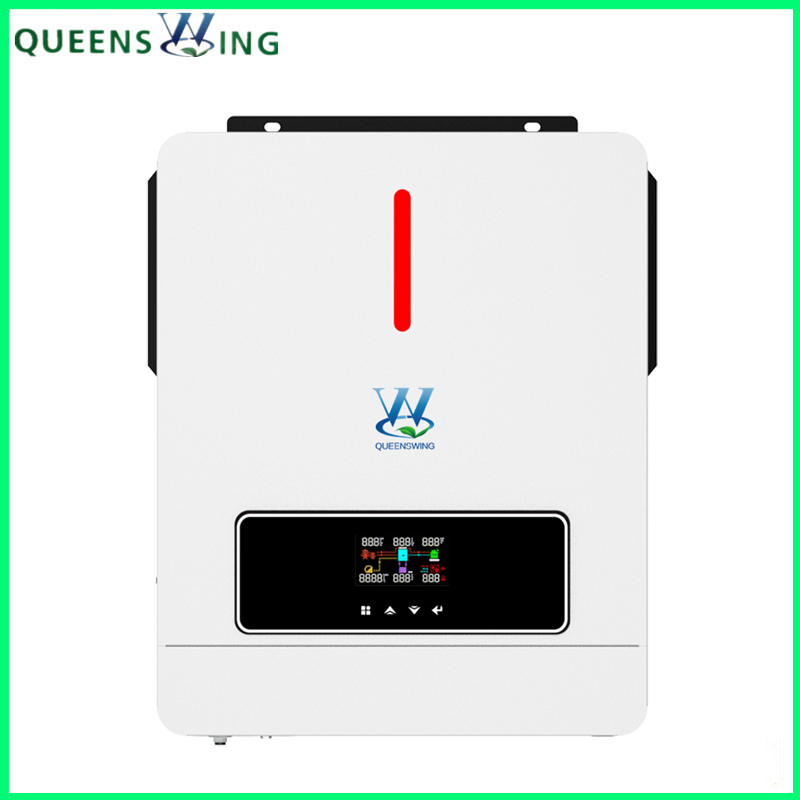

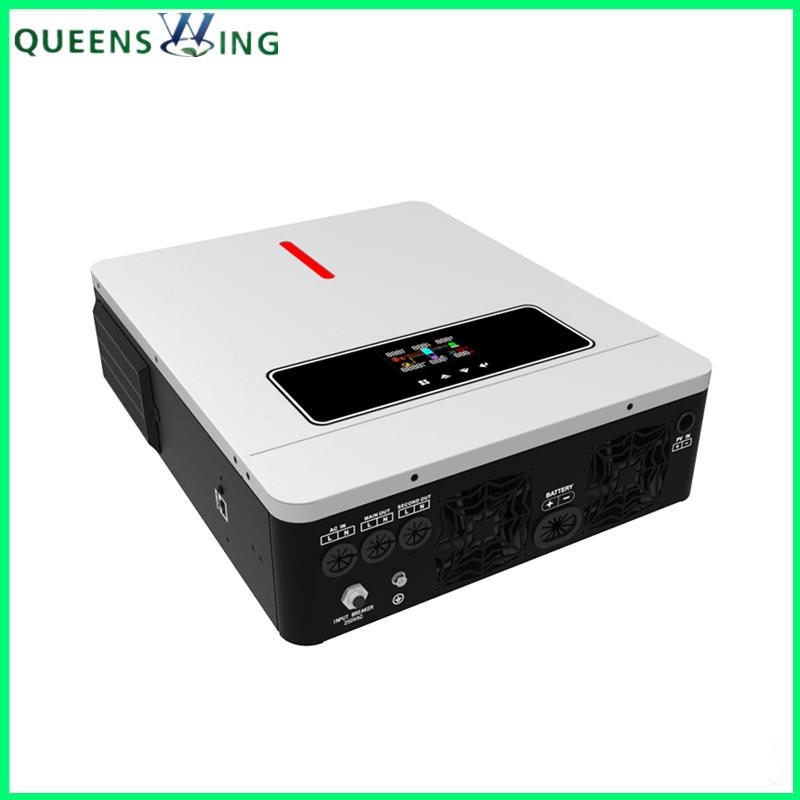

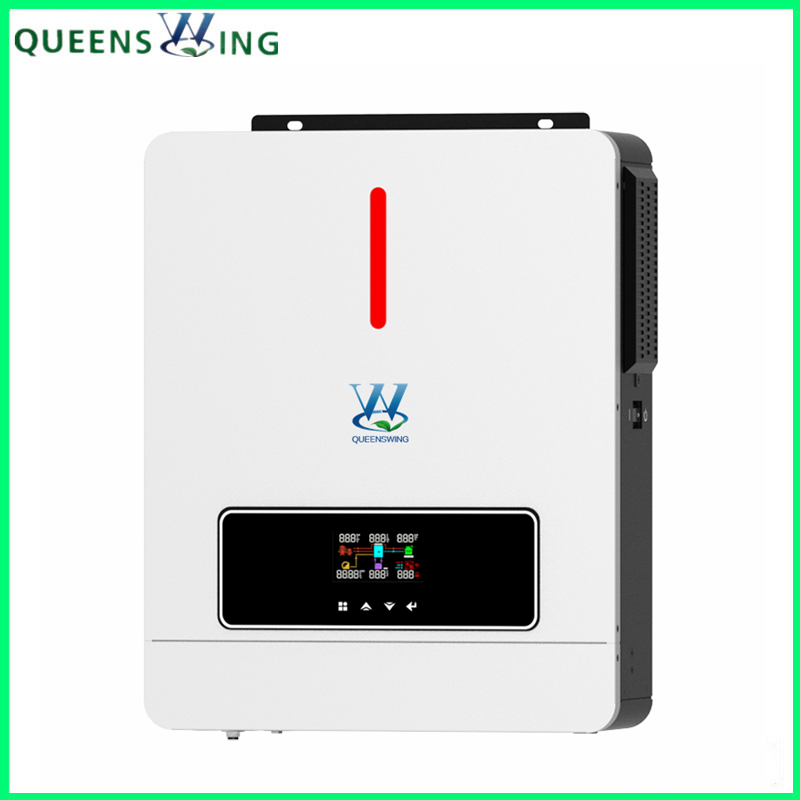

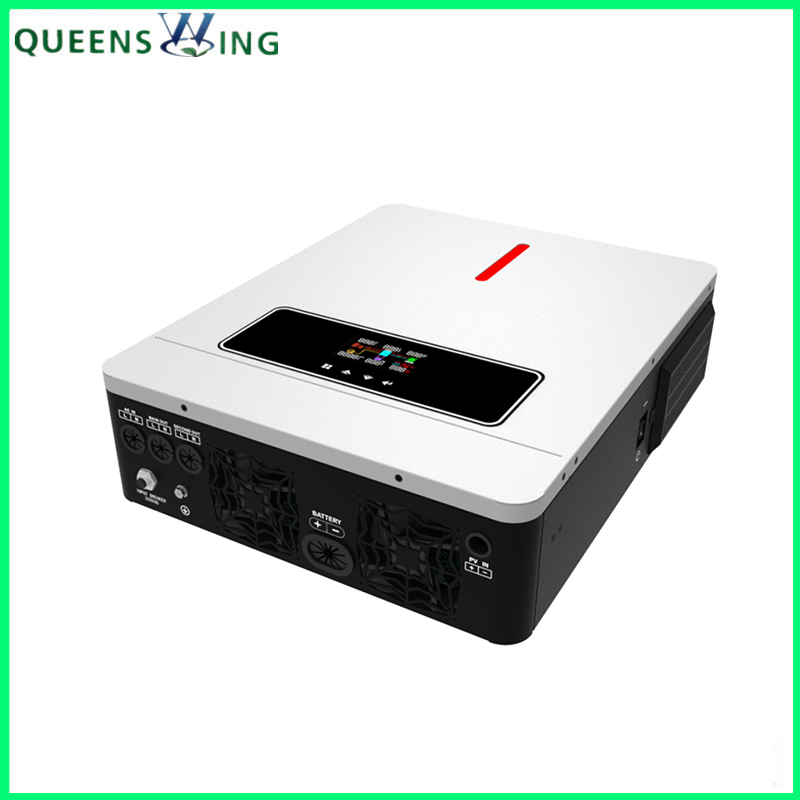

4.2KW 24VDC 230VAC 120A MPPT Max. 6200W 500VDC PV Input on/off Grid Hybrid Solar Inverter(Can Work without Battery)
| Supply Ability: | 20,000 Unit(s) per Month |
|---|---|
| Shipping: | in 3 - 7days |
| Payment Terms: | T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Gift Box / Unit |
Quick Details
- Type: DC/AC Inverters
- Output Voltage: 220VAC
- Input Voltage: 24VDC
- Output Type: Single
- Brand Name: Queenswing
- Output Current: 18.2A
- Output Frequency: 50 / 60Hz
- Weight: 10kg
- Size: 420x310x110mm
- Model Number: QW-MPS4.2KW
- Rated Power: 4200va/4200W
- Input Voltage: DC24V
- Output Voltage: AC220V
- Output Frequency: 50Hz/60Hz
- Waveform: Pure Sine Wave
- Solar Controller: 120A
- PV Input Voltage Range: 60-450V
- Max. PV Array Open Circuit Voltage: 500VDC
- Max. PV Input Power: 6200W
- Keyword: 4.2KW On/Off Grid Hybrid Solar Inverter
Specifications
4.2KW 24VDC 230VAC 120A MPPT Max. 6200W 500VDC PV Input on/off Grid Hybrid Solar Inverter(can work without battery)(QW-MPS4.2KW)
Product Features
Pure sine wave inverter(on/off grid)
Dual Output
Inverter running with or without battery
One-key restoration to factory settings
Built-in lithium battery automatic activation
High PV input voltage range(60~450VDC)
Built-in 120A MPPT solar charge controller
Smart battery charge design to optimize battery life
Overload,high temperature,inverter output short circuit protection
Cold start function
Intelligent fan speed adjustment
Selectable charging current based on applications
WiFi&GPRS available for IOS and android(optional)
MPPT: max 6200W(for 4.2kw), max 6500W(for 6.2kw)
Technical Data
4.2KW 24VDC 230VAC 120A MPPT Max. 6200W 500VDC PV Input on/off Grid Hybrid Solar Inverter(can work without battery)(QW-MPS4.2KW) | ||
Model |
4.2K-24V |
6.2K-48V |
Rated Power |
4200VA/4200W |
6200VA/6200W |
INPUT | ||
Voltage |
230VAC | |
Selectable Voltage Range |
170-280 VAC(for Personal Computers) | |
Frequency Range |
50 / 60Hz (optional) | |
OUTPUT | ||
AC Voltage Regulation(Batt. Mode) |
230 VAC ± 5% | |
Surge Power |
8200VA |
12400VA |
Transfer Time |
10 ms (for Personal Computer) | |
Waveform |
Pure Sine Wave | |
BATTERY & AC CHARGER | ||
Battery Voltage |
24 VDC |
48 VDC |
Floating Charge Voltage |
27 VDC |
54 VDC |
Overcharge Protection |
31 VDC |
62 VDC |
Maximum AC Charge Current |
100A |
100A |
SOLAR CHARGER | ||
Maximum PV Array Power |
6200W |
6500W |
MPPT Range @ Operating Voltage |
60-450VDC |
60-450VDC |
Maximum PV Array Open Circuit Voltage |
500VDC |
500VDC |
Maximum Charging Current |
120A |
120A |
Maximum Efficiency |
98% |
98% |
PHYSICAL | ||
Dimension, D x W x H(mm) |
420x310x110mm |
420x310x110mm |
Gross Weight(kg) |
10 |
11 |
Communication Interface |
RS232(Standard) | |
OPERATING ENVIRONMENT | ||
Humidity |
5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature |
-10C - 55°C | |
Storage Temperature |
-15C - 60°C | |
Product specifications are subject to change without further notice | ||
MODEL |
4.2K-24V |
6.2K-48V |
Inverter Power |
4200W |
6200W |
Pmax.Generated from solar charger |
120Amp, 6200W |
120Amp,6500W |
Best Panel Configuration |
250Wp x 20pcs |
250Wp x 24pcs |
