Yueqing Heyi Electrical Co., Ltd.
China Manufacturer with main products: Energy Meter, Power Capacitor, Voltage Regulator, Post Insulator, Power Factor Correction, Socket Meter, Meter Seal, Filter Reactor |
Home
>Products Catalog > energy meter > Shunt Capacitor for Filter Harmonic Power Capacitor China Power Supply

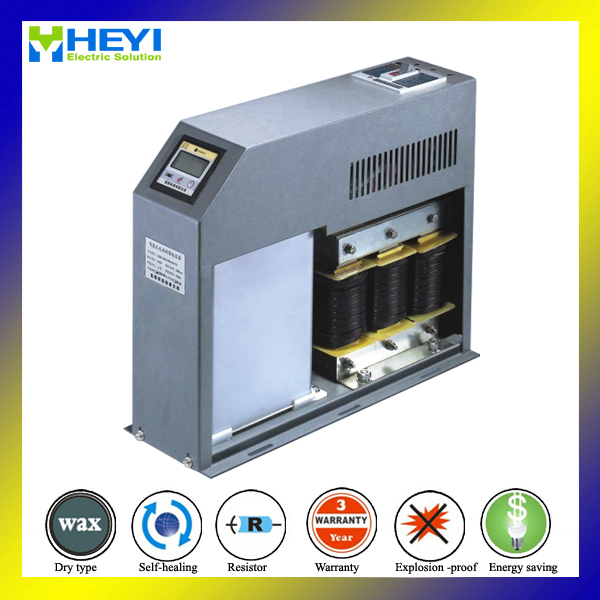

Shunt Capacitor for Filter Harmonic Power Capacitor China Power Supply
| FOB Price: | 545.00 - 546.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 1. Inside foam package ,outside strong paper package 2. 3pcs/per CTN 3. G/N.W: 20/19kg |
Quick Details
- Operating Temperature: -35~55
- Rated Voltage: 200V ~380V
- Capacitance: 40KVAR
- Package Type: Surface Mount
- Application: Power
- Type: Polypropylene Film Capacitor
- Model Number: ZMZ525V -40KVAR/13
- Brand Name: OEM
- Material: Anti Rust Metal Sheet
- Terminal Connection: Anti Fire Bakelite
- China Manufacture Capacitor Function: Reduce Reactive
- Medium: Wax Type
- Release Electricity Time: 30 Second
- Anti Explosion: Explosion Device Inside
- China Manufacture Capacitor Type: Self Healing Low Voltage
- IEC Standard: IEC60831
- Phase: Three Phase China Manufacture Capacitor
- Handle Sample Time: 5 Days
Specifications
Shunt capacitor for filter harmonic power capacitor china power supply
*modular construction
*embedded switch module
*advanced control technology
*Protection switching oscillation technique
*human interface, convenient for operating
split ac capacitor for intelligent reactive compensate bank China power supply specification
|
|
Series | Filter Intelligent Power Capacitor |
| (1)Environment condition | Ambient temperature: | -35~65°C (-25~45°C ) |
| Relative humidity: | 0°C ,20-90% | |
| Atmospheric pressure: | 79.5~106.0Kpa | |
| (2) Protection deviation | Voltage: | ≤0.5% |
| Current: | ≤1.0% | |
| Time: | ±0.01s | |
| (3) Power condition | Rated voltage: | 200V or ~380V |
| Allowable tolerance: | ±20% | |
| Voltage waveform: | The sine wave,the total rate is not more than 5% | |
| Frequency: | 48.5~51.5Hz | |
| (4) parameters | Deviation: | The minimum capacity of 75% |
| Time of capacitor switch: | 10s | |
| Capacity: | one ≤(20+20)kvar | |
| Power dissipation: |
<0.5w(cut off capacitor) <1w(input capacitor) |
|
| (5) Safety requirements | Standard | DL/T842-2003 low voltage Shunt capacitor device |
| rate: | ≤0.1%/10000 | |
| (6)Reliability parameters | Control accuracy: | Allowed number of switch:1million times Capacitor run time decay |
| Fault rate annual: | 0.1% | |
| (7)Measurement deviation | Voltage: | ≤0.5%(during 80%~120% of rated voltage) |
| Current: |
≤1.0%(during5%~20% of rated current) ≤0.5%(during20%~120% of rated current) |
|
| Power factor: | ±0.01 |
split ac capacitor for intelligent reactive compensate bank China power supply data sheet
| Name | Type | Type | Dimension(mm)L*W*H |
|
Filter intelligent power capacitor 7% harmonic ( more than 5 times harmonic condition ,please use 7% filter Main voltage is 440v or 400v ,the intelligent capacitor will need 480v ) |
Three phase compensate | ZMZ-DSX/480-10/7% | 475*165*360 |
| ZMZ-DSX/480-15/7% | 475*165*360 | ||
| ZMZ-DSX/480-20/7% | 475*165*360 | ||
| ZMZ-DSX/480-25/7% | 475*165*360 | ||
| ZMZ-DSX/480-30/7% | 475*165*410 | ||
| ZMZ-DSX/480-35/7% | 475*165*410 | ||
| ZMZ-DSX/480-40/7% | 475*165*440 | ||
|
Filter intelligent power capacitor 13% harmonic ( more than 3times harmonic condition ,please use13% filter ,Main voltage is 440v or 400v ,the intelligent capacitor will need 525v) |
ZMZ-DSX/525-10/13% | 515*185*410 | |
| ZMZ-DSX/525-15/13% | 515*185*410 | ||
| ZMZ-DSX/525-20/13% | 515*185*410 | ||
| ZMZ-DSX/525-25/13% | 515*185*410 | ||
| ZMZ-DSX/525-30/13% | 515*185*410 | ||
| ZMZ-DSX/525-35/13% | 515*185*410 | ||
| ZMZ-DSX/525-40/13% | 515*185*440 | ||
|
Filter intelligent power capacitor 7% harmonic ( more than 5 times harmonic condition ,please use 7% filter Main voltage is 440v or 400v ,the intelligent capacitor will need 280v ) |
Spilit phase compensate | ZMZ-DFX/280-5/7% | 475*165*360 |
| ZMZ-DFX/280-10/7% | 475*165*360 | ||
| ZMZ-DFX/280-15/7% | 475*165*360 | ||
| ZMZ-DFX/280-20/7% | 475*165*360 | ||
| ZMZ-DFX/280-30/7% | 475*165*360 | ||
|
Filter intelligent power capacitor 13% harmonic ( more than 3times harmonic condition ,please use13% filter ,Main voltage is 440v or 400v ,the intelligent capacitor will need 300v) |
ZMZ-DFX/300-5/13% | 515*185*410 | |
| ZMZ-DFX/300-10/13% | 515*185*410 | ||
| ZMZ-DFX/300-15/13% | 515*185*410 | ||
| ZMZ-DFX/300-20/13% | 515*185*410 | ||
| ZMZ-DFX/300-30/13% | 515*185*410 |
Shunt capacitor for filter harmonic power capacitor china power supply advantage
1.The use of industrial type high voltage power capacitor, oil free design, high safety;
2.The use of no inrush current switch, advanced technology, stable and reliable performance;
3.Using closed loop circuit, circuit is not saturated, no energy consumption, no electromagnetic radiation;
4.Using the technology and special technology, can suppress the harmonic and inrush current effectively, 3 ~ 9 harmonic suppression effect is obvious;
5.The modular structure, flexible combination, convenient expansion, simple installation, convenient maintenance;
Intelligent network, R S485 communication interface, can access the computer background, for distribution management;
6.The decentralized control mode, the 200000 non fault switching, high reliability,200000 non fault switching;
Humanized human-computer interface, simple operation, convenient maintenance, suitable for field troubleshooting;
in the explosion-proof device and temperature control device, improve the reliability of operation of serious harmonic under the place;
8.Significant energysaving effect, effectively improve the power factor, reduce electric energy consumption, improve the quality of electric energy.
Shunt capacitor for filter harmonic power capacitor china power supply function
1.The filter function
Capacitor switching state, the over and under repair state, over and under voltage protection action signal: the state type, fault self diagnosis type signal. To restrain harmonic and inrush current effectively, form a low impedance path on the harmonic. With the absorption of discharge effect on harmonic, can eliminate the influence of harmonic to capacitor, and capacitor overload protection circuitto prevent overheating, capacitor, dielectric aging insulation, self-healing performance degradation, reduction of service life.
2.No surge switching function
With the special capacitor switch with, no switching surge current.
3.Protection function
The loop current speed cutting, over-current protection: capacitor over voltage,under voltage protection; capacitor over temperature, phase failure, three-phase unbalance protection, when the capacitor temperature exceeds 65 degrees, theexit running capacitor protection, improve service life, ensure the safe operation of the system.
4.The signal function
Capacitor switching state, the over and under repair state, over and under voltage protection action signal: the state type, fault self diagnosis type signal.
Shunt capacitor for filter harmonic power capacitor china power supply Payment terms
1. 30% T/T advance , the balance against to the copy B/L or LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
Shunt capacitor for filter harmonic power capacitor china power supply Packing information
1. Inside foam package ,outside strong paper package
2. 3pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design
Why choose Shunt capacitor for filter harmonic power capacitor china power supply
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 50000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
