Taian Taishan Guotai Tractors Co., Ltd.
China Manufacturer with main products: Tractors, Tricycles, Farm Implements, Wheel Loader, Forklift, Bulldozer, Walking Tractors |

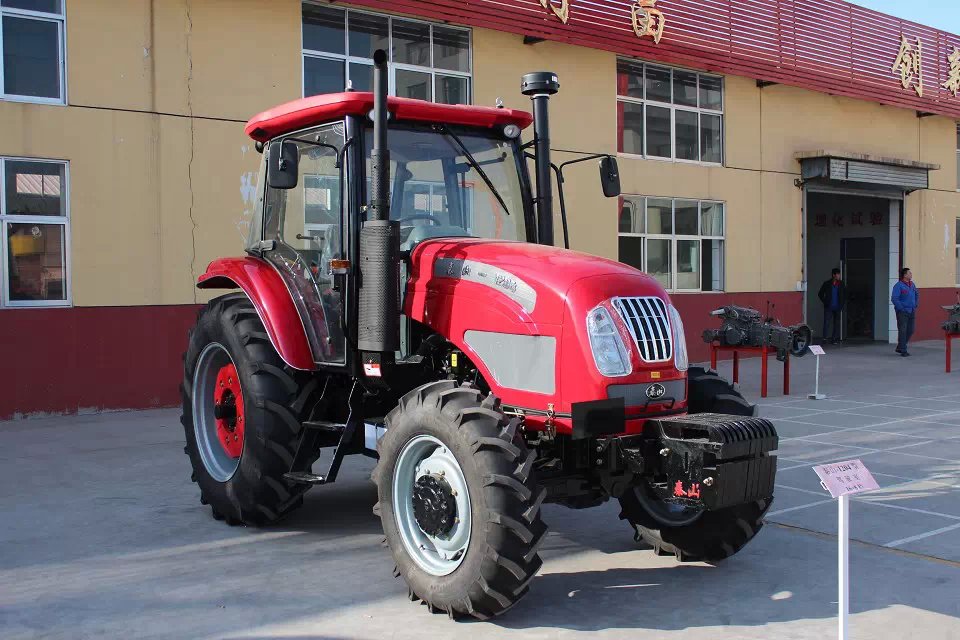

best 120hp tractor with cabin
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Day |
| Shipping: | within 25 days |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Export standard package |
Quick Details
- Model Number: GT1204
- Brand Name: Taishan
- Certificate: OECD
- Power(W): 89000
- Drive Type: Gear Drive
- Usage: Farm Tractor
- By wheel: 4WD
- Type: Wheel Tractor
- Condition: New
- Horsepower: 18-180hp
- Color: all kinds
Specifications
| Main Technical Specifications for Taishan Tractors | |||
| Taishan | Model | GT1204-120hp | |
|
Tractor Parameter |
Drive Type | 4WD | |
| Overall Dimensions L×W×H (mm): | 4830×2510×3065 | ||
| Wheel Track (mm) | Front | 1610-1950 | |
| Rear | 1720-2120 | ||
| Wheel Base (mm) | 2250 | ||
| Ground Clearance (mm) | Under Front Axle | 379 | |
| Under Rear Axle | 379 | ||
| Rated Traction Force (KN) | 28 | ||
| Construction Mass (kg) | 3800 | ||
| Min. Turning Radius (m) | 4.5 | ||
| Theoretical | Forward | 0.46-34.85 | |
| Speed (km/h) | Reverse | 0.62-10.78 | |
| Engine Specification | Model | YTO/Yuchai | |
| Rated Power (kW/hp) | 89/120.0 | ||
| Rated Speed (rpm) | 2300 | ||
| Total Displacement (L) | 7.01 | ||
| Drive System | Clutch | Dual-function, dry constant meshing | |
| Gear Box | 2x2x(4+2) sliding gear shift | ||
| Main Drive | One Pair of Spiral Bevel Gears | ||
| Differential | Bevel Gear | ||
| Differential Lock | Sliding pin, foot operated | ||
| Final Transmissions | Planetary reduction gear | ||
| Traveling Mechanism | Tire | Front | 11.2-24 |
| Rear | 16.9-34 | ||
| Steering Gear | Hydraulic power steering | ||
| Brake | Dry disc (Multiple) | ||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (kn) | 25 |
| 3-Point Suspension | Category: II | ||
| P.T.O. Shaft | Rotating Speed (rpm) | 540/100 or 760/1000 | |
| Spline Size | 8-?35 or 6-?35 Rectangular Spline | ||
| We can manufacture and design the tractors according to your actual working conditions. | |||
