Home >Products Catalog > Tool steel 1.2080 steel plate

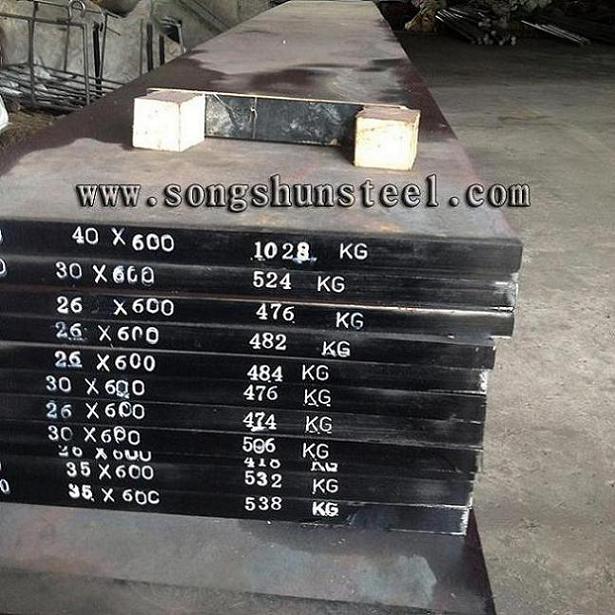

Tool steel 1.2080 steel plate

FOB Price:	500.00 - 1,500.00 USD/Ton
Supply Ability:	50,000 Ton/Tons per Month
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

PPGI

Price:600.00-960.00 USD/Metric Ton

Min. Order:50 Metric Ton
China Manufacturer Hot Rolled/HR Steel Coil Sli...

Price:300000.00 USD/Set

Min. Order:1 Set
Pre Painted Steel Sheet Coil

Price:500.00-800.00 USD/Metric Ton

Min. Order:20 Metric Ton
Prepainted steel coils (PPGI)

Price:

Min. Order:50MT

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	seaworthy packing; 20ft: GW:17.5T; (5.80mX2.13mX2.18m,) 40ft: GW:22T; (11.8mX2.13mX2.18m,)

Quick Details

Length: 2000-5000MM
Width: 205-2000MM
Special Use: High-strength Steel Plate
Application: Tool Steel sheet
Surface Treatment: Black/Peeling/Polishing/Machined
Technique: forged/hot rolled/cold rolled
Type: Steel Plate
Model Number: D3/1.2080/SKD1/Cr12
Brand Name: songshun
Thickness: 20-300MM
Grade: cold work steel
Standard: AISI,ASTM,BS,DIN,GB,JIS

Specifications

Dongguan songshun mould steel CO.,LTD. as China's largest steel wholesaler, Main Steel has: 4140 steel,D2 steel,4130 steel,H13 steel,P20 steel,AISI 4340 steel,1.2738 steel,1.2379 steel,1.2344 steel,1.2080 steel etc.. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you. songshun1506

1,Size of 1.2080 cold work steel
Round bar		Diameter(mm)			Length (mm)
		Max:800			Max: 9000
Plate		Thickness(mm)			Width (mm)		Length (mm)
		Max:800			Max:1000		Max:6000
The specification can be customized.
2,Chemical Compositons
Grade	C	Si	Mn	P	S	Cr	W	V
Cr12	2.00-2.30	≤0.40	≤0.40	≤0.030	≤0.035	11.50-13.00	-	-
D3	2.00-2.30	0.10-0.60	0.10-0.60	≤0.030	≤0.030	11.00-13.50	≤1.00	≤1.00
1.2080	1.90-2.20	0.10-0.60	0.20-0.60	≤0.030	≤0.030	11.00-13.00	-	-
SKD1	1.90-2.20	0.10-0.60	0.20-0.60	≤0.030	≤0.030	11.00-13.00	-	≤0.30
3,Features of 1.2080 Steel
1, High carbon high chromium tool steel;
2, High wear and abrasion resistance;
3, High resitance to heavy pressure;
4, Immune from sinking in use;
5, Good machinability and inoxidizability.
4,Typical Applications
1, Complex blanking and forming tools;
2, For brick and tile mould liners;
3, Master hobs for cold hobbing plastic moulds;
4, Tabletting punches and sleeves for corrosive powders.

Songshun Company Introduction

Located in Chang'an Town - the famous town of mould in Pearl River Delta;
Providing complete services from manufacturing and marketing to distributing;
Steel exported all over the world;
Service like peeling,milling,grinding,cutting and heat treatment etc...
All steel must pass high quality detection;
24/7 hours online service with quick response !

Main products
	Hot work tool steel
DIN	1.2344,1.2343,1.2365,1.2581,1.2367,1.2714 etc.
AISI	H13,H11,H10,H21,L6 etc.
JIS	SKD61,SKD6,SKD5,SKT4 etc.
	Cold work too steel
DIN	1.2601,1.2379,1.2080,1.2363,1.2842,1.2419,1.2510,1.2550,1.2767 etc.
AISI	D2,D3,A2,O2,O1 etc.
JIS	SKD1,SKD11,STD12,SKS31,SKS3 etc.
	Plastic mould steel
DIN	1.2083,1.2311,1.2312,1.2316,1.2738 etc.
AISI	P20, P20+Ni,P20+S,420 etc.
JIS	NAK80
	High speed tool steel
DIN	1.3355,1.3343
AISI	T1,M2
JIS	SKH2,SKH51
	Structural alloy steel
DIN	1.7225,1.6511
AISI	4140,4340
JIS	SCM440
We also supply customized special steel, contact us for more information !

FAQ

1.Q:Are your a factory or a trading company?

A:We are factory.

2.Q:Where is your factory located?How can I visit there?

A:Our factory is located in Dongguan city,you can fly to Baoan airport

and we will arrange people to go there pick you up.

3.Q:How can I get some sample?

A:We are honored to offer you samples

4.Q:What are the difference between you and other steel company?

A:Quality first! The price will be changed according to your order.

The rechargeable sample's will return to you after you offer the deposit!

Our company are full of chinese culture,Won't you want to come here^.^?

The sales are beautiful and handsome0.0!
