Specifications
all types of mining gasoline rock drill
Introduction

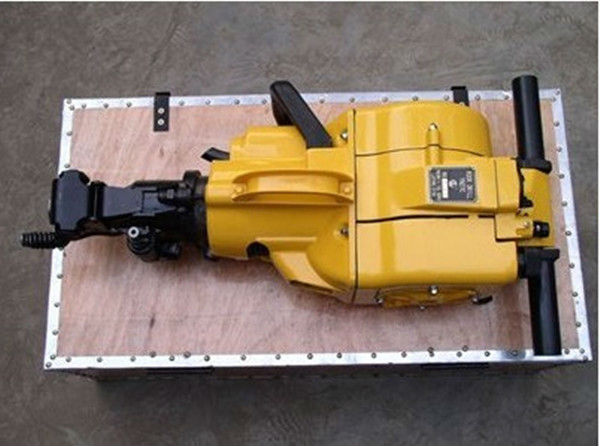

1.The Internal Combustion Rock Drill Type YN27J is a very efficient machine with the characters that
structure is very compact,
2.Less of the-easy-to damagearts,and vereasy to control.
3.It can adapt to these outsidesituations there isno water and no electronic power.
4.It is a Kind hand held drill built up with gasolineengine,Air pump,rock drill and the rotation plumbum
equipment for running or stop.
5.It can be used as a tool for breaking,percussive drilling,tamping besides rock Drilling.
Product Feature
1. Structure is very comact
2. Less of the easy o damage parts, easy to control
3. Adapt to these outside situations there is no water and no electronic power
Technology Parameters
|
Rock Drill Type |
YN27C |
|
Weight(kg) |
27 |
|
Overall dimension(L*W*H) (mm) |
746*315*229 |
|
Diameter of engine piston(mm) |
Φ58 |
|
Stroke of engine piston(mm) |
70 |
|
Rotating speed of engine(r/min) |
≥2450 |
|
Rotating speed of drilling rod(r/min) |
≥250 |
|
Oil consumption(L/m) |
≤0.12 |
|
Tank capacity(liter) |
1.65 |
|
Max.drilling depth(m) |
6 |
|
Shank size(mm) |
Hex 22x108 |
|
Ignition system |
controllable silicon, |
