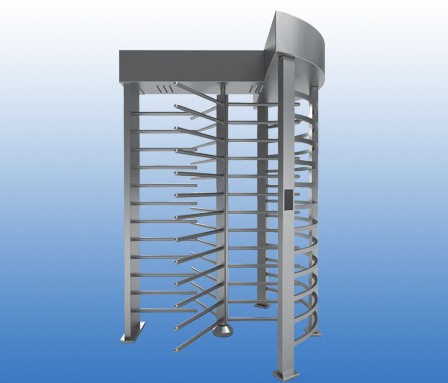

Stainless Steel 120degree Rotation Security Full High Turnstile KT501
| Supply Ability: | 300 Unit/Units per Month |
|---|---|
| Shipping: | within 3weeks, Departure port: Shenzhen or Hongkong |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Pay pal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | packed Wooden case, inner packed in carton and EPE foam approx 5CBM/unit |
Quick Details
- Model Number: KT501
- Brand Name: Koten
- Material: SUS304
- Thickness of material: 1.5mm
Specifications
Stainless Steel 120degree Security Full High Turnstile
Specification:
Framework material: 304# stainless steel
Produce Processing: Laser cutting fully controlled by computer
Framework Size: 1500*1500*2300(mm)
Framework Size: 1500*1500*2300(mm)
Thickness of stainless steel : 1.5mm
Weight: 230Kg
Weight: 230Kg
Length of the pole: 500(mm) out of the framework
The biggest bearing force of the pole : 80Kg
Force of push : 3Kg
Transmission of the pole: digital transmission
Transmission of the pole: digital transmission
The direction of rotation: single direction, bi-direction(optional)
Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to passing.
Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.
Light indicator: direction indicating
Working environment: indoor, outdoor(with a tent over)
Power supply: AC220V 50Hz or AC110V 60Hz
Temperature: 10degree centigrade below~60degree centigrade
Relative humidity: < 90%
Time for opening: 0.2second
Relative humidity: < 90%
Time for opening: 0.2second
Transit speed: 30 persons/min
Communication interface: standard RS485 interface, distance less than 1200metres
Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current: > 10mA
Functions:
Being compatible with serveral control devices IC , ID, magcard, bar code
Unlocking is quick and reliable.
Counting Function of the controller, LED figure display function (optional)
Memory Function attached in the controller
With standard input, output interface
Memory Function attached in the controller
With standard input, output interface
Users include:
station, port,
view spot,
exhibition,
big hall,
swimming club,
enterprise and institution,
special access and so on
view spot,
exhibition,
big hall,
swimming club,
enterprise and institution,
special access and so on
