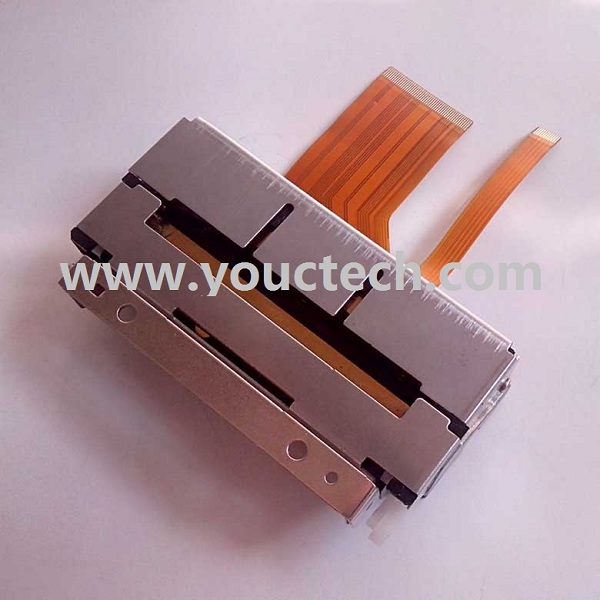

Seiko CAPD245 Thermal Printer Mechanism Analogue (YC245D)

FOB Price:	24.00 - 25.00 USD/Piece
Supply Ability:	3,000 Piece(s) per Day
Shipping:	10 days, Xiamen Port, By Air/Sea
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Other, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	ANTI STATIC PACKING, MTR BOX

Quick Details

Interface Type: None
Use: thermal
Style: Black And White
Type: thermal
Products Status: Stock
Model Number: YC245D
Brand Name: YoucTech
Max. Resolution: 8 dots/mm
Black Print Speed: 85mm/s
Max Paper Size: 58mm
Print method: Thermal dot line printing
Dots per line: 384 dots
Print width: 48mm
Paper width: 58mm
Print speed: Max. 100mm/s
Working voltage: 3.5V~8.5V
Life span: More than 50km
Cutter type: Auto cutting
Cutting life: More than 500,000 cuts
Compatible Brand: Seiko CAPD245

Specifications

Thermal Printer Mechanism Seiko CAPD245 Analogue
Low voltage supply drive
Built in auto cutter
Free jam cutter design
Printing speed max 100mm/s
Platen latch function

Seiko CAPD245 Thermal Printer Mechanism Analogue YC245D

Specifications:

Model		YC245D
Printing	Method	Thermal line dot printing
	Number of dots/line	384
	Resolution (dots/mm)	8
	Paper width (mm)	±1
	Printing width (mm)	48
	Max. Speed (mm/s)	100 (at 8.5V)
	Paper path	Curved
Detection	Head temperature	by thermistor
	Platen position	by mechanical switch
	Out of paper	by photo interrupter
	Cutter home position	by photo interrupter
Power supply (V)	Printer head
	Dynamo	3.5 ~ 8.5
	Logic voltage	2.7~ 5.25
	Auto cutter	3.5 ~ 8.5
Auto cutter	Method	Slide type
	Paper thickness (um)	54~80
	Cutting type	(leave center point)
Life span	Pulse activation (pulse)	100 million
	Abrasion resistance (km)	50
	Auto cutter	500,000 cuts
Working temperature℃)		0~50
Working humidity (RH)		20% ~ 85%
Storage temperature (℃)		-20～60
Storage humidity (RH)		5%～95%
Weight (g)		Approx. 120
Dimension (WxDxH mm)
Compatibility		Seiko CAPD245
