FXT Technology Co., Limitd.
China Manufacturer with main products: 5.8ghz Tx Rx Modules, Fpv Video Transmitter Receiver, Mini HD Camera Module, WiFi Products |
Home
>Products Catalog > FPV Transmitter Receiver > FXT Mini 5.8GHz FPV 600mw 32ch video transmitter for Lumenier QAV250 Mini FPV Racing Quadcopter

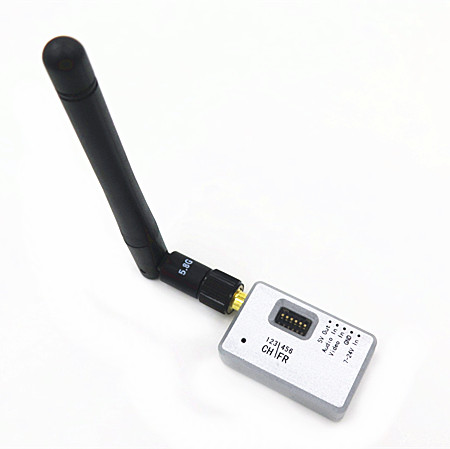

FXT Mini 5.8GHz FPV 600mw 32ch video transmitter for Lumenier QAV250 Mini FPV Racing Quadcopter
| FOB Price: | 1.00 - 35.00 USD/Piece |
|---|---|
| Supply Ability: | 200 Piece/Pieces per Day |
| Shipping: | Within 7 working days |
| Payment Terms: | T/T, Western Union, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Neutral white box packing |
Quick Details
- Model Number: FX718-6
- Brand Name: FXT
- Type: FPV transmitter
- Input voltage: 7V-24V
- Output power: 26-28dB
- Video system: NTSC/PAL
- Dimension: 40mmx20mmx8mm
- Weight: 10grams
- Application: For video transfer
Specifications
FXT Mini 5.8GHz FPV 600mw 32ch video transmitter for Lumenier QAV250 Mini FPV Racing Quadcopter
2. Please use the tx at open area to avoid kinds of interferences to let the tx performing better.
3. Before the transmitter connect with the power supply, please set up the antenna with tx at first avoiding burnt-out hazard.
4. Please cut off the power supply before you change the antenna or screw off the antenna
Features:
1. Micro sized, lightweight(10g)and durable.
2. 32 channels ,Cover A, B, E bands and F band (Airwave band)
3. Universal video transmitter for all , compatible with various kinds of remote control toys(RC helicopter,RC quadcopter,RC airplane and RC boat etc)
4. Transmitting range>~2000m (open area)
Specifications
Items
Modulate
Wideband FM Modulate
Video Format
NTSC/PAL
Output Impedance
50 Ohm
Output Power
26-28dBm
Channel
32 CH (5645Mhz-5945Mhz)
Operating Voltage
7V-24V
Supply Current
190mA
Operating Temperature
-10~85°C
Video Band Width
0~8.0 MHz
Audio Carrier Frequency
6.5 MHz
Video Input Level
0.8~1.2 Vp-p
Video Input Impedance
75 Ohm
Audio Input Level
0.5~2.0 Vp-p
Audio Input Impedance
10K Ohm
Connector
SMA Female (outer hole), RP-SMA Female (outer needle)
Antenna Connector
SMA Male (Inner needle), RP-SMA Male (Inner hole)
Dimension
40mm x 20mm x 8mm
Weight
10g
The 600mw TX packs mini 600mW of ultra clean 5.8GHz power in a micro sized video audio transmitter! A must have for those looking to save size and weight while still getting good performance. The FX718-6 support full range of 32 channels and only weighs 10g. It's perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350 and more!
Warm tips:
1. The power supply for the transmitter is 7-24V
