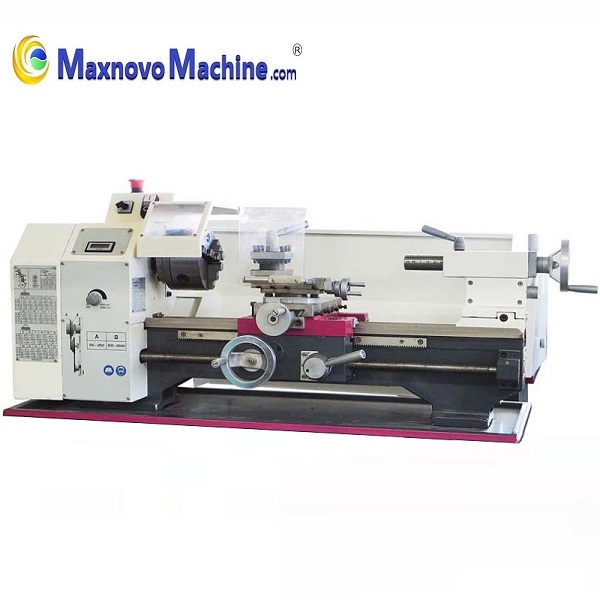

Deluxe 10" X 22" inch Digital Speed Display Metal Mini Lathe (Item NO: MM-TU2406V)
| Supply Ability: | 3,000 Unit/Units per Quarter |
|---|---|
| Shipping: | Within two weeks |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Export type wooden case |
Quick Details
- After-sales Service Provided: Overseas third-party support available
- Certification: CE, ISO9001
- Weight: 165 KGS
- Dimension(L*W*H): 1380 X 580 X 580 mm
- Power(W): 750 W / 1100W
- Voltage: 240V or 380V
- Model Number: MM-TU2406V
- Brand Name: Maxnovo Machine
- Max. Swing Diameter: 250 mm
- Automatic Grade: Semi-Automatic
- CNC or Not: Normal
- Type: Horizontal
- Condition: New
- Max. Swing Over bed :: 250 mm (diameter)
- Distance Between Centers :: 550 mm
- Spindle Taper :: MT 3
- Tailstock Taper :: MT 2
Specifications
Main Feature :
Convincing Arguments: Quality, Efficiency and Price
- Stable Value
- Powerful motor and mostly constant torque delivery
- Speed change easily adjustable via potentiometer
- Guaranteed true running accuracy of the spindle nose of better than 0.009 mm
- True running accuracy-Lathe chuck better than 0.05 mm
- Precise manufacturing
- Hardened and ground bed guide ways
- Comprehensive accessory
- Acceptance certificate
- With leading spindle for threading or automatic longitudinal turning
- Right/left handed rotation switchable on the control panel
- Rolled trapezoid spindles
- Emergency-Stop push button and low-voltage release
- Certificate of Original (CO, FORM A, FORM E, FORM F)
As a professional machine manufacturer, We have full sincerity to look for good distributor, wholesaler or agent in customers' local country to cooperate with us to enlarge business share together. Please visit our company website then to send your enquiry to us to get the direct factory best competitive price immediately, it is only for you !
Technical Data :
|
Product Name : |
Deluxe 10 X 22 inch Digital Speed Display Metal Mini Lathe
-Variable Speed and All steel helical gears -Built and Tested to DIN 8606 Lathe Standards |
|
Product Item : |
MM-TU2406V |
|
Distance Between Centers : |
550 mm |
|
Max. Swing Over bed : |
250 mm (diameter) |
|
Spindle Bore : |
21mm (diameter) |
|
Centre Height : |
125 mm |
|
Bed Width : |
135 mm |
|
Range Of Spindle Speed : |
150-2500 RPM |
|
Number Of Steps : |
Stepless Variable, Electronically Adjustable Speed |
|
Spindle Seat : |
52 mm (diameter) |
|
Spindle Taper : |
MT 3 |
|
Tailstock Taper : |
MT 2 |
|
Travel Top Slide : |
75 mm |
|
Travel Cross Slide : |
120 mm |
|
Tailstock Sleeve Travel : |
70 mm |
|
Quadruple Tool Holder Seat : |
14 X 14 mm |
|
Threads Metric Pitches : |
0.4 – 3.5 mm |
|
Threads Imperial Pitches: |
8 – 44 TPI |
|
Voltage : |
240V or 380V |
|
Frequency : |
50 HZ or 60 HZ |
|
Main Motor : |
750 W / 1100W |
|
Gross Weight : |
165 KGS |
|
Packing Size : |
1380 X 580 X 580 mm |
|
Standard Accessory : |
Digital Speed Display; Three Jaw Chuck 125 mm (diameter) ; Steady Center MT2 and MT3 ; Splash Board and Chip Tray ; Complete Metal Change Gears ; Quadruple Tool Holder ; Tools and Tool Box ; |
