Yueqing Heyi Electrical Co., Ltd.
China Manufacturer with main products: Energy Meter, Power Capacitor, Voltage Regulator, Post Insulator, Power Factor Correction, Socket Meter, Meter Seal, Filter Reactor |
Home
>Products Catalog > surge arrester > 80ka 4pole surge arrester lightning arrester Protector Surge Arrester Transient Voltage

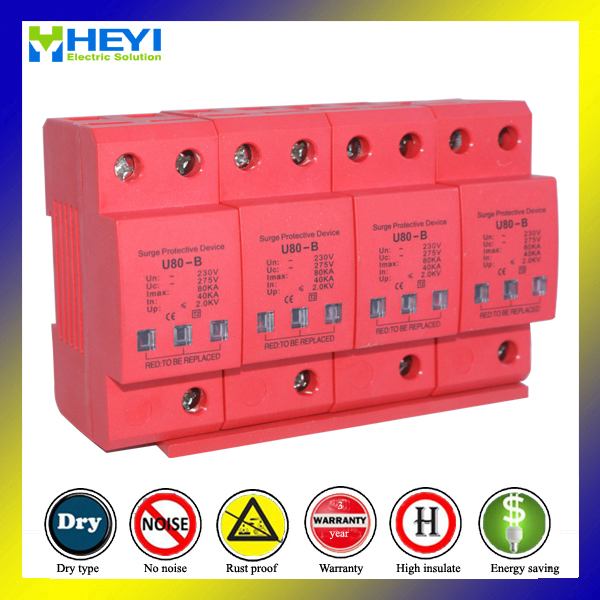

80ka 4pole surge arrester lightning arrester Protector Surge Arrester Transient Voltage
| FOB Price: | 72.40 - 72.60 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | 30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 1. Inside foam package ,outside strong paper package 2.40pcs/per CTN 3. G/N.W: 20/19kg |
Quick Details
- Model Number: LY1-80KA 4P
- Brand Name: HEYI/OEM
- Model Number: U80-B
- Release Electric in Ka: 40ka
- Short Circuit Current Imax: 80ka
- Continue Over Voltage: 420V
- Protection Class: Class II
- Protect Type: Phase -Nature -Phase -Ground
- Function: Over Voltage Protection
- IEC Standard: IEC61643-1
- Color: Yellow or Red or Grey
- Sample Time: 5 Days
Specifications
U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor
Electric ratings: 230/400V, AC50/60Hz, 3-phase;
Application: Protect electric system and on-loading
electrical apparatus from thunder and instantaneous over-voltage;
Standard: IEC/EN 61643-1
Number of poles: 1, 2,3, 4;
Electric ratings: 230/400V, AC50/60Hz;
Application: Protect electric system and on-loading
electrical apparatus from thunder and instantaneous over-voltage;
Electric ratings: Single phase power distribution and control system of AC50/60Hz, 230V;
Short circuit current: up to 10kA (8/20μs);
Application: Protect electric system and on-loading
electrical apparatus from lightening and instantaneous over-voltage;
1. plug in/out style surge protective device
2. the color of visible window shows operating status
3. double protection of over-heat and over-current
4. have the accessory of remote signaling interface,could be remote control
U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor Specification
| Techinical parameters | model U80-B | ||||||||
| Rated operating voltage Un(V~) | 220V 275V | 380V | 220V 275V | 380V | 220V 275V | 380V | |||
| Maximum continuous operating voltage Uc(V~) | 275V | 385V | 420V | 275V | 385V | 420V | 275V | 385V | 420V |
| Voltage protection level up(V~) KV | ≤1.8 | ≤2.0 | ≤2.2 | ≤2.0 | ≤2.2 | ≤2.4 | ≤2.2 | ≤2.5 | ≤2.5 |
| Maximum discharge current Imax(8/20μs)KA | 30 | 40 | 60 | ||||||
| Nominal discharge current In(8/20μs)KA | 60 | 80 | 100 | ||||||
| Response times | <25 | ||||||||
| Operating Environment °C | -40°C~85°C | ||||||||
| Relative humudity | ≤95% | ||||||||
| Installation | standard rail 35mm | ||||||||
| Material of outer covering | Fiber glass reinforced plastic | ||||||||
U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor advantage
1.20 years global leading profession manufacture of electrical products surge arrester
2. No power pollution
3.The protection of large flow, low residual pressure, fast response time;
4.Using the latest extinguishing technology, completely avoid the fire;
5.The temperature protection circuit, built-in thermal protection;
6.With power indicator, indicating working state of surge protector;
7.structured, stable and reliable.
8.OEM is warmly welcome
9.Convenient : 45 minutes to wenzhou airport
U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor using range
1.DC power distribution panel;
2.DC power supply equipment;
3.The DC power distribution box;
4.Electronic information system cabinet;
5.Two times the output end of the power supply equipment.
6.The signal protection: low frequency signal protection, high-frequency signal protection, antenna protector etc..
U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor Packing information
1. Inside foam package ,outside strong paper package
2.40pcs/per CTN
3. G/N.W: 20/19kg
4. We can packing as your required,good looking design
Why choose U80-B 275V 385V 420V 80KA 4pole Surge Protector Surge Arresters Transient Voltage Surge Suppressor
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 12 Hours
5)8000 square meters work environment
